PRIMERGY RX300 S2 User’s Guide
3
OS Installation Using ServerStart
3.1.3 RAID wizard
Configure RAID.
1 Click [RAID Wizard: Setting for the RAID system].

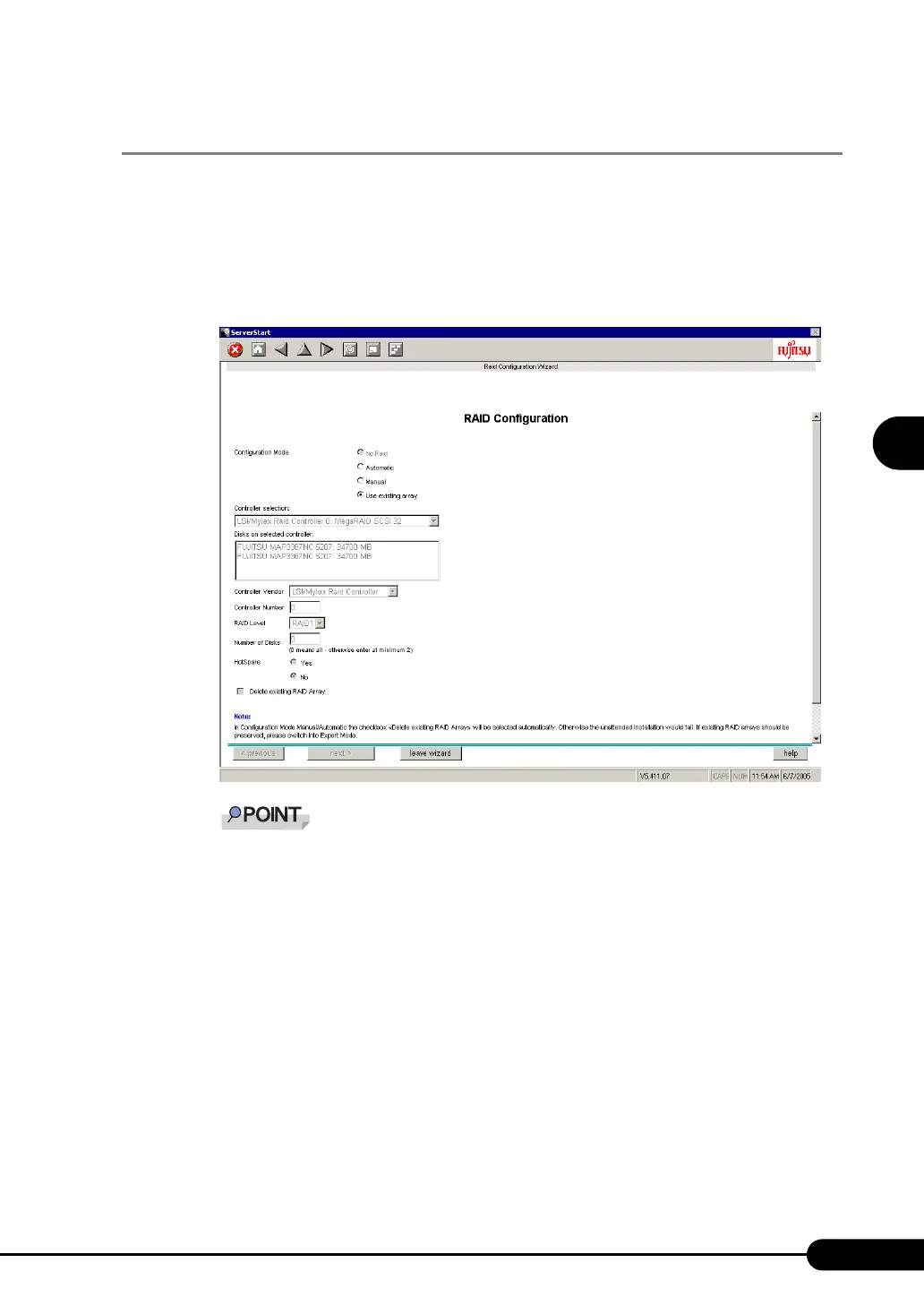

The [RAID Configuration] window appears.
Only array controllers already installed are displayed.
The number of hard disk units connected to the array controller is displayed.
If you open a configuration file that has been created before, displayed settings may differ from
the previously set values. Be sure to check the settings.
One hot spare (standby disk) can be configured. However, it cannot be set for RAID0. When
the hot spare disk is set to "Use", set the number of disk units to the number of installed disk
units minus 1.
E.g.: When four hard disk units are installed, set the RAID level to "RAID5", and when the hot
spare disk is set to "Use", set the number of disk units to "3".
2 Set items and click [leave wizard].
The RAID wizard closes.
