Fujitsu PRIMERGY TX150 S6

TX150 S6 Options Guide 107
Appendix Cabling

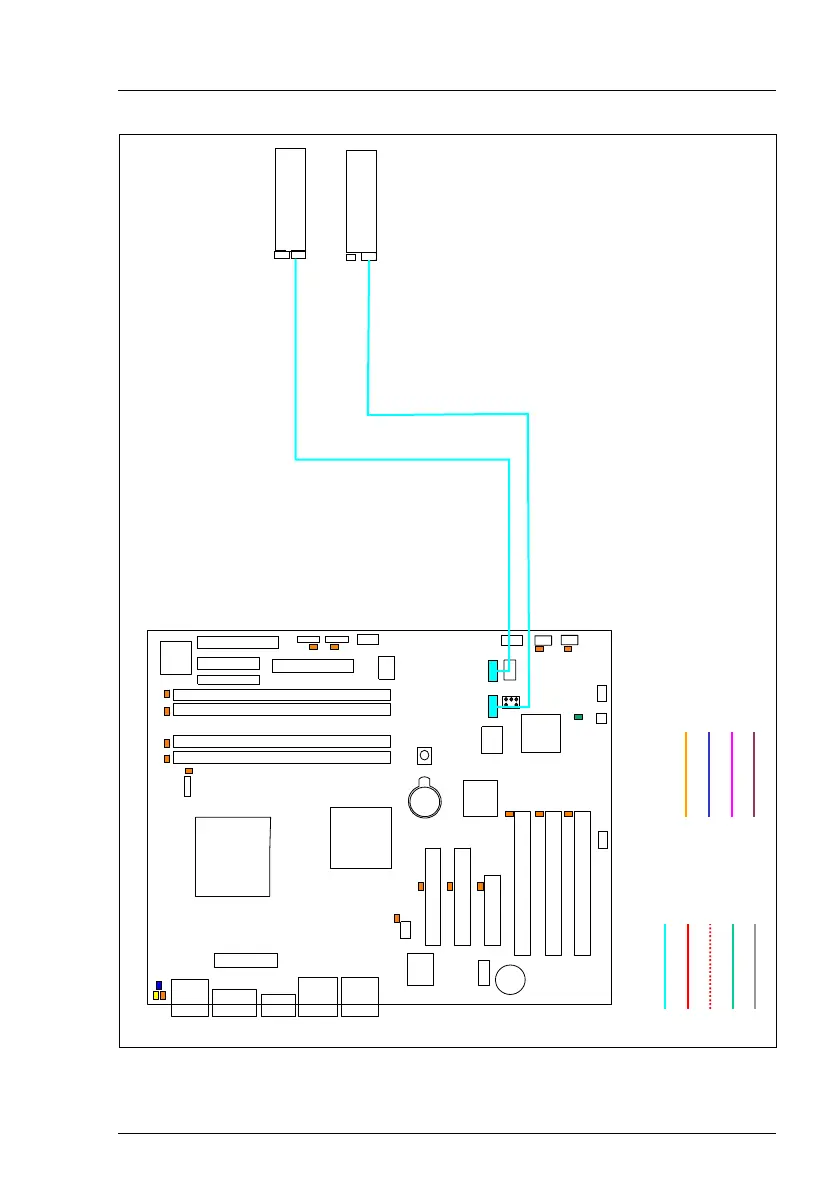

Figure 91: Cabling - 2x SATA optical drives
Cable prefix: T26139-
Power SATA
ATA 100
Legend:
Slot 3
CPU
iRMC
Battery
Slot 4 Slot 5 Slot 6
Super I/O
MCH
RAID key
Slot 2 Slot 1
CSS button
Adapter
SAS
IDE/FD Data I²C
USB
1st optical drive (top)
Y3958-V203
CH 0
2nd optical drive (middle)
Y3958-V203
