Fujitsu PRIMERGY TX150 S6

106 Options Guide TX150 S6
Cabling Appendix

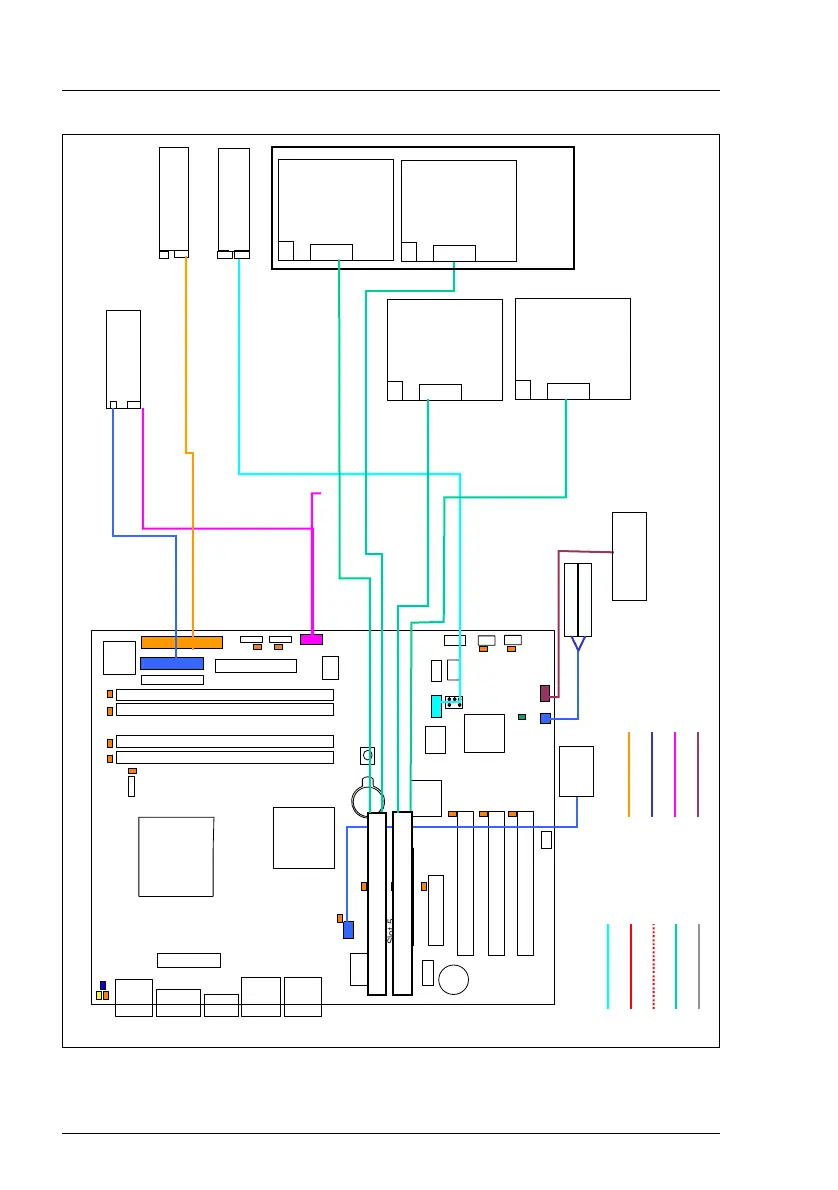

Figure 90: Cabling- data, USB, I
2
C, 2.5“ hard disks, 2.5“ hard disks extension box
Cable prefix: T26139-
Power SATA
ATA 100
Legend:
Slot 3
CPU
iRMC
Battery
Slot 4 Slot 5 Slot 6
Super I/O
MCH
RAID key
Slot 2 Slot 1
CSS button
Adapter
SAS
IDE/FD Data I²C
USB
Floppy (optional) Optical drive (top)
HD 1-4
SAS/SATA Bpl
2.5”
A3C40086493
X6 X1
IDTemp Combo A3C40078709
Intrusion sw.
Intrusion sw.
System fan
Y3736-V1
Y3718-V5
Y3963-V101
Y3963-V103
Y3958-V203
Y1248-V8
Y3904-V101
Y2603-V7
SAS RAID controller 2-channel
HD 5-8
SAS/SATA Bpl
2.5”
A3C40086493
X6 X1
CH 0
CH 1
Y3963-V101
HD 1-4
SAS/SATA Bpl
2.5”
A3C40086493
X6 X1
HD 5-6
SAS/SATA Bpl
2.5”
A3C40086493
X6
X1
HD extension box
SAS RAID controller 2-channel
CH 0
CH 1
Y3963-V103
Operating panel A3C40038243
