TX150 S6 Options Guide 51
ServerView Local Service Panel Installing a LSP

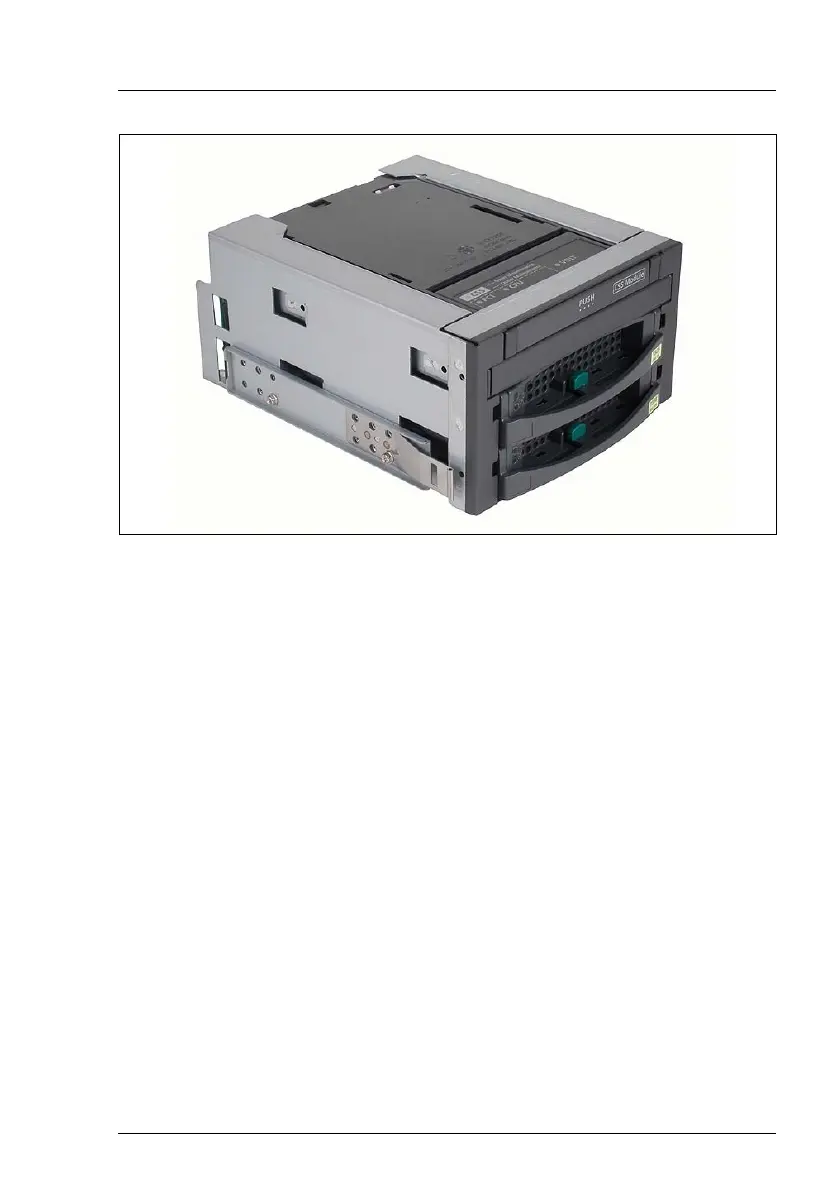

Figure 34: Installing the ServerView Local Service Panel
Ê Push the ServerView Local Service Panel from the front side into the bay.
Ê Push the hard disks extension box fully into the bay until the EasyClick rails
lock in place.
Ê Connect all cables to the rear side of the hard disks extension box (see the
cabling plans in the Appendix).
Ê Connect the data cable with the ServerView Local Service Panel and the
connector X3 in the operating panel module (see the cabling plans in the
Appendix).
Ê Attach the front cover or rack front cover, close the server, connect it to the
power outlet, and switch it on as described in the chapter “Completion” on
page 85 et seq..
