Installing a LSP ServerView Local Service Panel
Installing in multibay
Ê Open the server as described in the chapter “Preparation” on page 21 et
seq..
Ê Disconnect all cables at the rear side of the multibay. Notice the cabling.
Ê Press inward on the two metal tongues of the EasyClick rails until the locking
mechanism disengages.
Ê Remove the multibay from the bay.

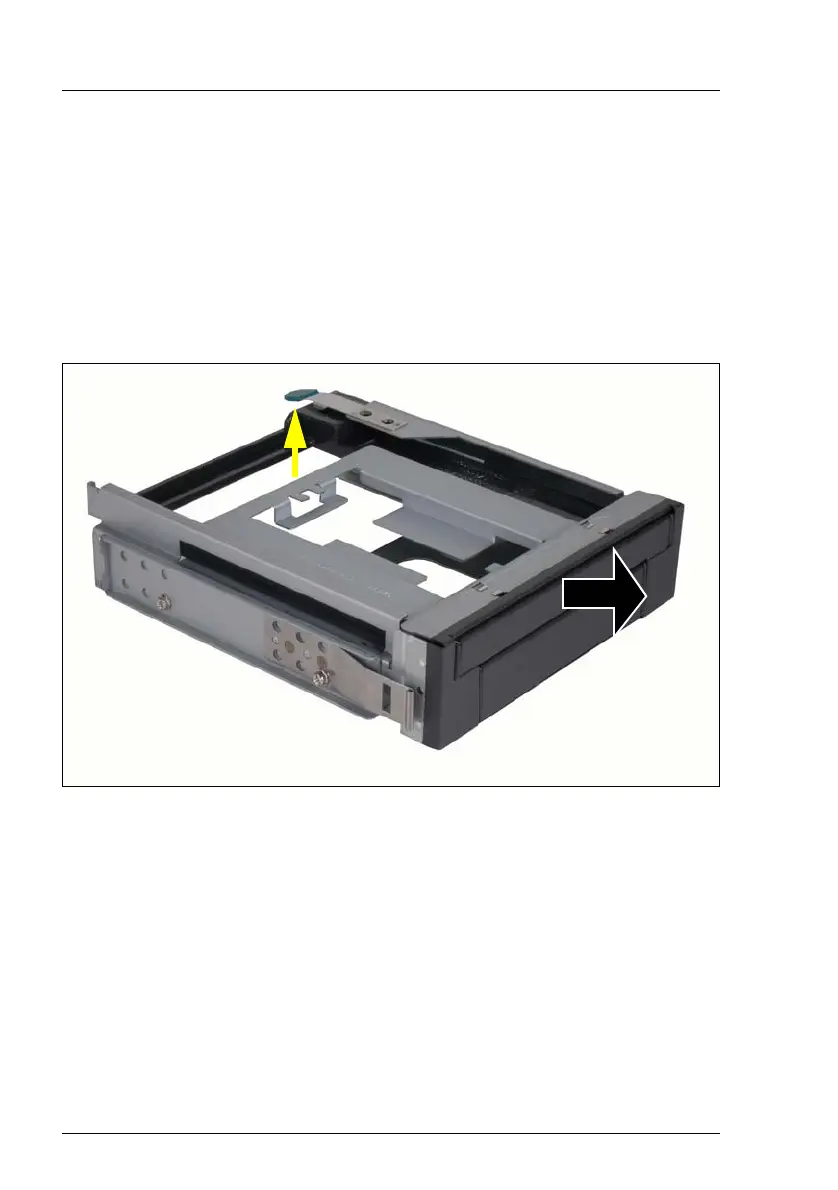

Figure 35: Removing the dummy cover
Ê Push the dummy cover from the inside out of the bay frontward.
V CAUTION!
Keep the dummy cover in a safe place. If you remove the ServerView
Local Service Panel again and do not replace it with a new one, the
dummy cover must be reinstalled to comply with EMC regulations and to
satisfy cooling requirements and fire protection measures.
