TX150 S6 Options Guide 73
Conversion standard PS to hot-plug PS

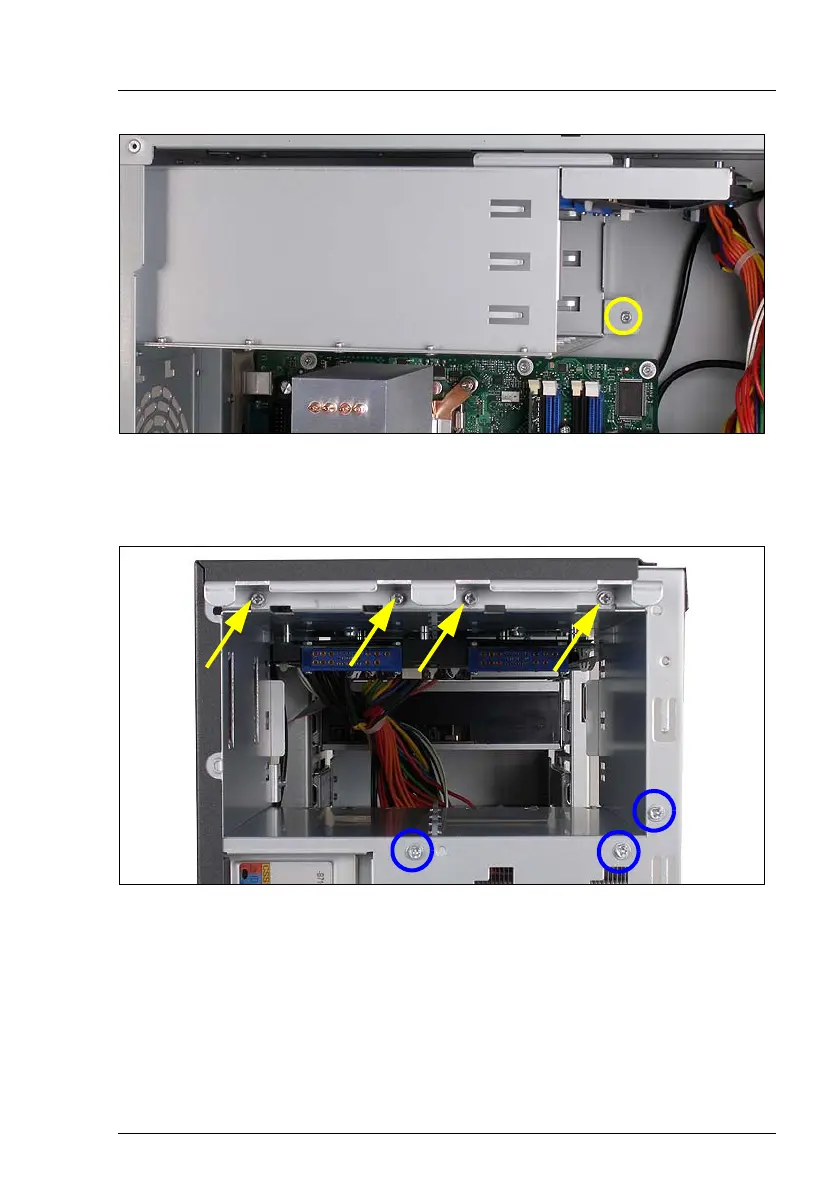

Figure 56: Fastening the PS cage in the housing
Ê Fasten the PS cage in the housing with one screw M3x4.5 mm (see the
circle).
Figure 57: Fastening the PS cage at the rear side
Ê Fix the locking rail with four screws (see the arrows) on the rear side of the
server.
Ê Fasten the PS cage with three screws M3x4.5 mm (see the circles) at the
rear side.
Ê Disconnect all power cables from the system board and the drives (see the
cabling plans in the Appendix).
