74 Options Guide TX150 S6
Conversion standard PS to hot-plug PS

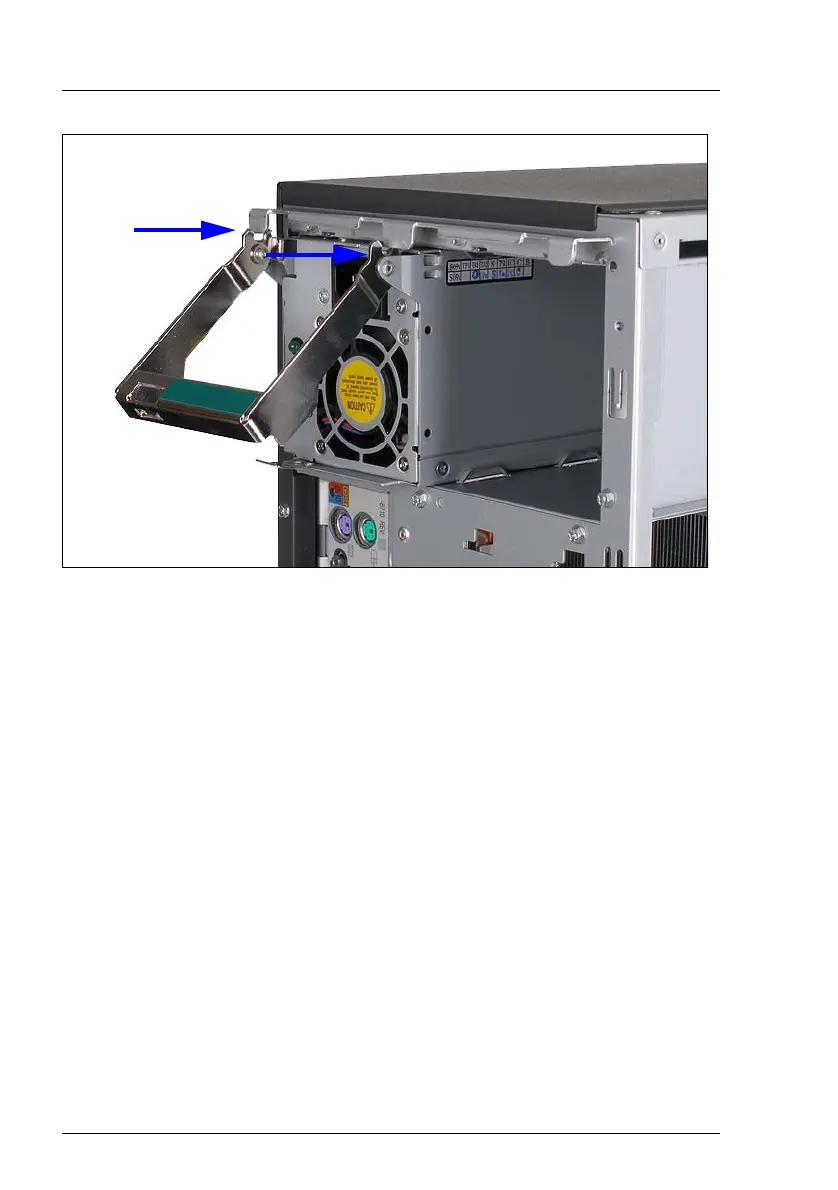

Figure 58: Inserting the power supply module
Ê Push the power supply module in the left side (floorstand model) or bottom
side (rack model) bay.
Ê Lift the green handle somewhat upwards so that the forked levers (see the
arrows) can fit to the locking rail.
