Fujitsu PRIMERGY TX150 S6

TX150 S6 Options Guide 99
Appendix Cabling

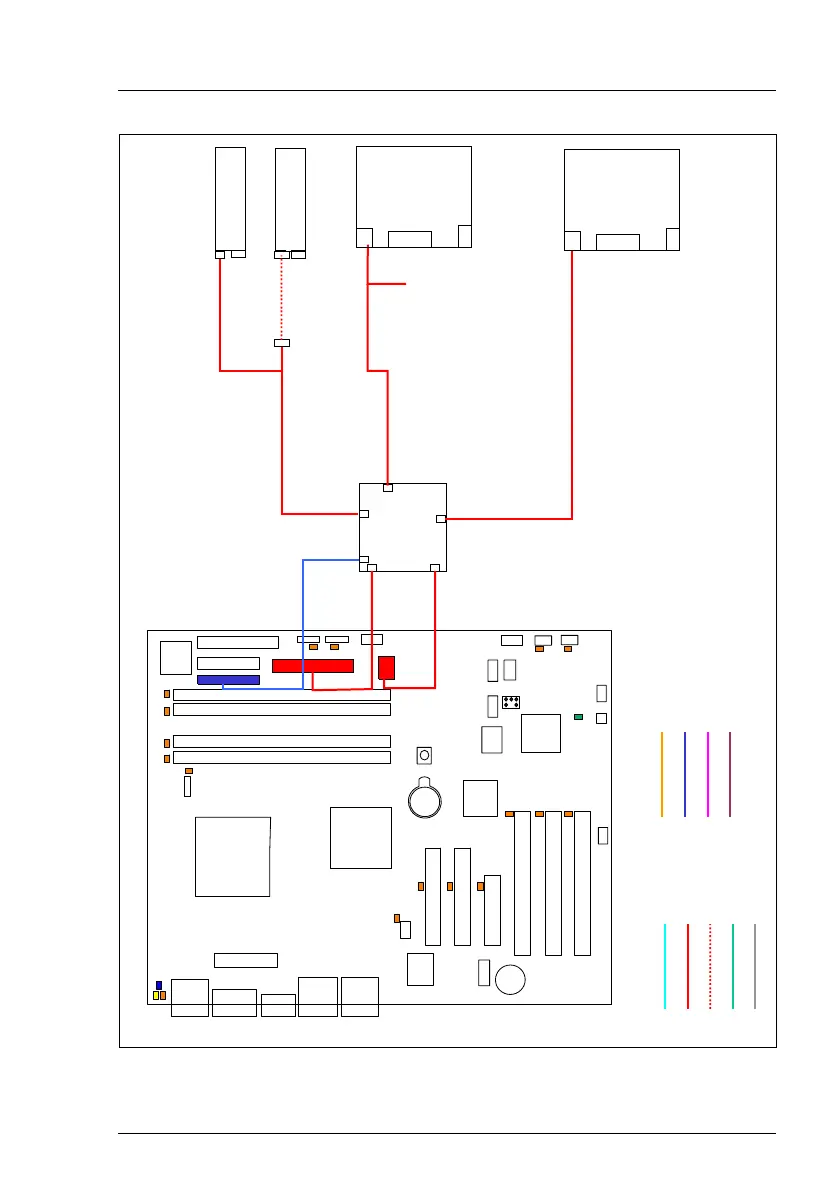

Figure 83: Cabling - hot-plug PS, 3.5“ hard disks, 3.5“ hard disks extension box
Cable prefix: T26139-
Power SATA
IDE/FD
ATA 100
Legend:
Data I²C
Slot 3
CPU
iRMC
Battery
Slot 4 Slot 5 Slot 6
LAN
Super I/O
MCH
RAID key
Slot 2 Slot 1
CSS button
Adapter
SAS
USB
<- P9
Floppy (optional) Optical drive (top)
PSU E483-V50
<- P1 <- P8
P5 ->
P4 ->
P6 ->
HD 1-4
SAS/SATA Bpl
3.5”
A3C40070504
X9 X1
X11
Y3930-V101
P2 ->
P3 ->
HD 5-6
SAS/SATA Bpl
3.5”
A3C40069429
X5 X1
X7
HD extension box
