Fujitsu STYLISTIC Q736 User Manual

Appendix
**
*

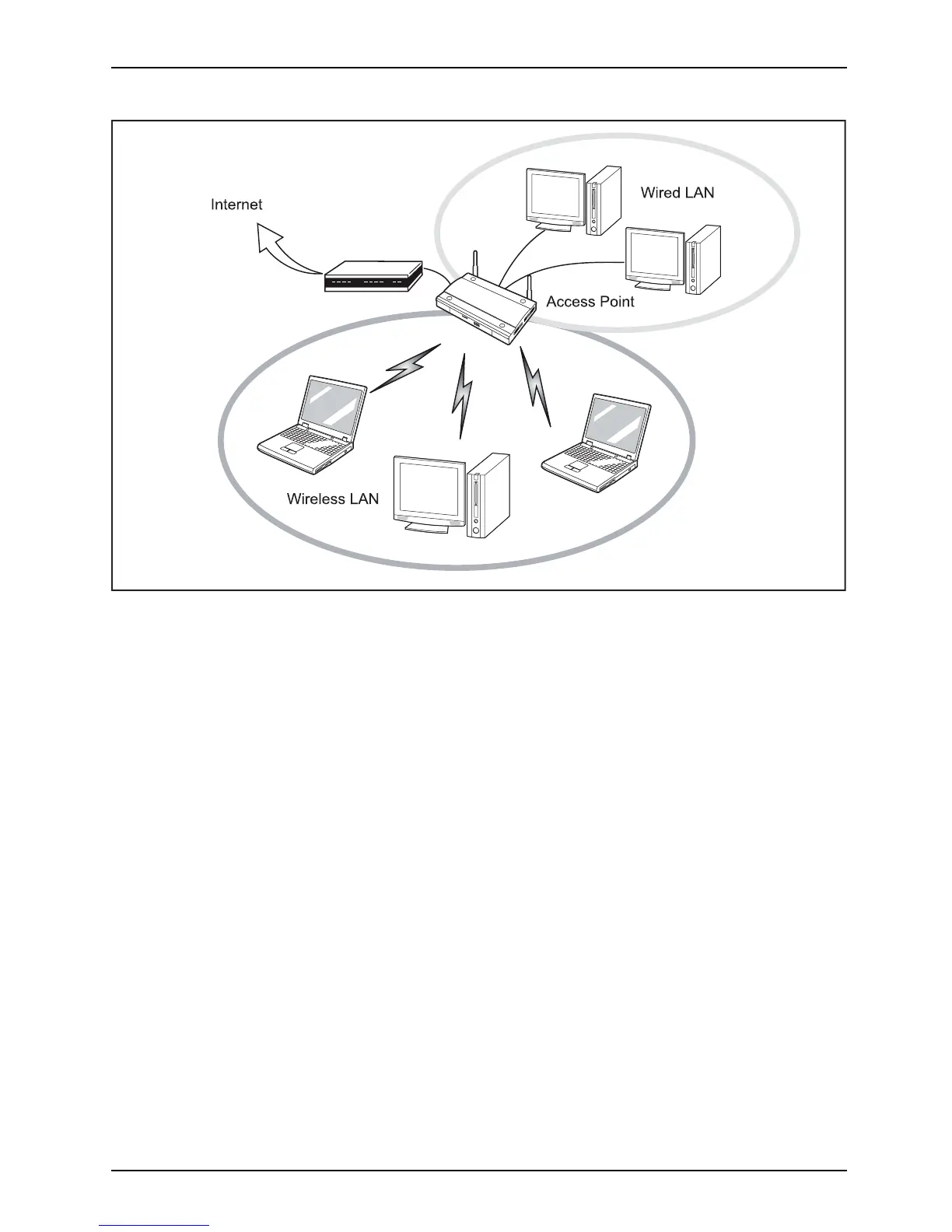

* = An optional hub for a wired LAN may
be required depending upon the type
of access point used.
** = ADSL modem, cable modem, or similar
How to Han dle This Device
The WLAN device is an optional device that may come pre-installed in your mobile computer. Under
normal circumstances, it should not be necessary for you to remove or re-install it. The Ope rating
System that your mobile computer comes with has been pre-configured to support the WL A N device.
• Integrated Intel Centrino wireless LAN devices support IEEE802.11a,
IEEE802.11b, IEEE802 .11g, and IEEE802.11n .
• The WLAN device operates in the 2.4 GHz ISM band and the 5 GHz
lower, middle, and upper UNII bands.
• Microwave ovens may interfere with the operation of WLAN device s since th ey operate in the
same 2.4 GHz frequency range as IEEE802 .11b/g /n devices. Interference by microwaves
does not occur with IEEE802.11a radio which operates in the 5 GHz RF band.
• Wireless devices that transmit in the 2.4 GHz ran ge may interfere with operation of WLAN
devices in IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput,
intermittent disconnects, and many frame errors. It is HIGHLY recommended that these
interfering devices be powered off to ensure proper operation of the W LAN device.
Fujitsu 115

Fujitsu STYLISTIC Q736 Specifications

General

LED backlight	Yes
Display diagonal	13.3 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display brightness	330 cd/m²
Native aspect ratio	16:9
Display number of colors	16.78 million colors
Bus type	QPI
Stepping	D1
Tjunction	100 °C
Processor code	SR2F0
Processor cache	3 MB
Processor cores	2
Processor model	i5-6300U
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor threads	4
Processor codename	Skylake
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	42 X 24 mm
Processor front side bus	- MHz
Processor boost frequency	3 GHz
Processor operating modes	64-bit
PCI Express configurations	1x4, 4x1
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Design Power (TDP)	15 W
Configurable TDP-down frequency	0.8 GHz
Internal memory	8 GB
Memory clock speed	1600 MHz
Internal memory type	LPDDR3-SDRAM
Storage media	SSD
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal storage capacity	128 GB
Graphics card	HD Graphics 520
Audio system	Realtek ALC255
Flash type	LED
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	2 MP
WWAN	Installed
4G standard	LTE
3G standards	UMTS
SIM card type	MicroSIM
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	867 Mbit/s
Mobile network generation	4G
Microphone in	No
HDMI ports quantity	0
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Device type	Tablet PC
Form factor	Slate
Product color	Black, Silver
Cable lock slot type	Kensington
Sustainability certificates	RoHS, ENERGY STAR
Certification	CE, CB, FCC Part 15 B, cUL, FCC Part 15 C, FCC Part 15 E, FCC Part 22, FCC Part 24, FCC Part 27, ICES-003 Class B, RSS-210, UL Listed, WEEE
Password protection type	BIOS, Supervisor, User
Platform	Windows
Trial software	McAfee Internet Security and Antivirus Software
Bundled software	Waves MaxxAudio Fujitsu Plugfree Network Fujitsu Anytime USB Charge Utility Fujitsu Battery Utility Fujitsu Function Manager Fujitsu DeskUpdate Microsoft Office
Battery voltage	10.8 V
Battery capacity	4250 mAh
Battery life (max)	9.6 h
Battery recharge time	2.3 h
Number of battery cells	3
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Processor ARK ID	88190
Processor socket	LGA 1356 (Socket B2)
Intel Secure Key Technology version	1.00

Weight and Dimensions

Depth	199.3 mm
Width	309.6 mm
Height	12.7 mm
Weight	990 g
