Your docking c radle (optional)
As well as fast charging, your docking cradle is a device that also a llows you to quickly connect
your Tablet PC to your peripherals, such as a m onitor, keybo ard, m ouse, etc. You only need
to dock the Tablet PC to be able to work with your peripheral devices.

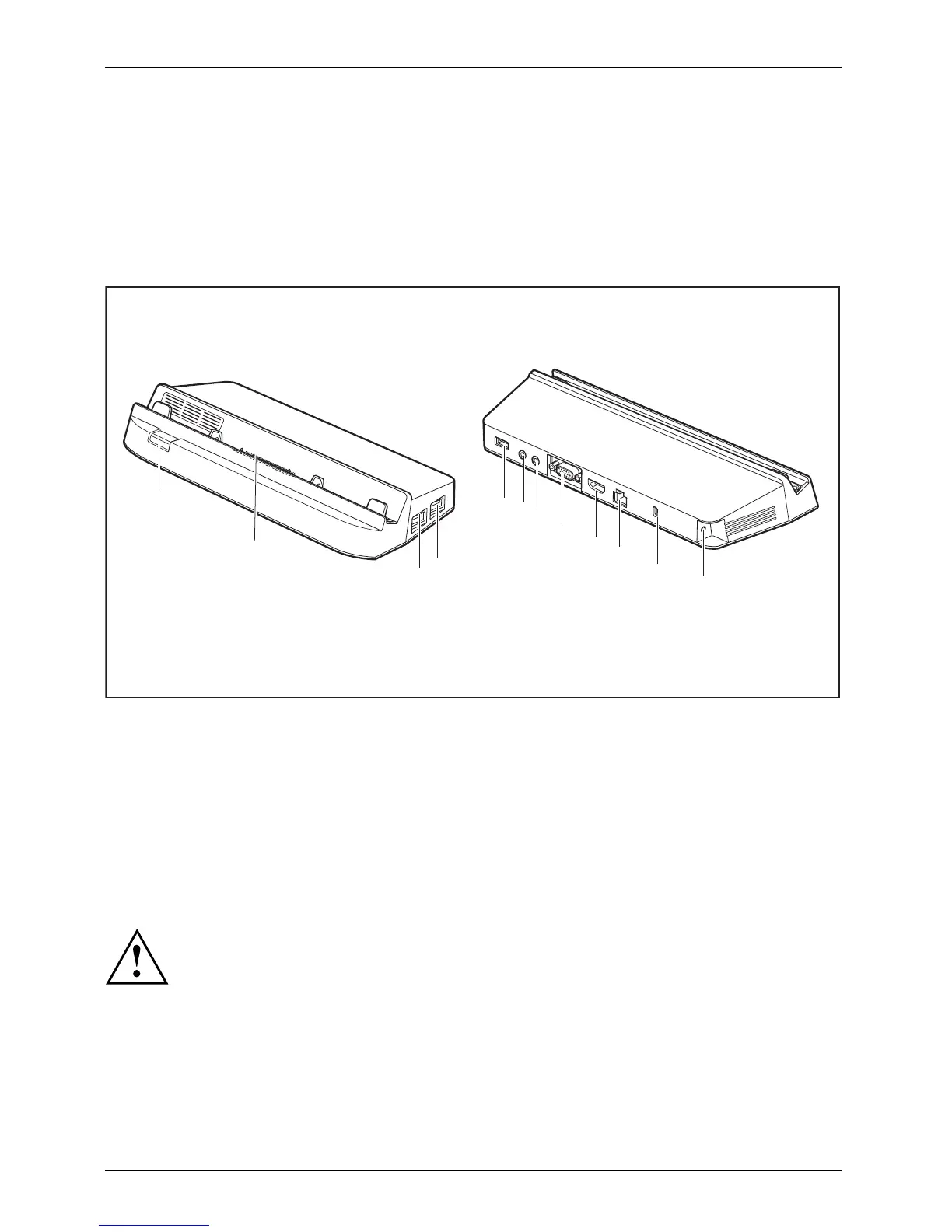

Cradle components
PortsPortsCradle
1
2
3
4
5
6
12
7
8
9
10
11
1 = Dock release button
2 = Docking port
3 = USB port 3.0
4 = USB port 3.0
5 = USB port 3.0
6 = Microphone port
7 = Headphones port
8 = VGA monitor port
9 = HDMI port
10 = LAN port
11 = Security Lo ck device
12 = DC jack socket (DC IN)
Setting up the cradle
Select a suitable location for the c rad le before setting it up. In doing
so, please follow these instructions:
• Placethecradleonafl at, stable, non-slippery surface.
• Never place the cradle or the AC adapter on a heat-sensitive surface.
• Do not expose the cradle to extreme environmental conditions.
• Protect the cradle from dust, moisture and heat.
44 Fujitsu
