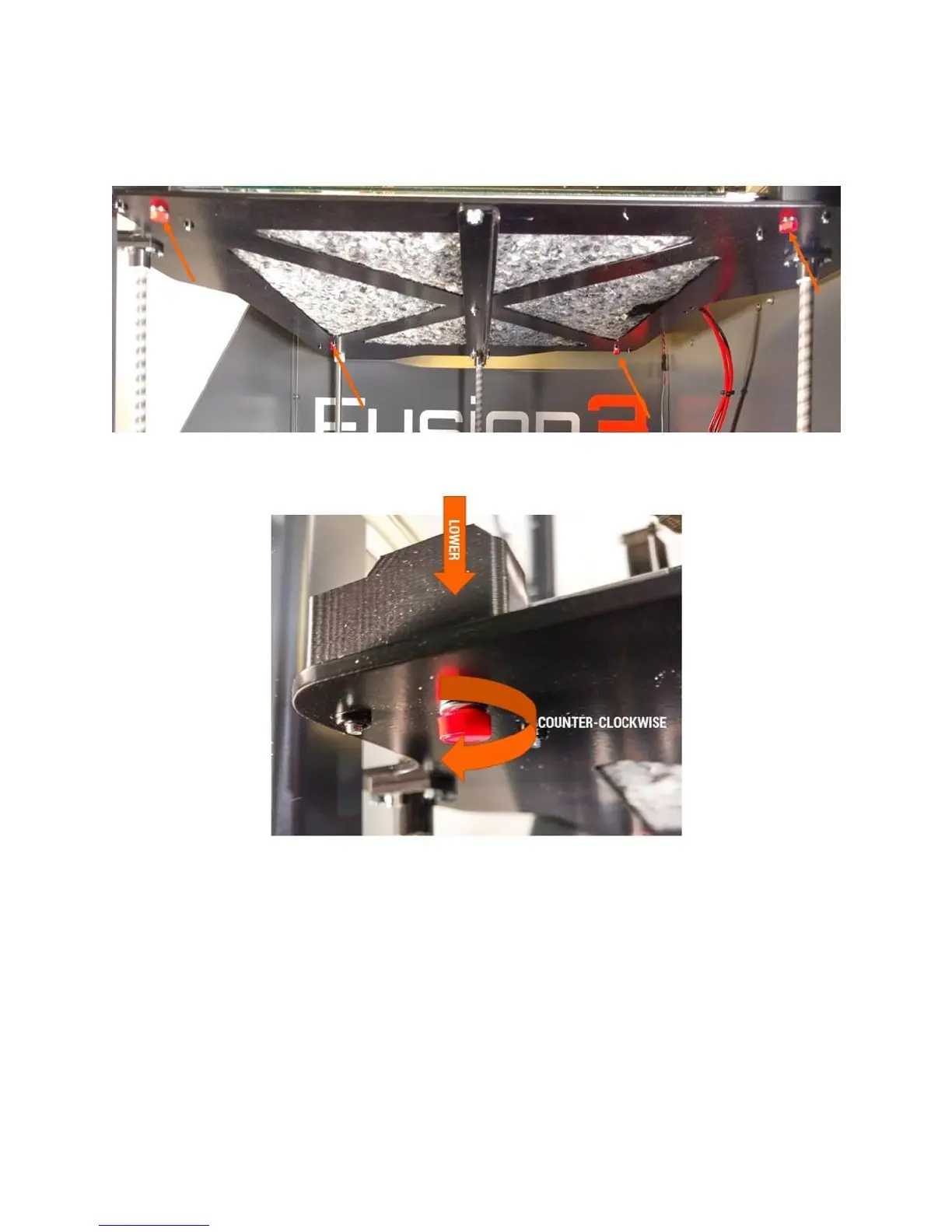

On the bottom of the bed plate you will see a small red thumbscrew at each corner of the bed. This is
used to adjust the height of the bed corner.
Turning it counter-clockwise will lower the bed corner. And turning it clockwise will raise the bed corner.
On each corner of your bed is an approximately 2” x 2.25” square of conductive foil tape. These squares
are part of the bed leveling system. Here are some guidelines for ensuring the system works optimally:
Unless you are printing a part that MUST overlap the foil (for example, a part that needs the full
14”x14” bed area), do not apply gluestick to them.
If you do apply gluestick to the foil, use a lighter coat than the rest of the bed.
Take care not to damage the edges of the foil with your part removal tool when removing parts
or cleaning the bed.
If the foil does become damaged, you can replace it (see section 12.10).
