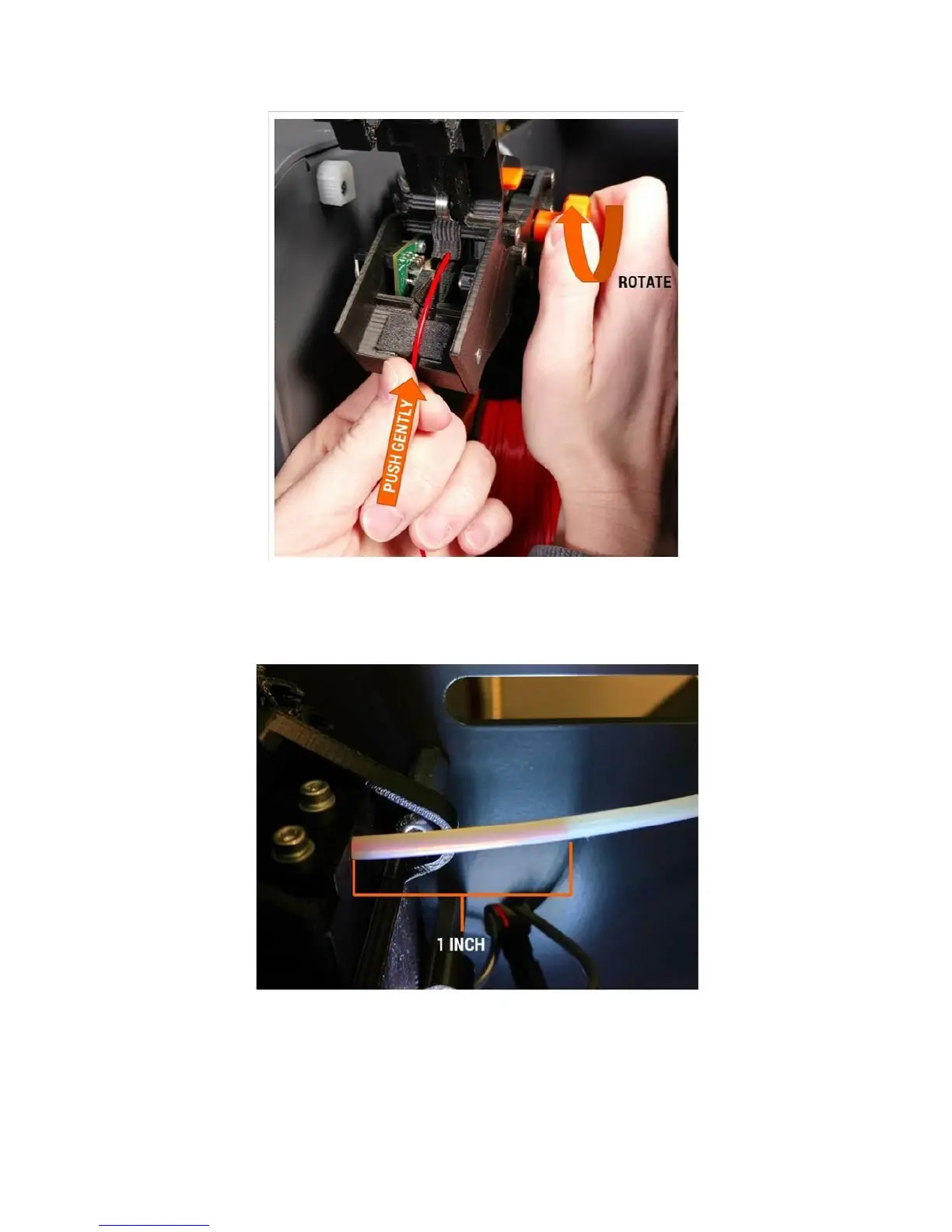

NOTE: You do not need to open the idler bar in order to load filament.
Continue to turn the wheel until you see the filament protrude into the feed tube about 1 inch.
Close the Filament Monitoring section door. You will hear a click as the latch tabs engage to indicate
it’s fully closed. When closed, the door will be flush with the body of the extruder.
