FUTABA 8FG - Stick Adjustment

17
<Before Use>
Note:
*Scroll operation: Circle your nger on the outside edge of
the RTN button. The sensors may mis-read your touch as a
reverse rotation if the circle is smaller, or performed on the
inside edge of the RTN button.
* The SensorTouch™ may not operate smoothly if your hand
is touching the surrounding case parts. As such, please
make sure that the tip of your nger is actually operating the
SensorTouch™.
*If the SensorTouch™ does not register your input, please
try again after lightly tapping your nger on the sensor once
again.
* Do not operate the SensorTouch™ with gloves worn. The
SensorTouch™ might not react.
󾻯
CAUTION
󾻫
The touch sensor might not operate by
receiving the spark noise generated from
the gasoline engine etc. In this case, please
operate your transmitter from the noise
source apart.

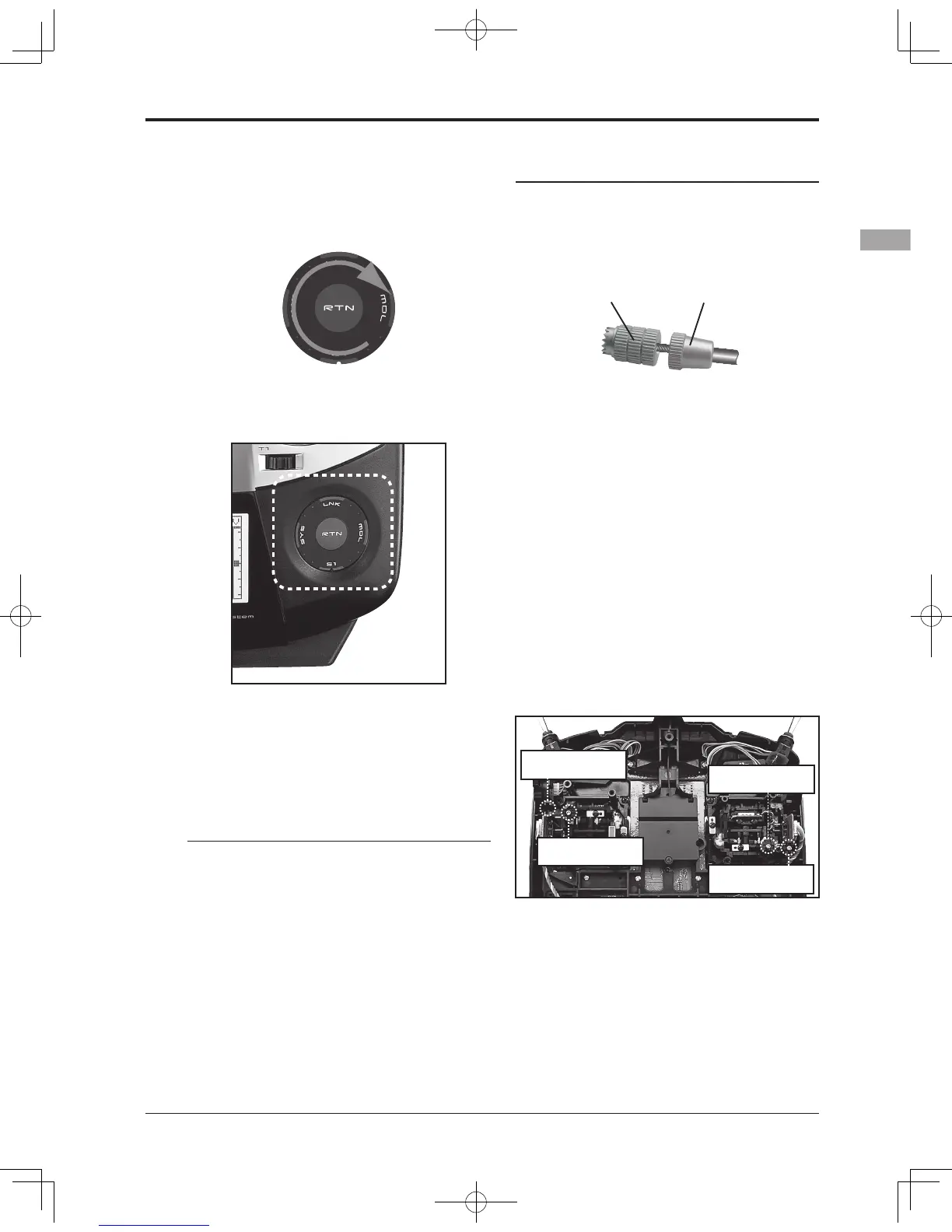

Stick Adjustment
Adjustment of the stick lever length
You can adjust the length of stick levers, as you
like. It is recommended to adjust the length of the
sticks in line with your hand size.
Lever Head
A
Lever Head
B
1. Hold the lever head "B" and turn the lever
head "A" counter-clockwise. The lock will be
released.
2. Turn the lever-head "A" clockwise as you hold
the lever-head "B" after placing it as you like.
Adjustment of stick lever tension
The tension of the self-return type stick lever can
be adjusted.
1. First, Remove the battery cover on the
bottom of the transmitter. Next, unplug the
battery wire and remove the battery from
the transmitter.
2. Next, using a screwdriver, remove the five
screws that hold the transmitter's rear case
in position, and put them in a safe place.
Gently ease off the transmitter's rear case.
Now you'll see the view shown in the figure
below.
•Stick Tension (J3)
(Mode 1)
•Stick Tension (J4)
(Mode 1/2)
•Stick Tension (J2)
(Mode 2)
•Stick Tension (J1)
(Mode 1/2)
2. Use a small Phillips screwdriver to adjust the
spring strength as you prefer by turning the
adjusting screw of the stick you want to
adjust.
*Turning the screw clockwise increases the tension.
CAUTION: If you loosen the screw too much,
the stick may not operate because it is
caught internally.
3) At the end of adjustment, re-install the rear
case.
