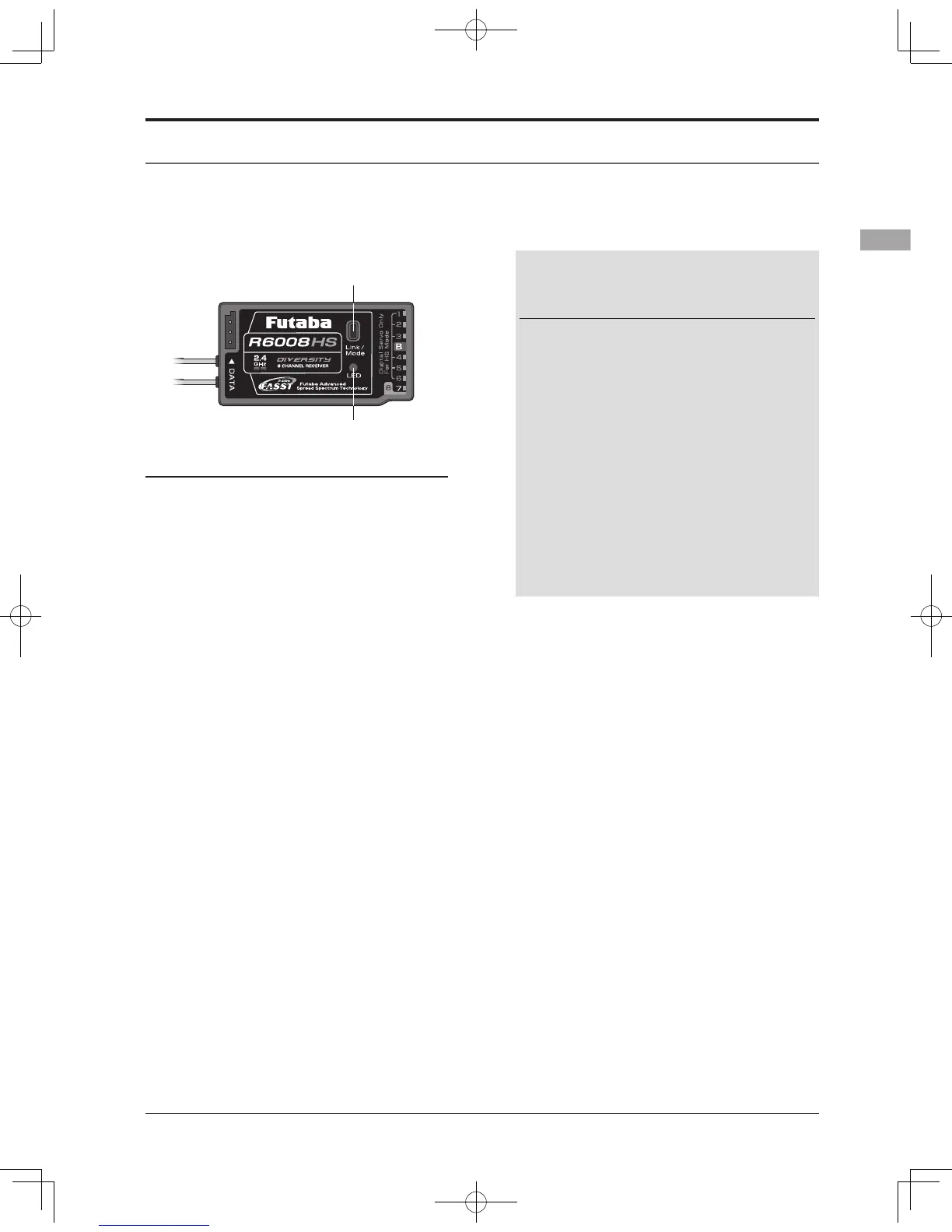

<Before Use>
LED
Link/Mode Switch
Connector
"1 through 6": outputs for the channels 1 through 6.
(Digital servo only in the High Speed mode.)
"7", "8": outputs for the channels 7 and 8.
(Analog or digital servos regardless of mode.)
"B": connector for the power.
The R6008HS has two(2) operation modes as
shown below.
Receiver Normal mode/High Speed mode
The "Normal mode" accepts any type of servos
or peripherals as the frame rate of the output is
14ms. The "High Speed mode" only accepts digital
servos for outputs from 1ch to 6ch. This includes
the BLS series, and most peripheral equipment
such as gyros and brushless ESCs. The frame rate
of the outputs is 7ms. The outputs from 7ch to 8ch
allow the use of any type of servos as the frame
rate of these outputs are still 14ms ever in the High
Speed mode.
Receiver nomenclature
Before using the receiver, be sure to read the precautions listed in the following pages.
Usage condition on "High Speed mode"
󾻯
CAUTION
󾻫
When using the R6008HS in the high speed
(HS) mode, digital servos are required for
the rst six channels (1-6).
If an analog servo is connected to one of the first
six channels when in the high speed mode, the
servo will not function properly. Additionally,
while many peripheral devices will operate in either
the high speed or normal mode, some will not. If
there are any difficulties noted, please return the
reciever's operational mode to the "Normal" mode
to determine if this resolves the difculty.
If using the R6008HS in the high speed mode,
analog servos may be used for channels seven and
eight.
(For Operation Mode Selection, see p.25)
