Manual Introductory Section

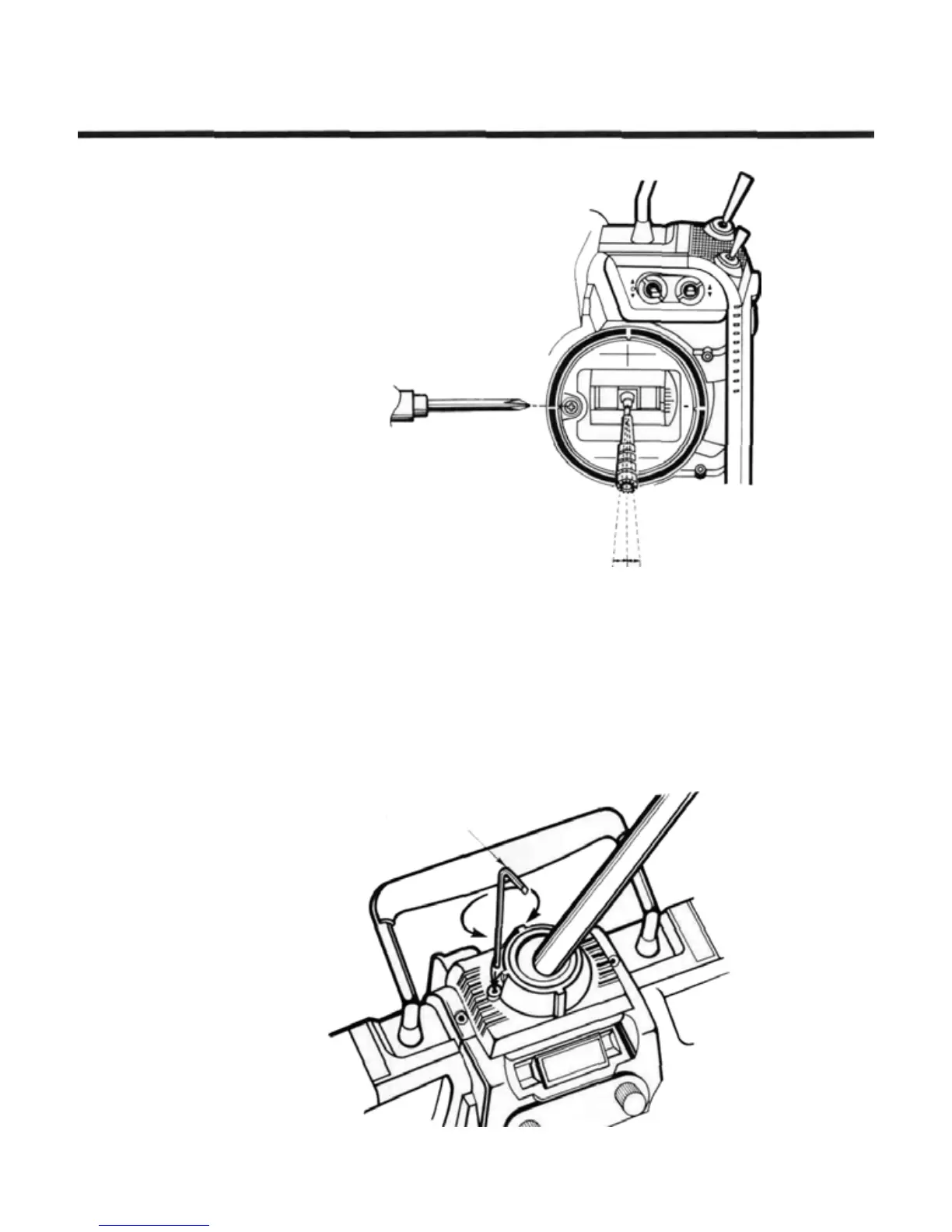

STICK ANGLE ADJUSTMENT
For the comfort of the operator, the angle of
the open gimbal sticks may be adjusted from 3 to
the inside to 4.5° to the outside of the transmitter
case. This angle is adjusted by rotating the adjust-
able screw as shown in the figure. Simply turn
adjusting screw to change the stick angle in or out.
ANTENNA ANGLE ADJUSTMENT
Your PCM 1024Z system features an antenna
that may easily be pivoted to a direction that you
like. Simply move it to the desired pointing angle.
Before collapsing the base of the antenna into the
transmitter, return it to the straight-up position. If
the antenna is tilted, it will not fit into its housing.
The force required to pivot the antenna may be
easily adjusted. If the antenna movement is too
tight,
collapsing
into
the
case
will
be
difficult.
Use the supplied hexagon wrench to adjust the
resistance to movement. Clockwise tightens,
counterclockwise loosens.
Manual Introductory Section, Page 20
