System Section
SETTING THE FREQUENCY SYNTHESIZER RECEIVER
The following procedure should be followed in
order to change the receiving frequency on a syn-
thesized receiver.
First, turn off receiver power. Next, open the
receiver's dust cover by sliding in the direction
shown by the arrow in the figure. Set the channel
number by moving the two rotary switches to the
desired frequency numbers. For example, to set
channel 20, set the left switch to 2 and the right
switch to 0. When setting is complete, close the
dust cover.
When the receiver is turned on, the frequency
set by the rotary switches is used by the receiver.
If the switch is changed during operation, the
changes will be ignored until the receiver is power-
ed down and later turned on, at which time the
new frequency will be used.
Fifty frequencies, from Channel 11 to 60
(72.010 to 72.990 MHz) can be set. If a channel
outside this range is set, the receiver will default to
Channel 11.

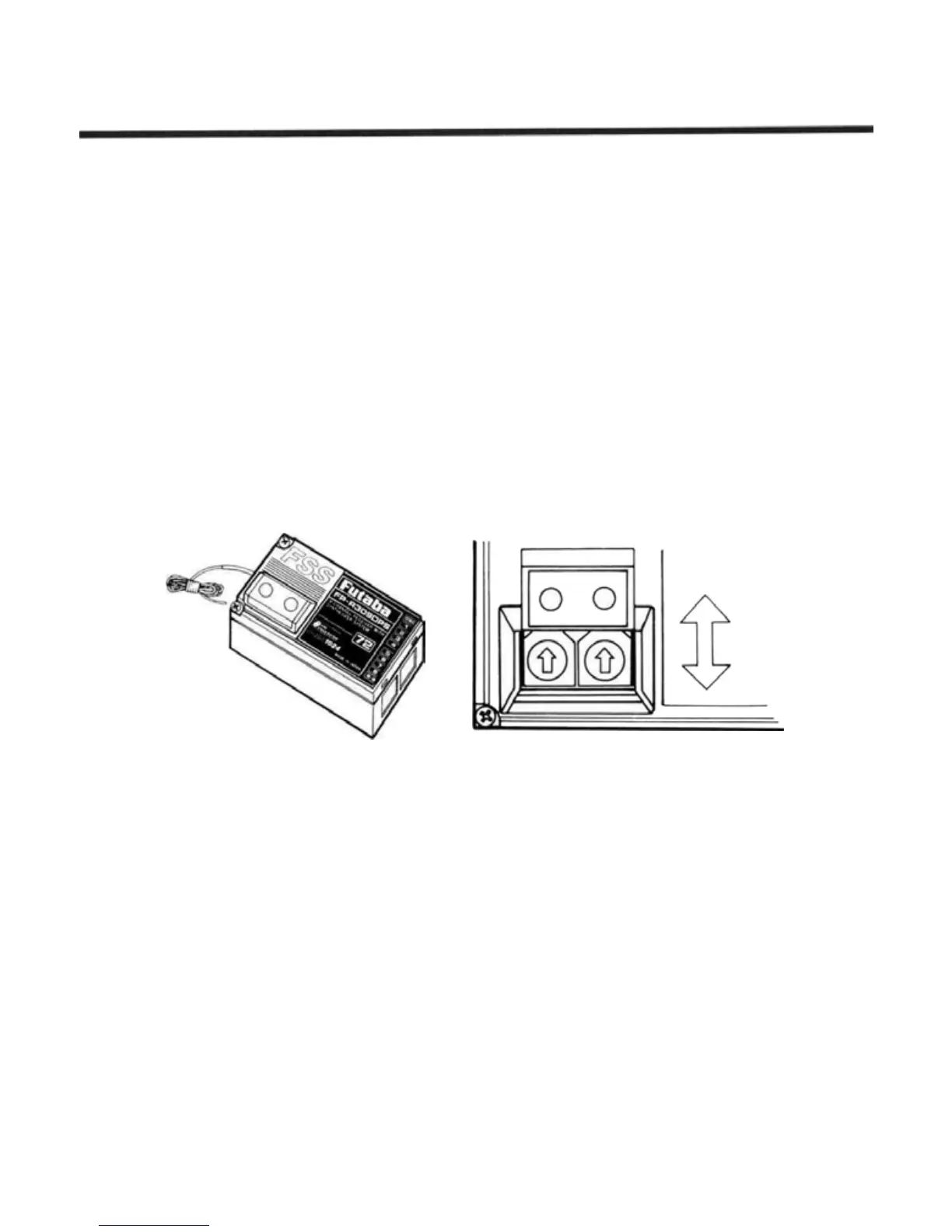

Frequency Synthesizer Receiver
FP-R309DPS
Dust Cover
Dust Cover
Sliding Direction
First Digit Second Digit
of Channel of Channel
Setting No. Setting No.
Channel No. Setting Switches
System Section, Page 36
To Next Page
