AIRPLANE SECTION
This section contains information on the commands that apply to
powered aircraft only. Each of these functions can be set independ-
ently for different flight conditions.
For conditions that apply to all models (ATV, AFR, D/R, PMX,
STM, TOF, CNA, and TRM functions), refer to the Common Condi-
tions section. For instructions on Helicopters and Sailplanes, refer to
the sections pertaining to those aircraft.

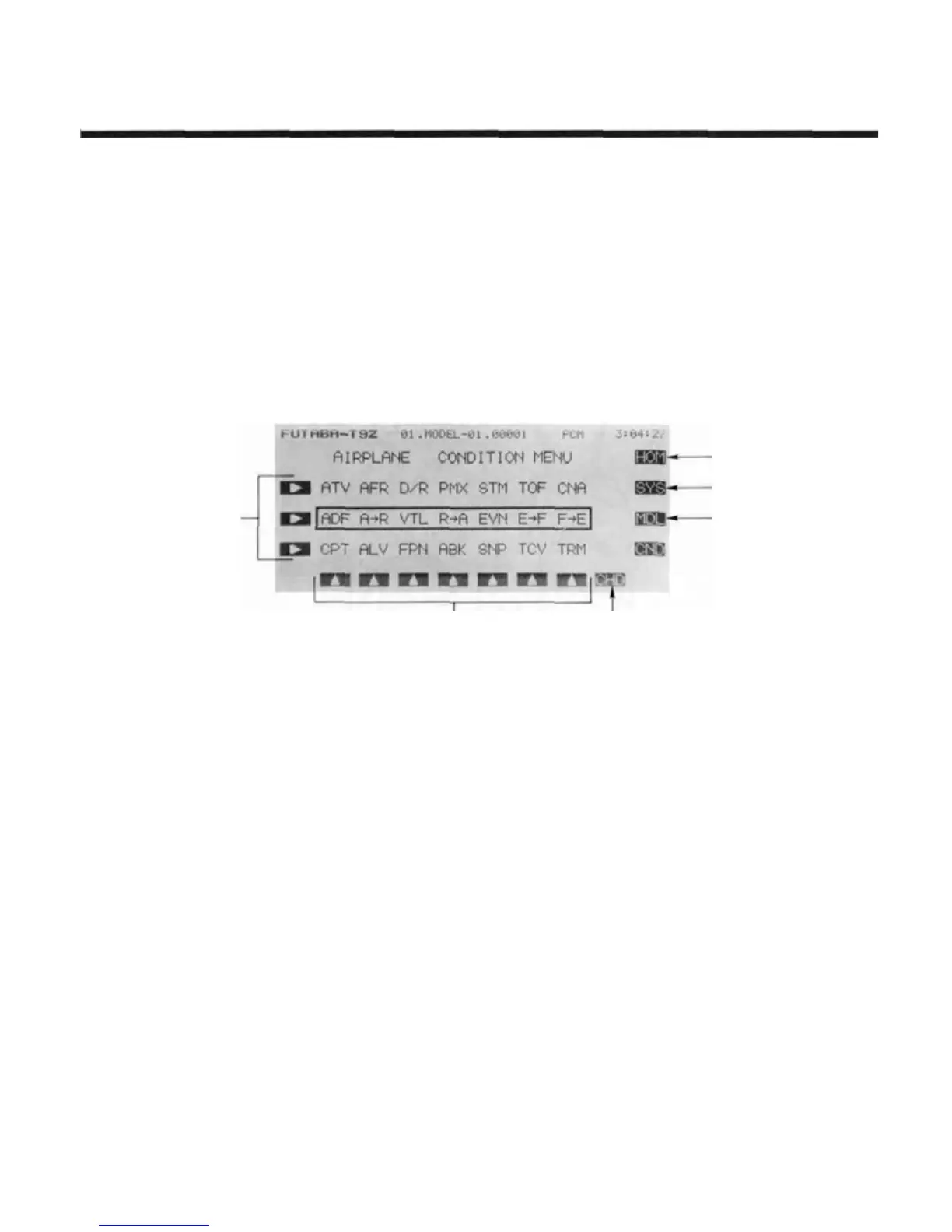

To get to these settings, press the MDL key from any menu in an
Airplane setup. To select one, first select the line containing the
desired function with the B, C, or D keys. Then use the F toL
keys to select the function to be entered.
Select Desired
Line With
These Keys
To Home Screen
To System Menu
To Model Menu
Function Selection Keys Activates Condition Hold Function
Airplane Section Table of Contents
Airplane Transmitter Controls and Functions. ................. 74
Airplane Receiver and Servo Connections .................... 76
Pattern Airplane Setup Example .........................77
Specific Control Setup Definitions
ADF . . .Aileron Differential. ..... .Sets more up than down . . . . . . . .80
travel
A->R . . .Aileron - > Rudder. ...... .Makes coordinated turns. ...... 81
VTL . . .V-Tail. ............. .Mixes rudder and elevator ...... 82
into V-tail
R->A . . .Rudder -> Aileron. ...... .Correct drifts during knife-edge . . 83
EVN . . .Elevon .............. .Use for delta wings and tailless . . 84
E->F . . .Elevator -> Flap . ....... .Make better high-lift maneuvers. .
85
F->E . . .Flap-> Elevator. ....... .Correct for trim change with ... 86
flaps
CPT. . . .Collective Pitch ........ .For consistent model speed in. . . 87
verticals
ALV . . .Ailevator. ........... .Two elevator servos also do . . . . 88
ailerons
FPN. . . .Flaperon ............ .Two ailerons also act together. . . 89
ABK . . .Airbrake. ........... .Make landings more predictable. . 91
SNP. . . .Snap Roll ........... .Set preset control positions .... 93
TCV . . .Throttle Curve. ........ .Adjust throw to match ....... 94
geometry
Airplane Section, Page 73
