＜ ModelMenu(HelicopterFunctions) ＞
This section contains information on the
commands that apply to helicopters only. For
instructions on airplane, glider and multicopter,
refer to the sections pertaining to those aircraft.
Use the Model type function in the Linkage
menu to select the swash type matched to the
fuselage beforehand.
Also, add flight conditions at the Condition
Select screen if necessary before setting the model
data at each function. (Up to 8 conditions can be
used)
The AFR function, dual rate function and other
functions common to all model types, are described
in a separate section.
Pitch curve: Pitch curve and hovering trim adjustment
Throttle curve: Throttle curve and hovering trim adjustment
Acceleration: Allows a brief "overload" in response to sudden throttle and pitch commands
Throttle hold: Moves the throttle to idle during autorotation
Swash mixing: Compensates for each control response
Throttle mixing: Compensates for power loss when cyclic applied
3LWFKĺ1HHGOH$GMXVWVUHVSRQVHFXUYHLQGLIIHUHQWÀLJKWFRQGLWLRQV
3LWFKĺ5XGGHU Handles torque changes from pitch angle inputs
Gyro: Used to switch gyro sensitivity
Governor: Used to switch RPM of the helicopter’s head

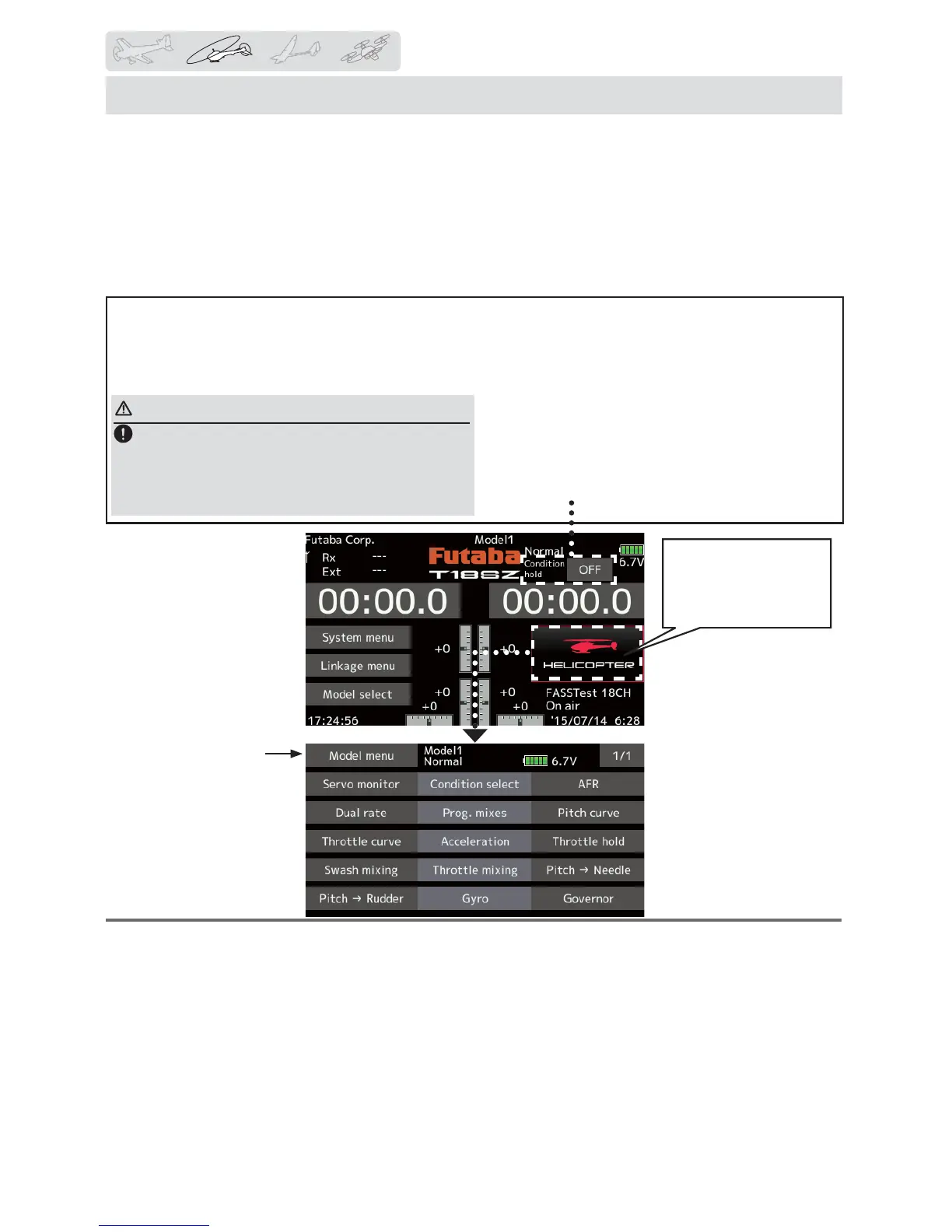

(Model menu screen example)
*The Model menu screen
depends on the model type.
Tapthisiconto
gotothemodel
menu.
ŏ Select the function
name and return to
the Home screen.
ŰƒƇƈƏŃƐƈƑƘŃŋūƈƏƌƆƒƓƗƈƕŌŃƉƘƑƆƗƌƒƑƖŃƗƄƅƏƈ
◆ Conditionhold
When performing adjustments, such as idling up, when
the engine is engaged, keep the throttle stable so as to prevent
the engine from revving too high. Once your adjustments are
complete, always make sure to set the function to [OFF].
*Condition hold ON/OFF operation is possible under normal
conditions and the throttle stick is more than 1/3rd into the slow
throttle range. Throttle servos will remain at the throttle stick
position during ON operation.
● ON/OFFoperationontheHomescreen
Under the conditions described above, tap the Condition hold
[OFF] displayed on the screen.
During function operation, Condition hold will display [ON]
and an alarm will sound.
WARNING
Forsafetyreasons,whenperformingindividual
adjustmentsitisrecommendedthatyoushutoff
theengineanddisconnectthemotortoprevent
rotation.
*Sudden,abruptrotationcanresultindeathorseriousinjury.
MODEL MENU
( Helicopter functions)
