FUTABA T18SZ - Camber Mixing

134
＜ Modelmenu(Airplane/Glider/MulticopterFunctions) ＞
Currentlyselectedconditionname
● Mixingcurvesetting
(Foradescriptionofthe
settingmethod,seethe
descriptionattheback
ofthismanual.)
Ailerons,flaps
andelevatorsrate
adjustment
Overalladjustmentby
RateAandRateB.
Conditiongroup/single
modeselection(Gr./Sngl)
TheON/OFFswitchof
mixingischosen.
Activatethefunctionby
tappingthe[INH].
Cambermixing
[Corresponding model type]: Airplane/glider, 2 ailerons or more
This function adjusts the rate of camber
operation which operates the wing camber
(ailerons, camber flaps, brake flaps) in the
negative and positive directions. The aileron,
flap, and elevator rates can also be adjusted
independently by curve, and attitude changes
caused by camber operation can be corrected.
*Initial setting assigns camber operation to side lever LS.
ŏ The up/down side rates of the aileron, Áap, and
elevator servos can be adjusted by curve. When
the mixing direction is reversed by the linkage,
adjustments can be made by changing the
mixing rate polarity (+ or -).
ŏ Mixing during Áight can be turned ON/OFF by
setting a switch. (Always ON at [--] setting)
ŏ A delay can be set for each condition. A cut
switch which can turn OFF the delay function can
be set.
ŏ The speed of the aileron, Áap, and elevator servos
can be set. (In side/Out side)
Servospeedsetting
(Foradescriptionofthe
settingmethod,seethe
descriptionattheback
ofthismanual.)

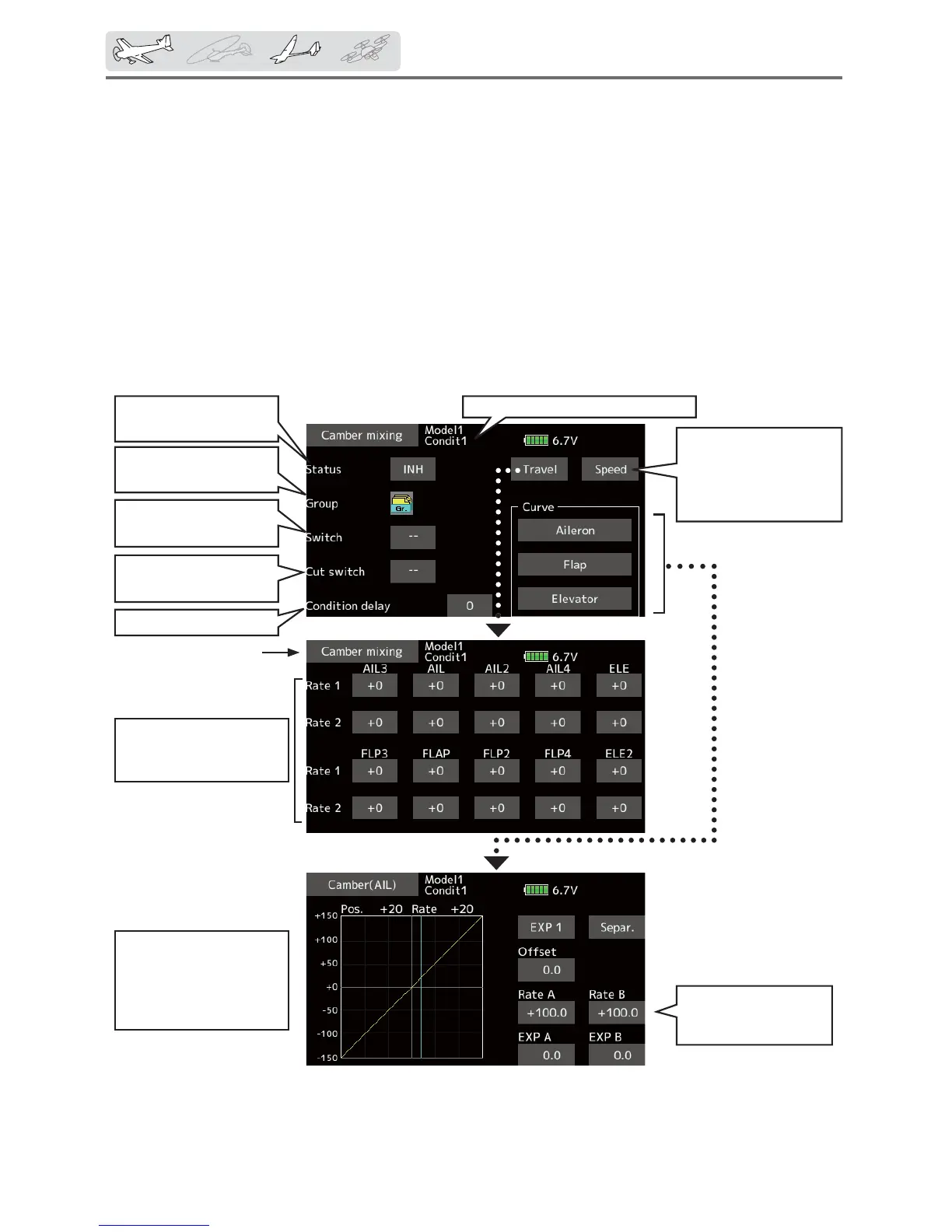

ŏ Select [Camber mixing] at the model
menu and call the setup screen
shown below.
Conditiondelaycut
switch
Conditiondelaysetting
ŏReturn to Model menu
