＜ Modelmenu(Airplane/Glider/MulticopterFunctions) ＞
The dedicated mixes, etc. usable when airplane
or glider model type is selected are displayed
in this Model menu functions section. First use
the Model type function of the Linkage menu to
preset the model type, wing type, and tail type
matched to the fuselage used. Other settings reset
the data used in mixing function, etc.
These dedicated mixes can be set for each
flight condition, as required. When you want to
use the system by switching the settings for each
condition by switch or stick position, use the
&RQGLWLRQVHOHFWIXQFWLRQWRDGGÀLJKWFRQGLWLRQV
(Up to 8 conditions can be used)
Note: The T18SZ is designed so that the airplane and
glider model types can handle aircraft of the same
wing type.
The functions common to airplanes and gliders,
except some dedicated functions, are summarized
without regard to the model type.
The setting items are different, depending on the
number of servos, etc. according to the wing type
used. The setup screens in the instruction manual
are typical examples.
Aileron differential
This function adjusts the left and right ailerons.
5ROOD[LVFRUUHFWLRQDQG¿QHWXQLQJZLWKD95DUHDOVR
possible. This is convenient when making settings
GXULQJÀLJKW
[Airplane/glider, 2 ailerons or more]
Flap setting
The flaps can be adjusted independently. For a 4
flaps model, the camber flaps can be mixed with the
EUDNHÀDSV>$LUSODQHJOLGHUÀDSVRUPRUH@
AIL
→
&DPEHUÀDS
This mix operates the camber flaps in the aileron
mode. It improves the operation characteristic of the
UROOD[LV>$LUSODQHJOLGHUDLOHURQVÀDSVRUPRUH@
$,/ĺ%UDNHÀDS
This mix operates the brake flaps in the aileron
mode. It improves the operation characteristic of the
UROOD[LV>$LUSODQHJOLGHUÀDSVRUPRUH@
$LOHURQĺ5XGGHU
This mix is used when you want to operate the
rudder at aileron operation. Banking at a shallow bank
angle is possible. [Airplane/glider, general]
(OHYDWRUĺ&DPEHU
This mix is used when you want to the mix camber
flaps with elevator operation. Lifting force can be
increased at elevators up. [Airplane/glider, 2 ailerons or
more]

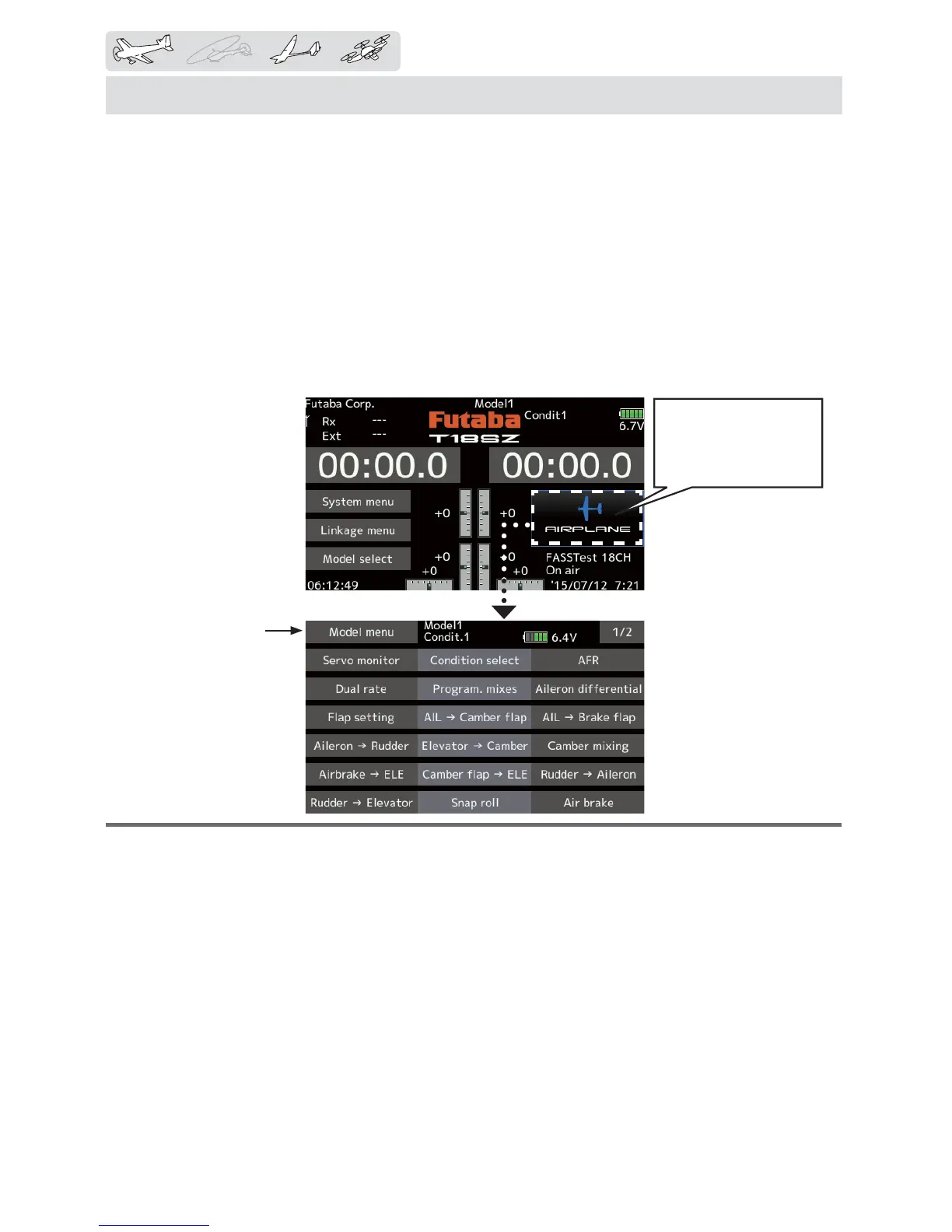

(Model menu screen example)
*The Model menu screen
depends on the model type.
Tapthisiconto
gotothemodel
menu.
ŏ Select the function
name and return to
the Home screen.
ŰƒƇƈƏŃƐƈƑƘŃŋŤƌƕƓƏƄƑƈŒŪƏƌƇƈƕŒŰƘƏƗƌƆƒƓƗƈƕŌŃƉƘƑƆƗƌƒƑƖŃƗƄƅƏƈ
MODEL MENU
(Airplane/Glider/Multicopter functions)
