FUTABA T18SZ - S.bus Servo

63
＜ Systemmenu ＞
S.BUS/S.BUS2
Servo

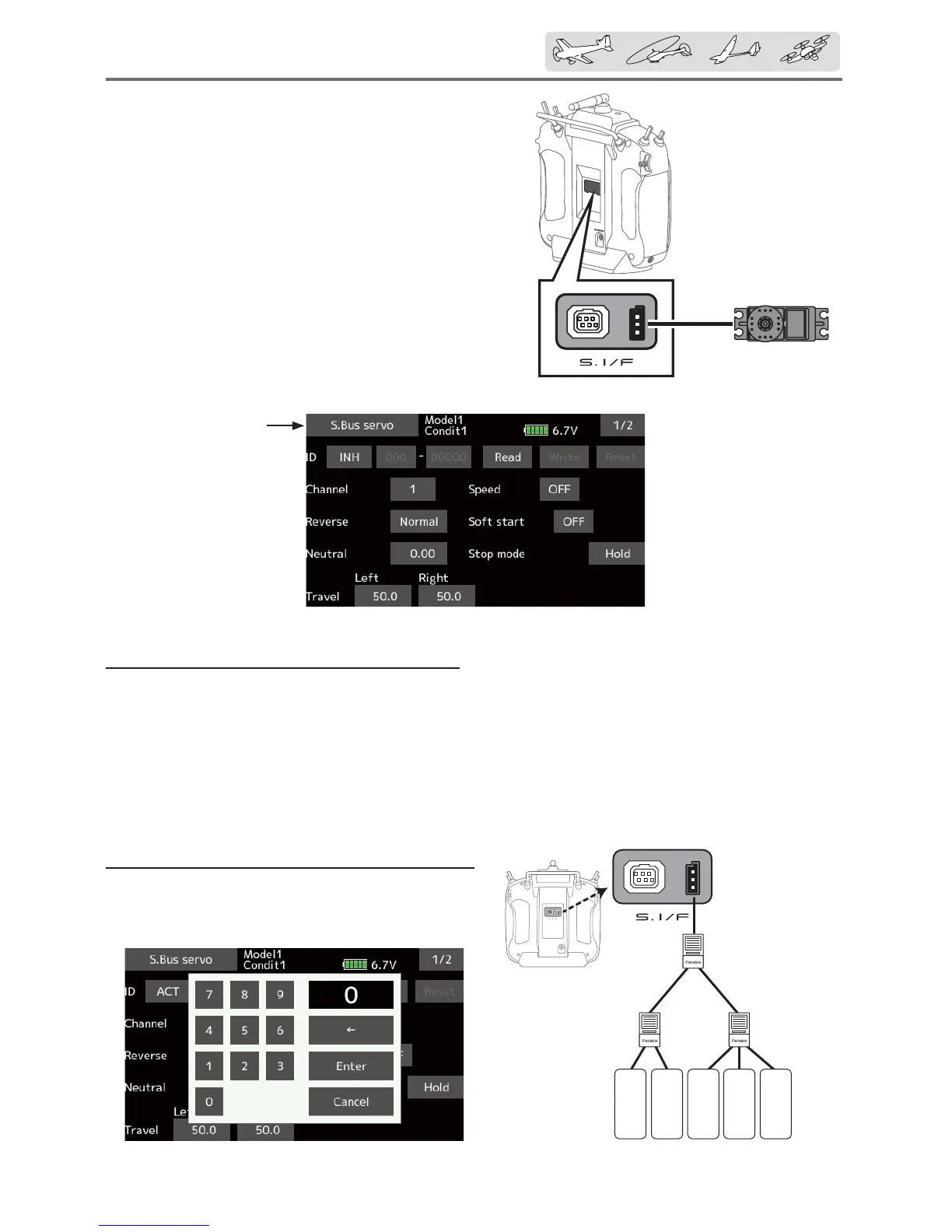

Procedure for changing S.BUS servo setting
1. Select [S.Bus servo] of the System menu.
2. Wire the servo as shown in the Àgure above.
3. Press [Read]. The ID and current setting of
that servo are displayed.
S.Busservo
S.BUS servo setting
ŏ Call the following setting screen by pressing the
[S.BUS Servo] button in the System menu.
Ɣ6HUYR,'QXPEHU
If you use multiple S.BUS servos, only the desired
servo in the group can be set by entering the ID of
WKDWVSHFL¿FVHUYR
An S.BUS(2) servo can memorize the channel
and various settings you input. Servo setting can
be performed on the T18SZ screen by wiring the
VHUYRDVVKRZQLQWKH¿JXUH
* With some S.BUS(2) servos, there are some functions which
cannot be used. If a function cannot be used, the display
screen will change. (Only the function which can be used by
a servo is displayed.)
$IWHUUHDGLQJFRPSOHWLRQZLWKFRQQHFWLRQRIWKHDERYH¿JXUH
if a stick is moved, servo operation can be tested.
76=
SERVO SERVO
3-way hub
or Y-harnesses
SERVO SERVO SERVO
4. When multiple servos are connected change
[INH] at the right side of the ID number on the
screen to [ACT] and enter the ID of the servo
you want to set.
5. Set each item. (Please see the next page.)
6. Press [Write]. The settings are changed.
ŏReturn to System menu
