＜ ModelBasicSettingProcedure ＞
ŶƈƕƙƒŃƆƒƑƑƈƆƗƌƒƑŃƅƜŃƐƒƇƈƏŃƗƜƓƈ

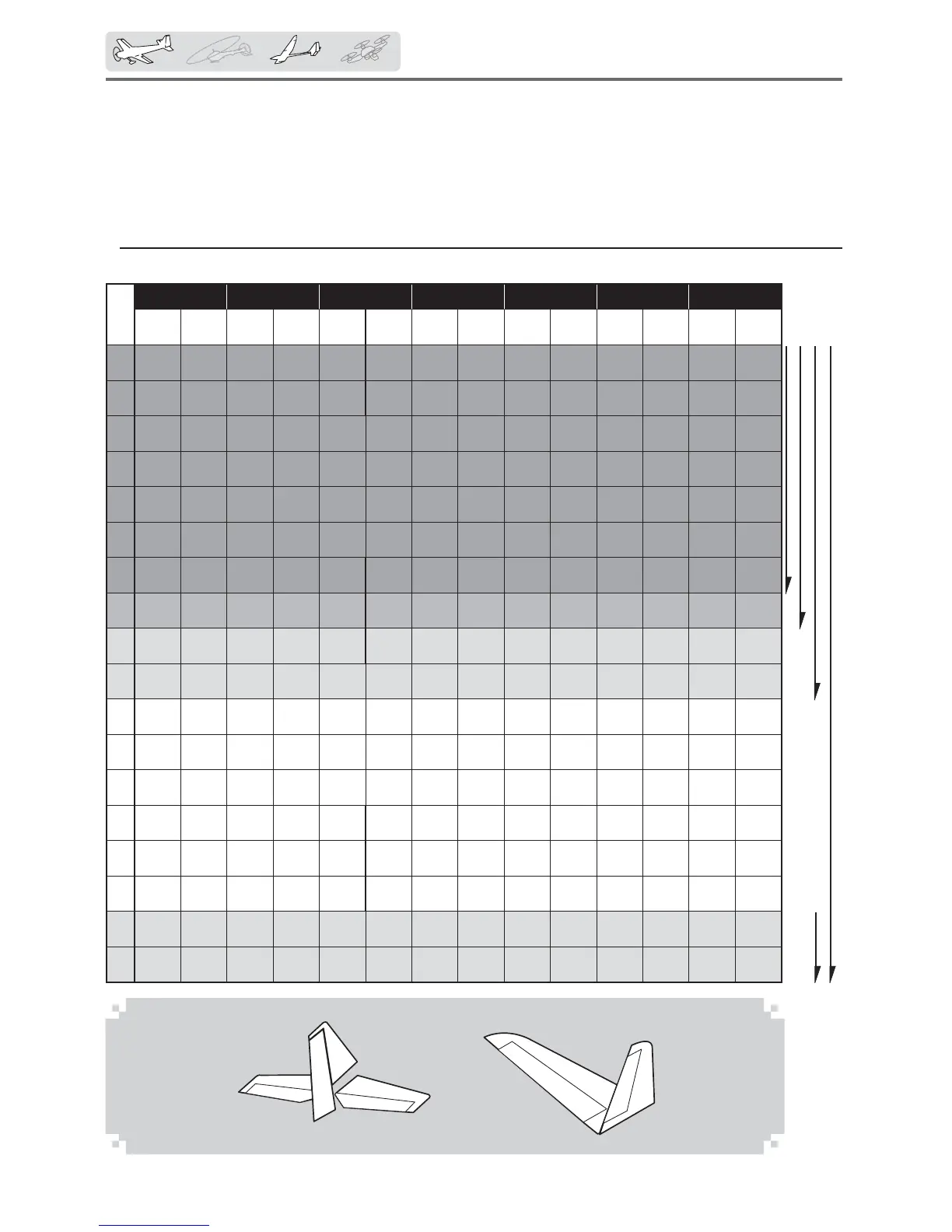

The T18SZ transmitter channels are automatically assigned for optimal combination according to the type selected
with the Model type function of the Linkage menu. The channel assignment (initial setting) for each model type is
shown below. Connect the receiver and servos to match the type used.
*The set channels can be checked at the Function screen of the Linkage menu. The channel assignments can also be changed.
For more information, read the description of the Function menu.
ŤƌƕƓƏƄƑƈŒƊƏƌƇƈƕ
Ɣ1RUPDOWDLODQG9WDLO
Theoutput
CHofeach
system
RX
CH
1AIL 2AIL 2AIL+1FLAP 2AIL+2FLAP 2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP
Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider
1 Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron
2
Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator
3 Throttle Motor Throttle Motor Throttle Motor Throttle Motor Throttle Rudder Throttle Rudder Throttle Rudder
4 Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Aileron2 Rudder Aileron2 Rudder Aileron2
5 Gear AUX6 Gear AUX6 Gear AUX6 Aileron2 Aileron2 Gear Flap Gear Aileron3 Gear Aileron3
6 Airbrake Airbrake Aileron2 Aileron2 Aileron2 Aileron2 Flap Flap Aileron2 Flap2 Aileron2 Aileron4 Aileron2 Aileron4
7 AUX5 AUX5 AUX5 AUX5 Flap Flap Flap2 Flap2 Flap Flap3 Aileron3 Flap Aileron3 Flap
8 AUX4 AUX4 AUX4 AUX4 AUX5 AUX5 Gear AUX6 Flap2 Flap4 Aileron4 Flap2 Aileron4 Flap2
9 AUX3 AUX3 AUX3 AUX3 AUX4 AUX4 AUX5 AUX5 Flap3 Motor Flap Motor Flap Flap3
10 AUX2 AUX2 AUX2 AUX2 AUX3 AUX3 AUX4 AUX4 Flap4 AUX6 Flap2 AUX6 Flap2 Flap4
11 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX3 AUX3 AUX5 AUX5 AUX5 AUX5 Flap3 Motor
12 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX4 AUX4 AUX4 AUX4 Flap4 AUX6
13 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX3 AUX3 AUX3 AUX3 AUX5 AUX5
14 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2 AUX2 AUX4 AUX4
15 AUX1 AUX1 AUX1 Butterfly AUX1 Butterfly AUX1 Butterfly AUX1 Butterfly AUX1 Butterfly AUX3 Butterfly
16 AUX1 AUX1 Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber
DG1 SW SW SW SW SW SW SW SW SW SW SW SW SW SW
DG2 SW SW SW SW SW SW SW SW SW SW SW SW SW SW
FASST7CH S-FHSS FASSTest12CH FASSTest18CHFASSTMULTT-FHSS
V-tail
Normal
Elevator1servo
