GCC Technologies AFR-24S - Cutter Components

AFR-24S User Manual
13

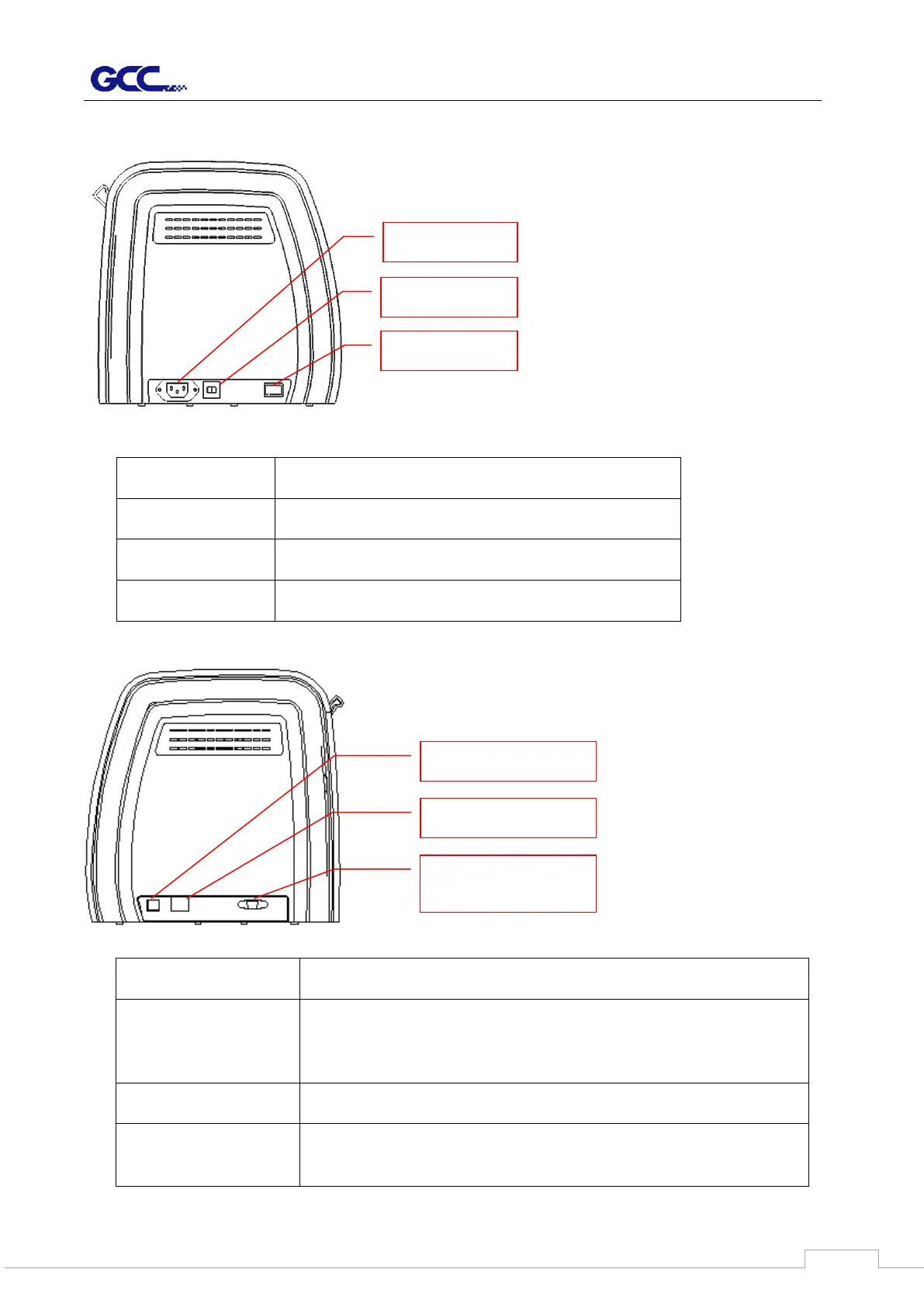

1.3.2 Cutter overview
Item
Function
Power Switch
On when switches to [I]; Off to [O]
Fuse
3 Amp
Power Port
A socket for AC power cable.
Item
Function
Serial Interface
Connector
(RS232C)
Used to connect the cutting plotter to a computer through a
serial interface (RS232) cable.
Ethernet Connector
Used to connect your cutting plotter to a local area network
USB Connector
Used to connect the cutting plotter to a computer through a
USB cable
Fuse
Power Port
Power Switch
USB Connector
Serial Interface
Connector (RS232C)
Ethernet Connector
