GCC Technologies AFR-24S - Replacing the Cutoff Blade

AFR-24S User Manual
55
2.10 Replacing Cutoff Blade

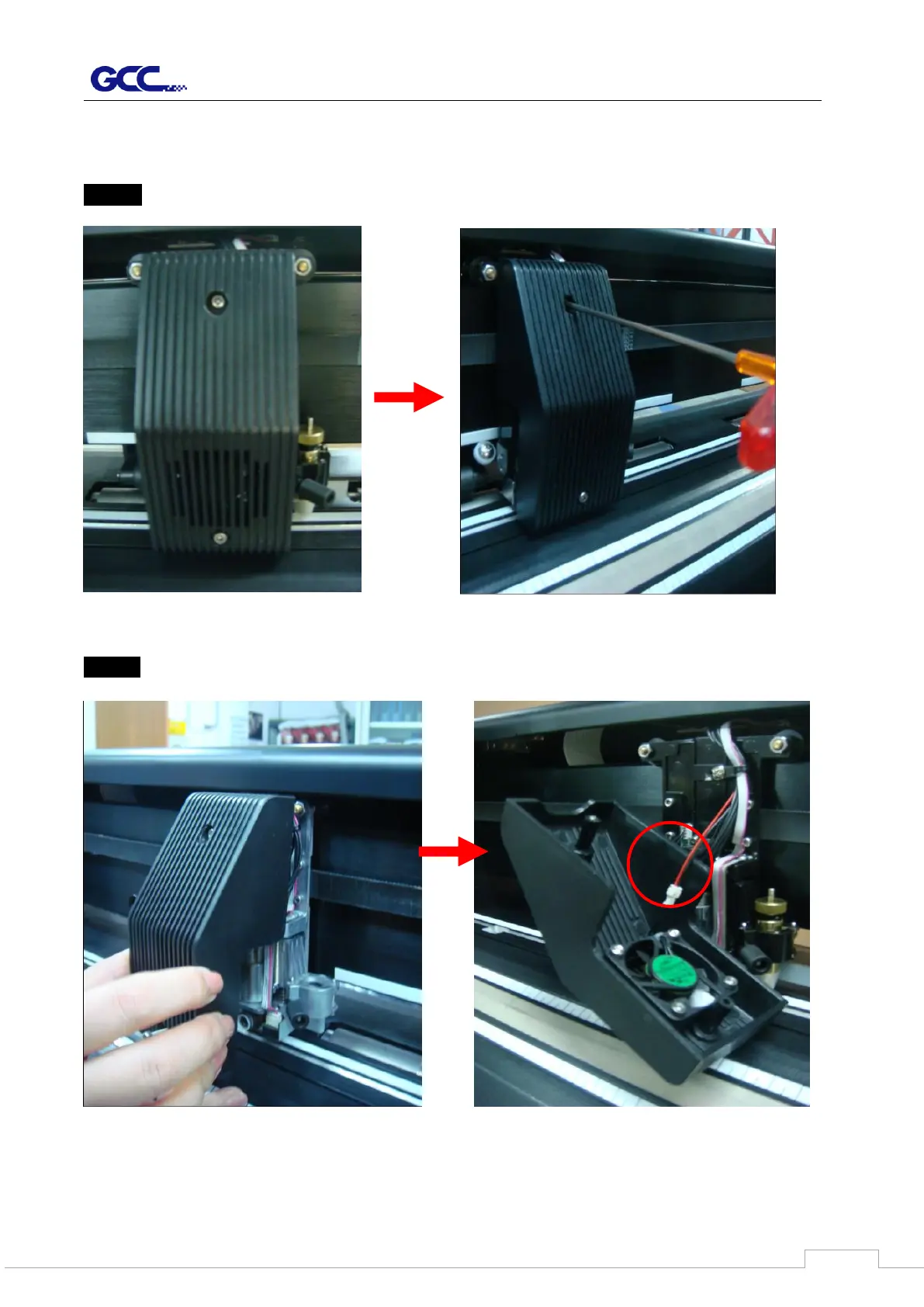

Step 1 Unscrew the Cover from the Tool Carriage using a screw driver (Figure 2-31 and
2-32).
Step 2 Manually disassemble the Cover, which will still be connected to the Tool Carriage
through wires (Figure 2-33 and 2-34).
Figure 2-31
Figure 2-32
Figure 2-33
Figure 2-34
