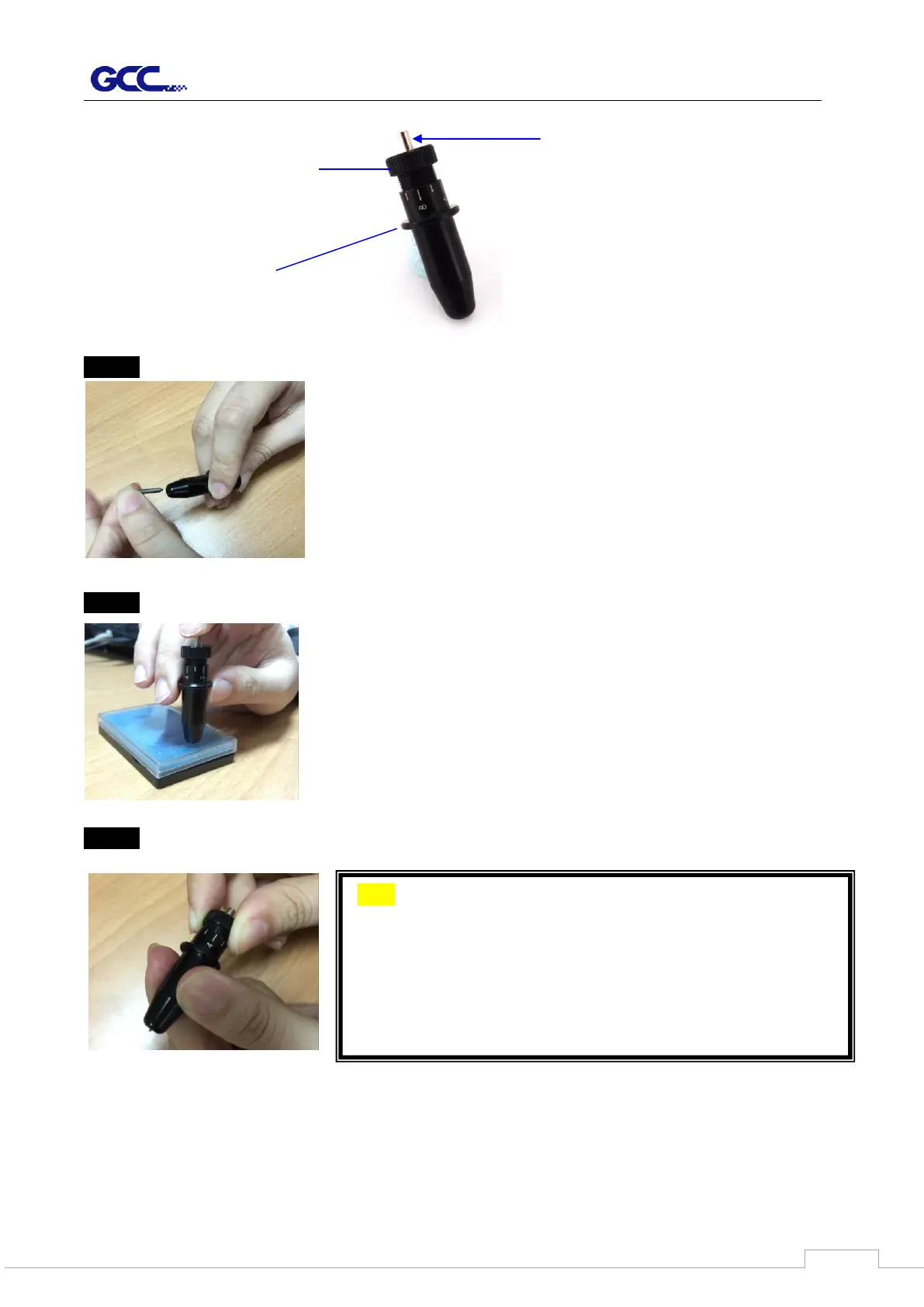

Step 1 Install blade.
Step 2 Push the blade to the bottom of the blade holder.
Step 3 Adjust the blade tip to suitable length by screwing “Blade tip adjustment screw”
clockwise or count-clockwise.
Tips:
“The proper length” means the blade’s length is adjusted
0.1mm more than film’s thickness. That is, if the thickness of
film is 0.5mm, then blade’s length is properly adjusted 0.6mm
and it can completely cut through the film layer yet avoid
penetrating the backing.
Outward ring
Adjustment depth knob
Pin
