AFR-24S User Manual

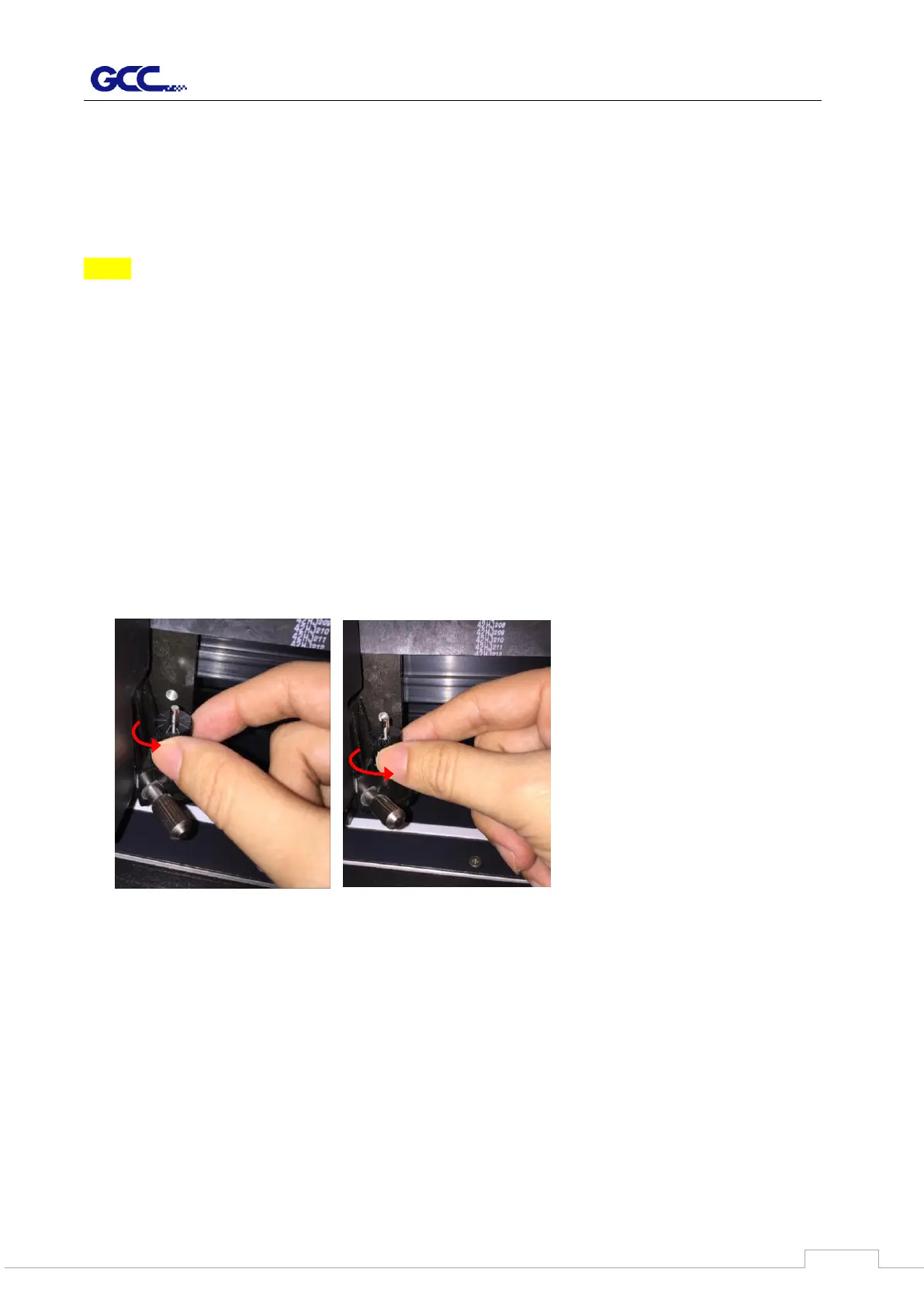

2. Align one of the scales on the blade holder to the mark on the carriage
3. Select “Blade Length Adjust” under “CUT TEST” on the LCM, and enter the blade length
wished in “Set Length”; test the blade holder first and then test the blade length by
pressing ENTER.
Note: Keep the blade holder at the same position when you perform blade holder and blade
length tests.
4. When blade holder and blade length tests are finished, the screen will show you to what
degree (the unit of the value following “CW” or “CCW” is “circle”) and in which direction
[CW (clockwise) or CCW (counterclockwise)] you should turn the adjustment knob.
e.g. Turn CW 5 means to turn the knob for 5 units clock-wisely.
5. The screen will show “Adjustment completes” when the value on the screen is 0, the blade
length is perfect and no more adjustment needs to be made. Press “Enter” now to
complete the process and you may start cutting at this point.
