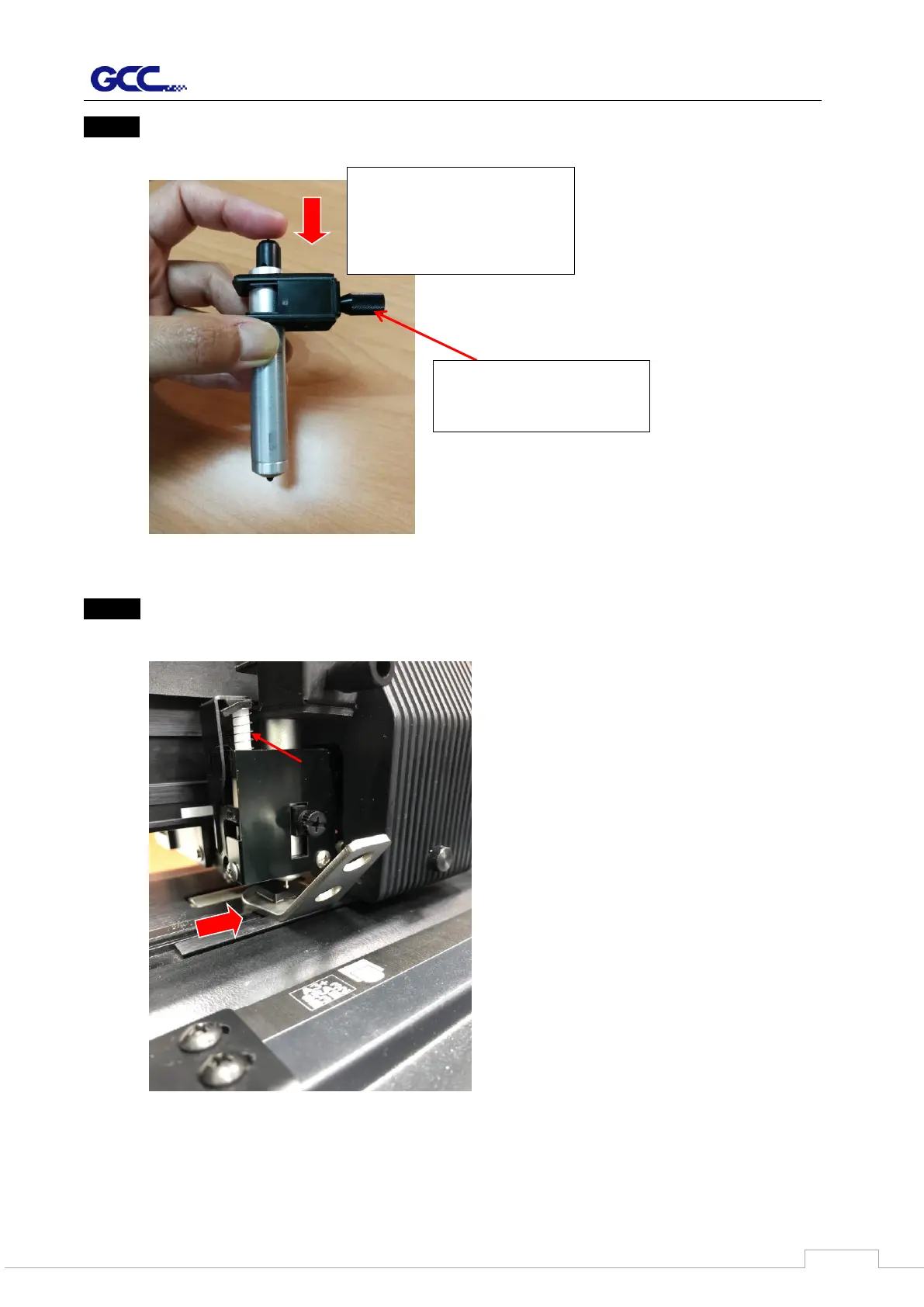

Step 4 Make sure the tool is insert to the bottom of the holder tube and turn the hand screw to lock
it’s position
Step 5 Place the high adjustment jig under the creasing tool position and insert the creasing tool
holder. (Make sure the cylinder is in “UP” position)
Press down the tool tip
to ensure the toll is set at
the bottom of the holder
tube
Turn the hand screw to
lock the position
