AFR-24S User Manual
85
The default cutting force and offset value of the cutting test are 80gf and 0.275mm
respectively. Press [ARROW KEY] to move the tool carriage to the position where you like.
Then, press the [ENTER KEY] to perform Cut Test.
Note: At the same time, the new origin is also set at the cutting test position.
When the cutting test is completed, a pattern appears. Peel off the pattern to see if it can be
easily separated from the media base. If yes, the setup tool force is appropriate. If not or cut
through the back paper, press [FORCE KEY] to adjust the tool force until an optimum force is
obtained (Figure 4-14).
If the pattern appears to be BB or CC layout, press [OFFSET KEY] to adjust the offset value
until AA pattern discovered.

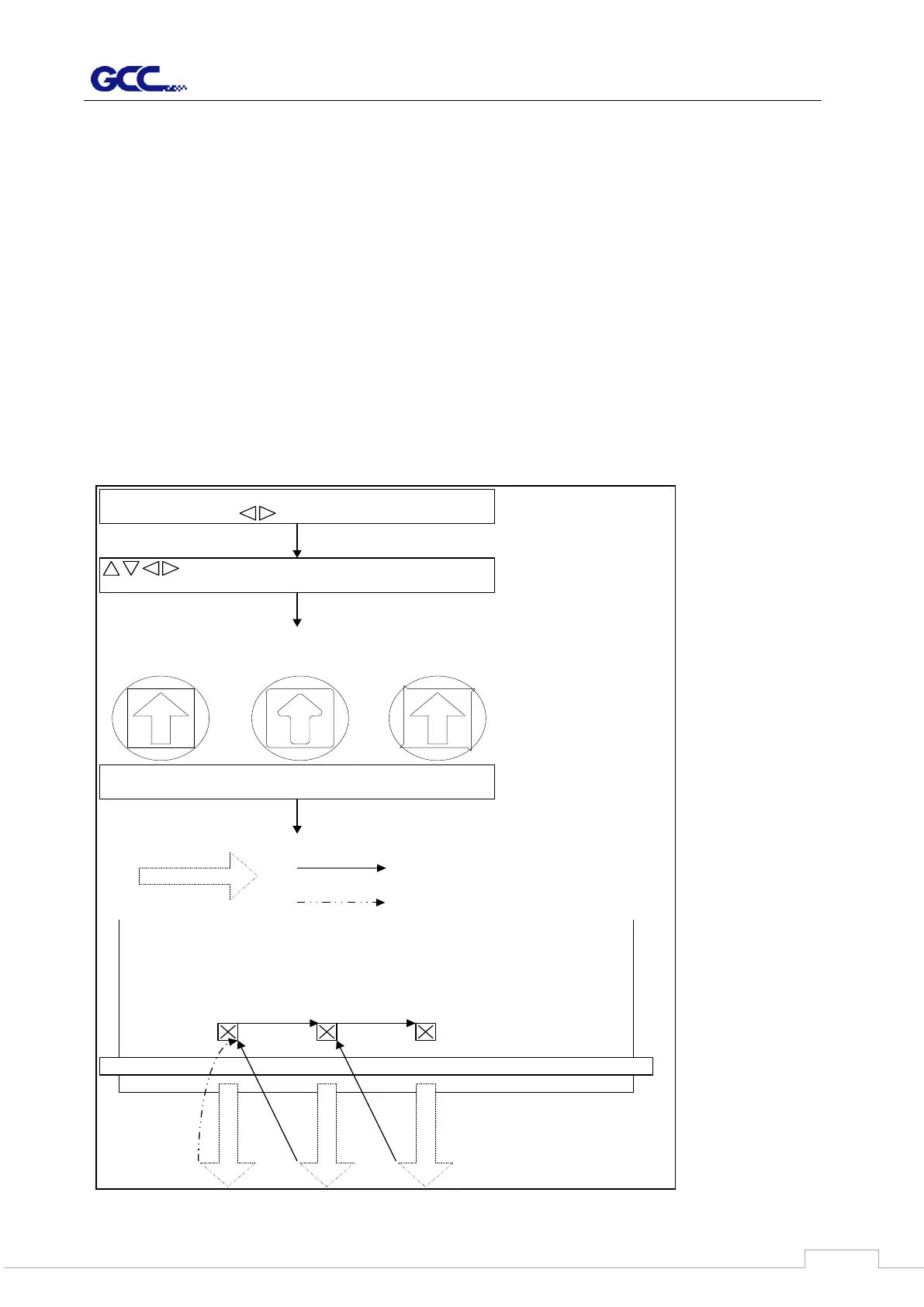

S q u a r e C u t
Press ENTER_KEY
AA CCBB
Press ENTER_KEY
E n t e r:O KS e l e c t :
M o v e t t ec u
X Y: :
Ms t
S q u a r e C u t
Press SPEED_KEY,
FORCE_KEY,
OFFSET_KEY to setup
or
Press arrow keys to
desired position for next
square cut
E n t e r:O K
C o n t
/N : O O F FN
Machine
3mm
80 mm
3mm
80 mm
Press ENTER_KEY
80 mm
Finish square cut
Press
ENTER_KEY
Press ON/OFF
line_KEY
i n o u s
L NI E
Figure 4-14
