Components and Functions (Theory)
5-2 Invenia ABUS 2.0 – System Setup and Basic Service Manual
4700-0043-00 Rev. 4
Introduction
Overview
This section identifies Invenia 2.0 device key elements.
The Invenia 2.0 is a device designed to perform
ultrasound-scanned volume imaging of the breast.
The system has a cart, an articulating display arm with touch
screen monitor, scan arm and a scan head with an integrated
ultrasound transducer. The cart holds the Dual Box Chassis
housing the two major electronics assemblies: the Ultrasound
Box, and the PC Box.

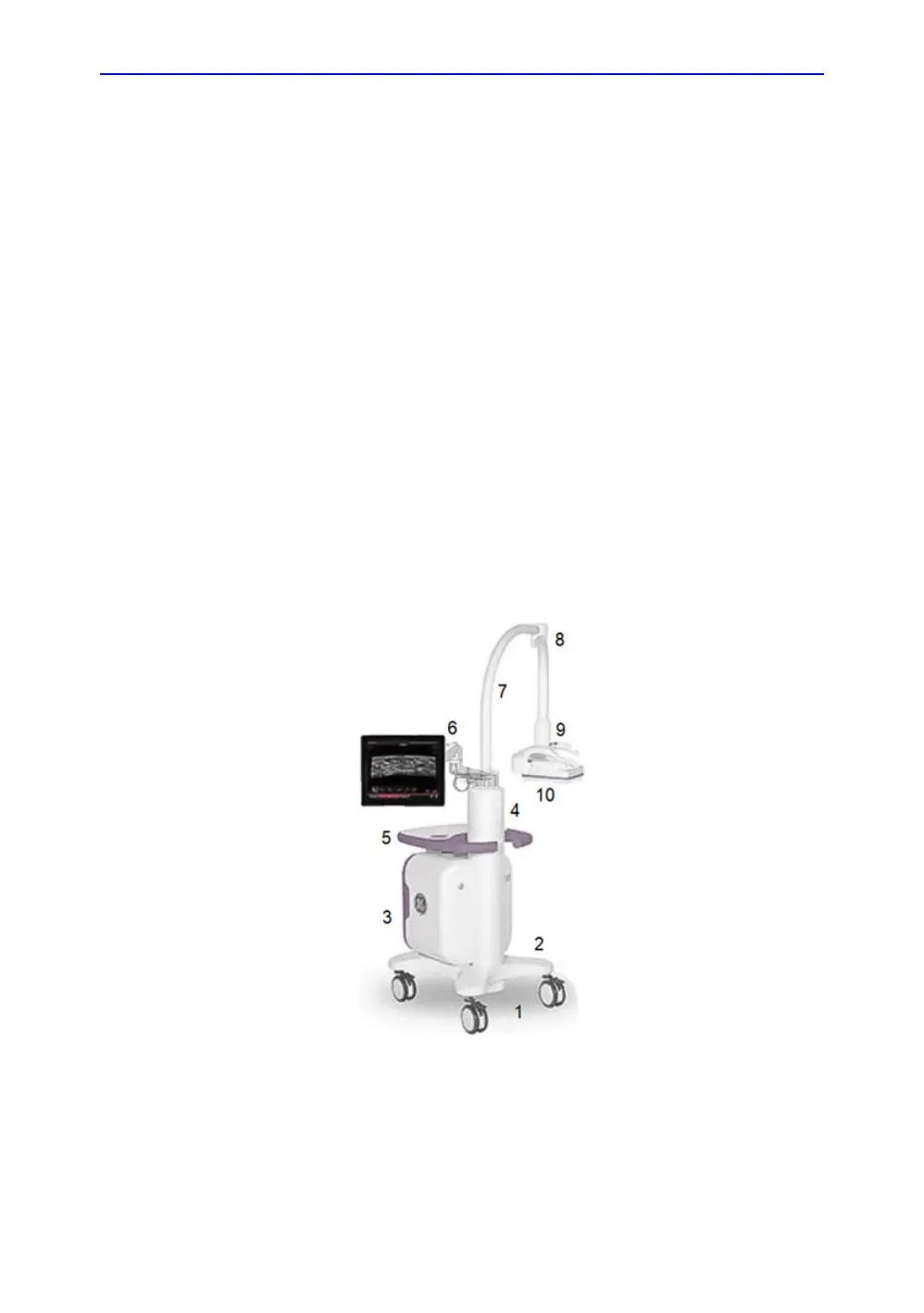

Figure 5-1. Invenia ABUS 2.0
Key to numbered items in Figure 5-1:
