Components and Functions (Theory)
5-20 Invenia ABUS 2.0 – System Setup and Basic Service Manual
4700-0043-00 Rev. 4

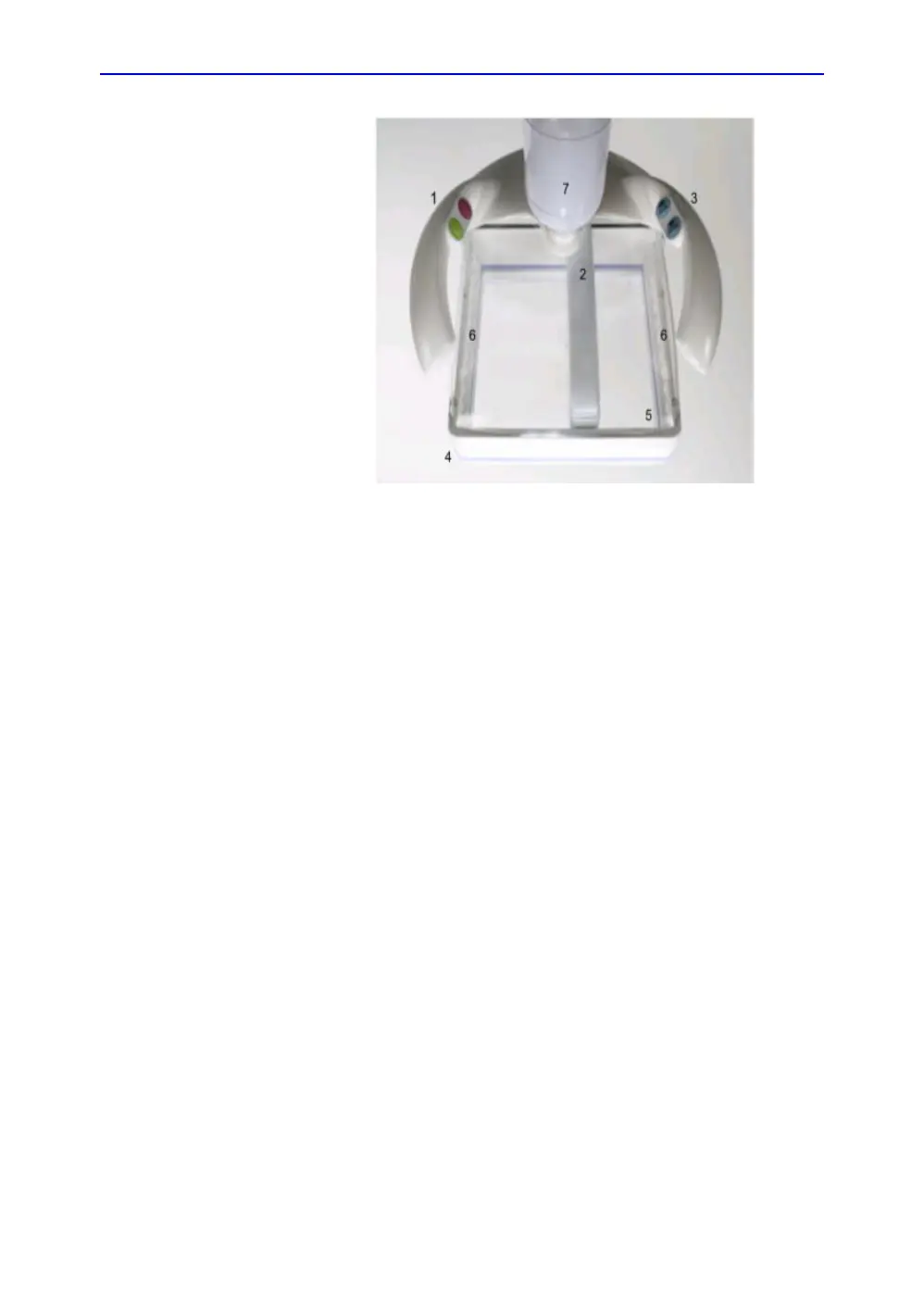

Figure 5-8. Scan Head Assembly
1. Buttons: Begin/Stop Scan
2. Transducer
3. Buttons: Increase/Decrease compression
4. Single-Use Stabilizing Membrane
5. Scan Head Assembly Cover
6. LED Lights
7. Multi-Axis Ball Joint Lock
