4-32 Section 4-7 - Keyboard Function Checks
4-7-10 Speaker Assy Validation
1.) Boot up the system.
2.) Insert the Service Dongle and go to the maintenance mode.
3.) Move to trackball to the bottom of main monitor.
4.) Double click the audio icon at the bottom of the display.
5.) Go and Click the Open Volume Control.

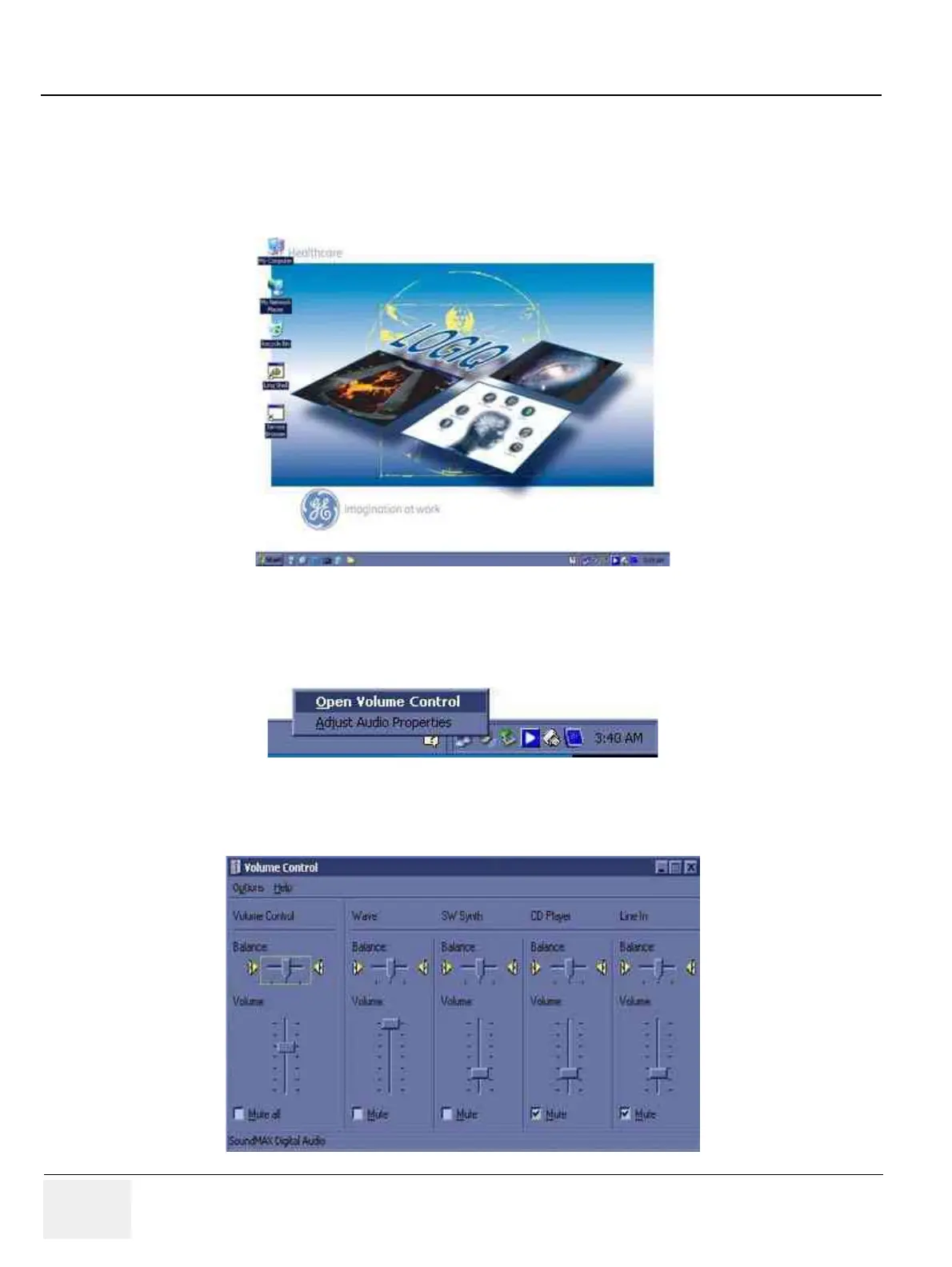

Figure 4-27 Maintenance display
Figure 4-28 Open Volume Control
Figure 4-29 Volume Control panel
