GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
4-48 Section 4-9 - Board Function Checks
4-9-11 BEP Assy function check procedure
4-9-11-1 HDD, Memory, CPU Diagnositc Test
1.) The Start up Screen will be shown on the Monitor display when the system is Turned ON.
2.) Figure 4-49 displays when Service Dongle inserted in Rear Panel.
3.) To enter the Maintenance Mode, select Maintenance button.
4.) To start Diagonistic Test, Execute PC Doctor.
'Start' => 'Programs' => 'PC Doctor'
5.) HDD Test
Select Hard driver test manu, start to testing(Figure 4-50).
Check display 'Pass' massage

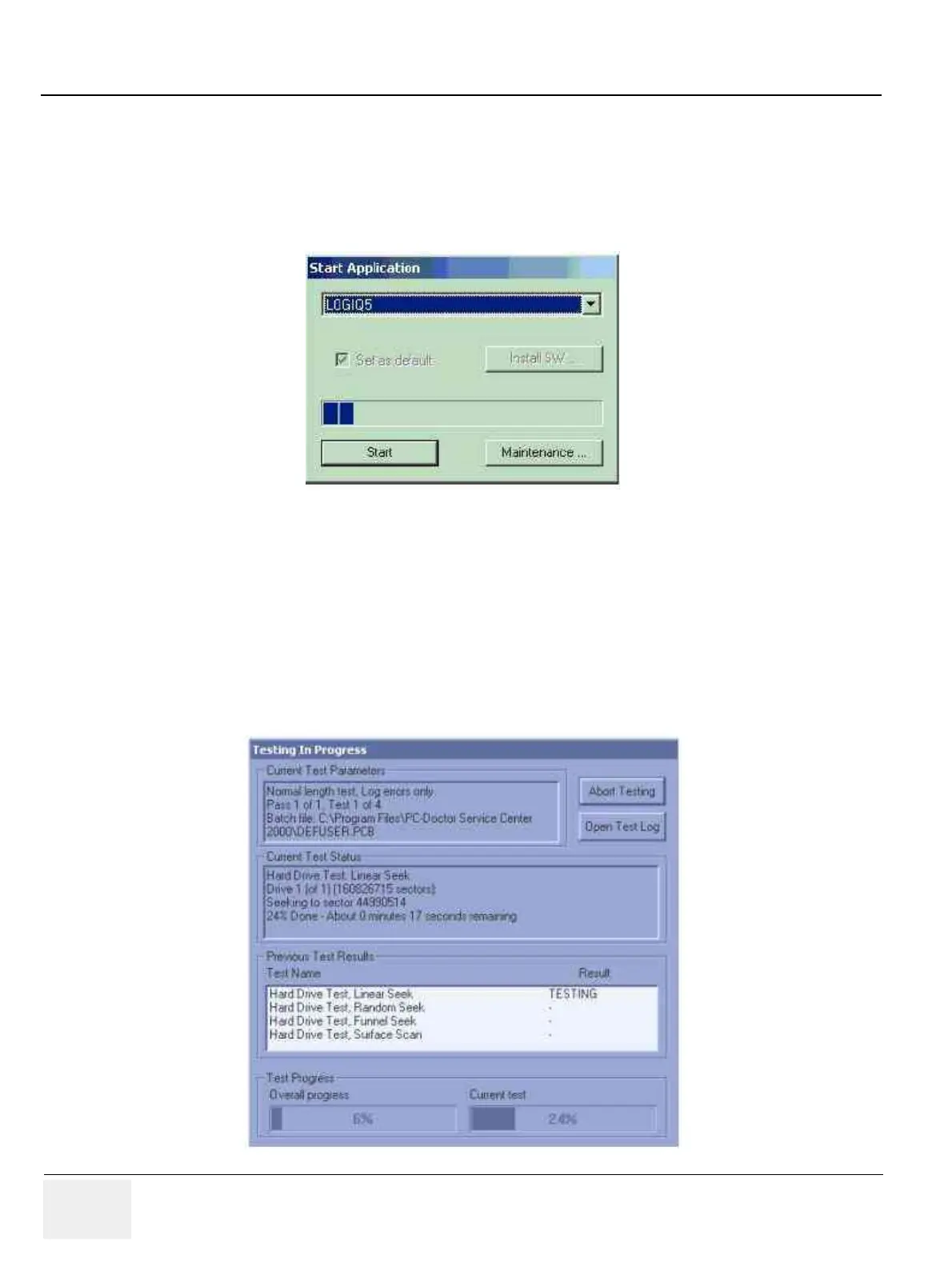

Figure 4-49 Start Application window
Figure 4-50 HDD Test
