GE LOGIQ 5

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 4 Functional Checks 4-49
4-9-11-1 HDD, Memory, CPU Diagnositc Test (cont’d)
6.) Memory Test
Select Memory test manu, start to testing.
Check display 'Pass' massage
7.) CPU Test
Select CPU test manu, start to testing.
Check display 'Pass' massage

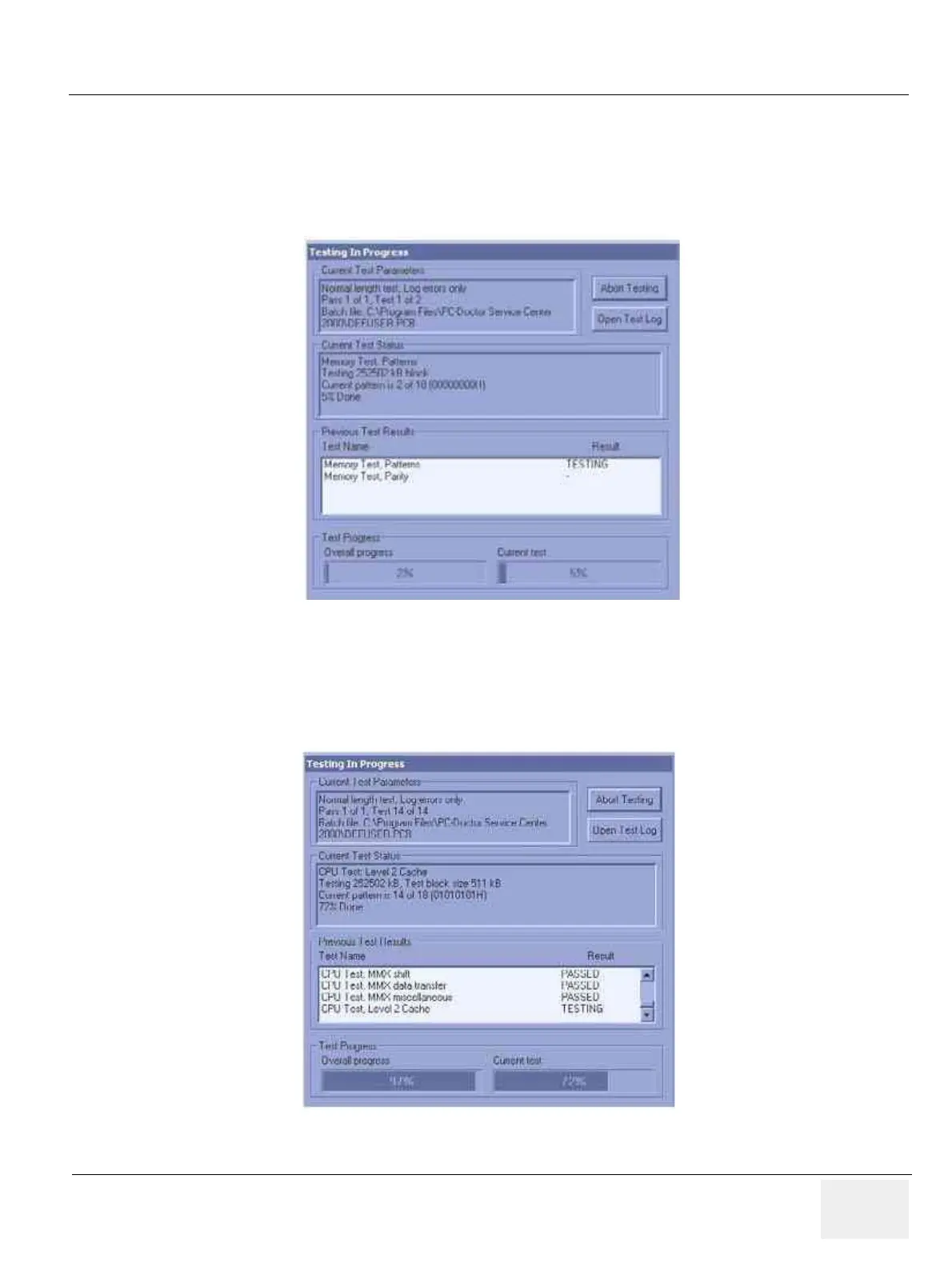

Figure 4-51 Memory Test
Figure 4-52 CPU Test
