Chapter 6 Service Adjustment 6 - 11
6-5-2-4 Removal Procedure (cont’d)
6.) Use Increase or Decrease button to adjust the Brightness. Refer to Figure 6-12 on page 6-11 .
7.) Move the cursor to execute Auto Adjust.
8.) Make sure that the Auto Adjust is selected, then the Menu Selection Button.
9.) LCD display Auto Adjustment procedures will be started automatically.
10.)After finishing the Auto Adjustment procedures, the following menu is displayed on the LCD.
11.)Make sure that the LCD displacement is fixed and shown at the center location.
12.)If it is fixed appropriately, go on to the next step.
If the display is not adjusted yet, go back and repeat the adjustment procedures form step 7.

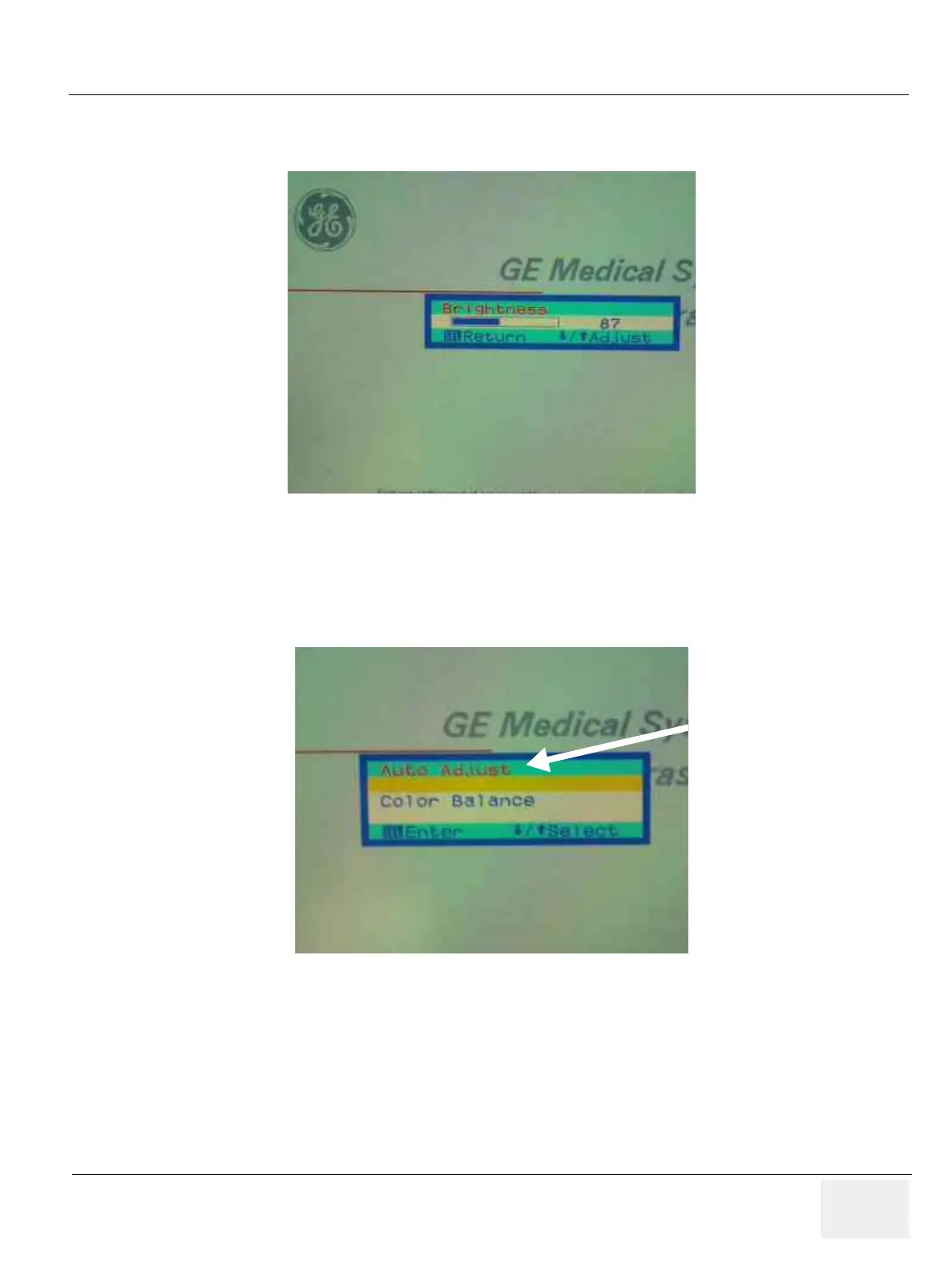

Figure 6-12 Brightness Adjustment
Figure 6-13 Auto Adjustment
