GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-17
8-4-1-6 Mounting procedure
1.) Confirm the configuration jumper setting
The new keyboard with engineering assy P/N rev ”-7” have a jumper for USB device power configuration
for keyboard function keys. Before install the new keyboard , the jumper cap should be attached in
proper place. The engineering assy P/N label of the keyboard is attached on the metal chassi of the
keyboard assy. If the engineering assy number rev of new keybaord is less then “-7” then move to next
installation step.

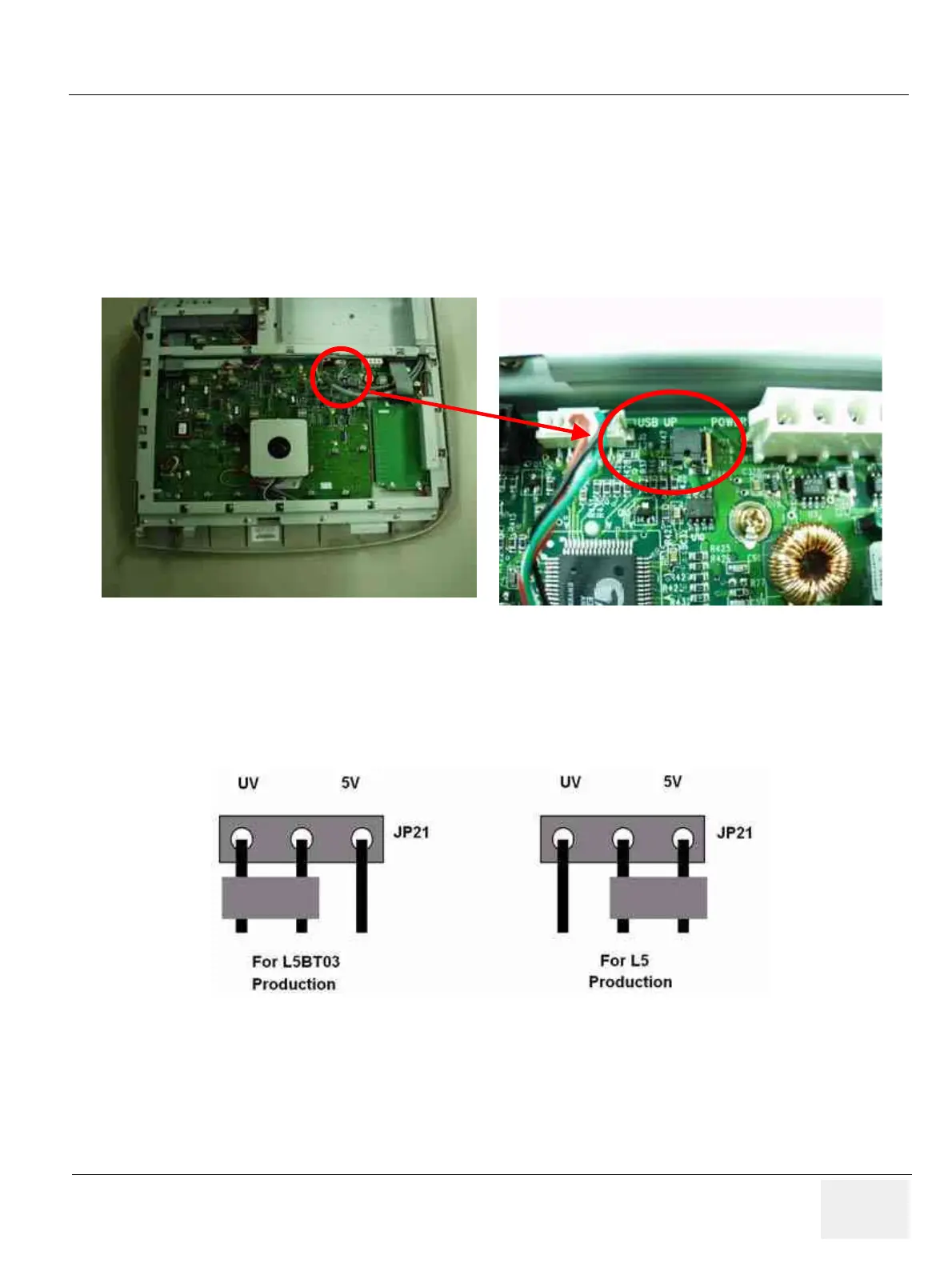

Figure 8-22 Jumper in main board of rev “-7” keybaord assy
- If the defect keyboard assy rev is same or greater then “-7” , set the jumper cap of new keyboard as
same as defect keyboard.
Install the new parts in the reverse order of removal.
Figure 8-22 Power Configuration Jumper in Keyboard Assy
Figure 8-23 Cap Position for L5BT03 Production System and L5
