IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-97
8-7-4-4 Removal Procedure (cont’d)
6.) Disconnect one connector (1) if removing the FEC Assy. Otherwise skip this step. Refer to Figure
8-95.
7.) Move the upper and lower stopper in the direction indicated by the arrow (1). Refer to Figure 8-96.
8.) Pull out the board in the direction indicated by the arrow (2). do not bend it.

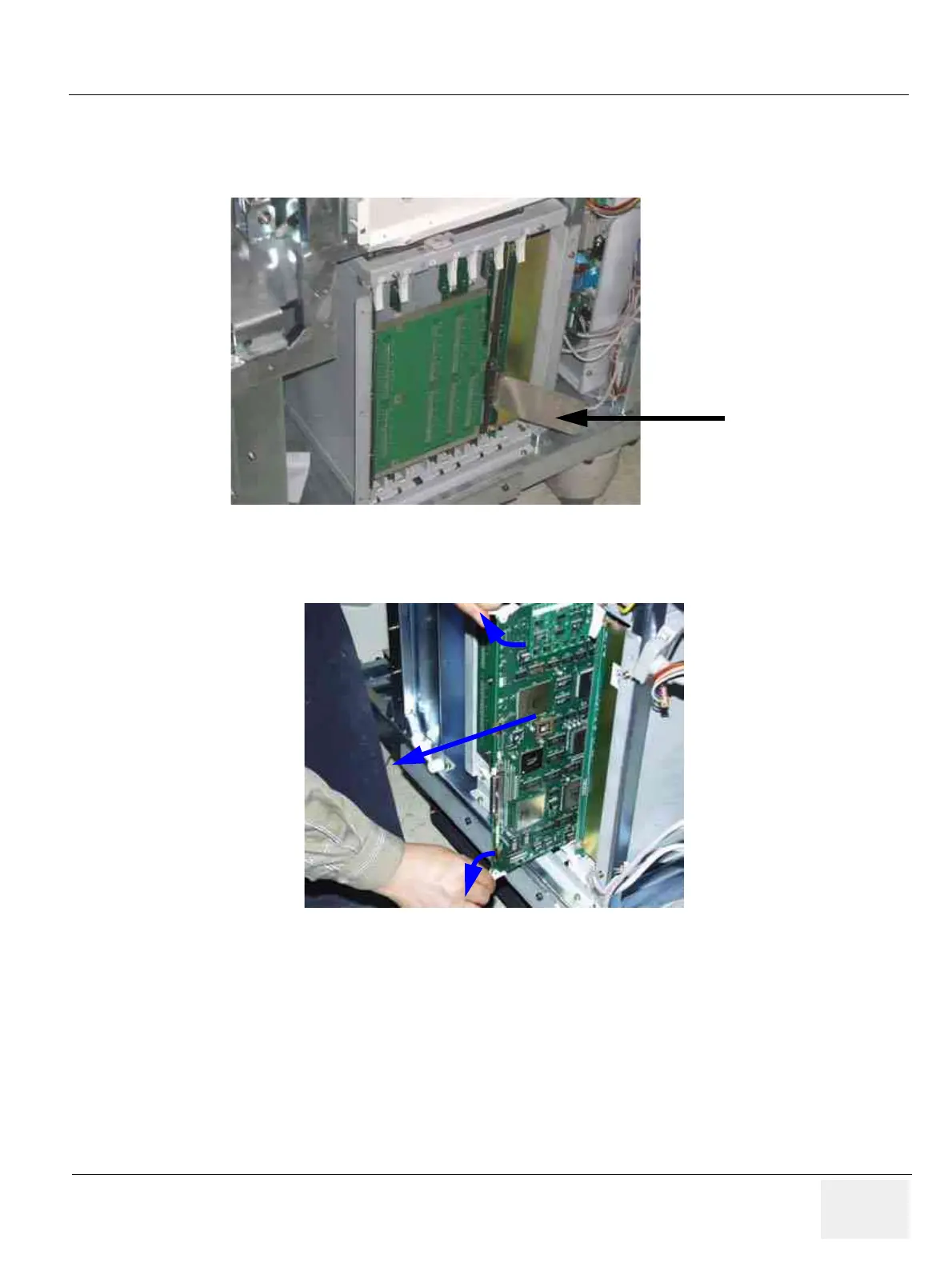

Figure 8-95 Disconnecting Cable
Figure 8-96 Pulling Out the Board.
SIG Board
(1)
(1)
(1)
(2)
