Chapter 8 Replacement Procedures 8-109
8-8-1-6 BEP Cable Connection With Console ( In case of change to BTO5 BEP3 FRU on BTO5 SYSTEM
) (cont’d)
5.) Connect the LCD Connector to BEP.
6.) Connect LI, LO, MI, ETHERNET Connector to Sound/LAN Port on BEP.

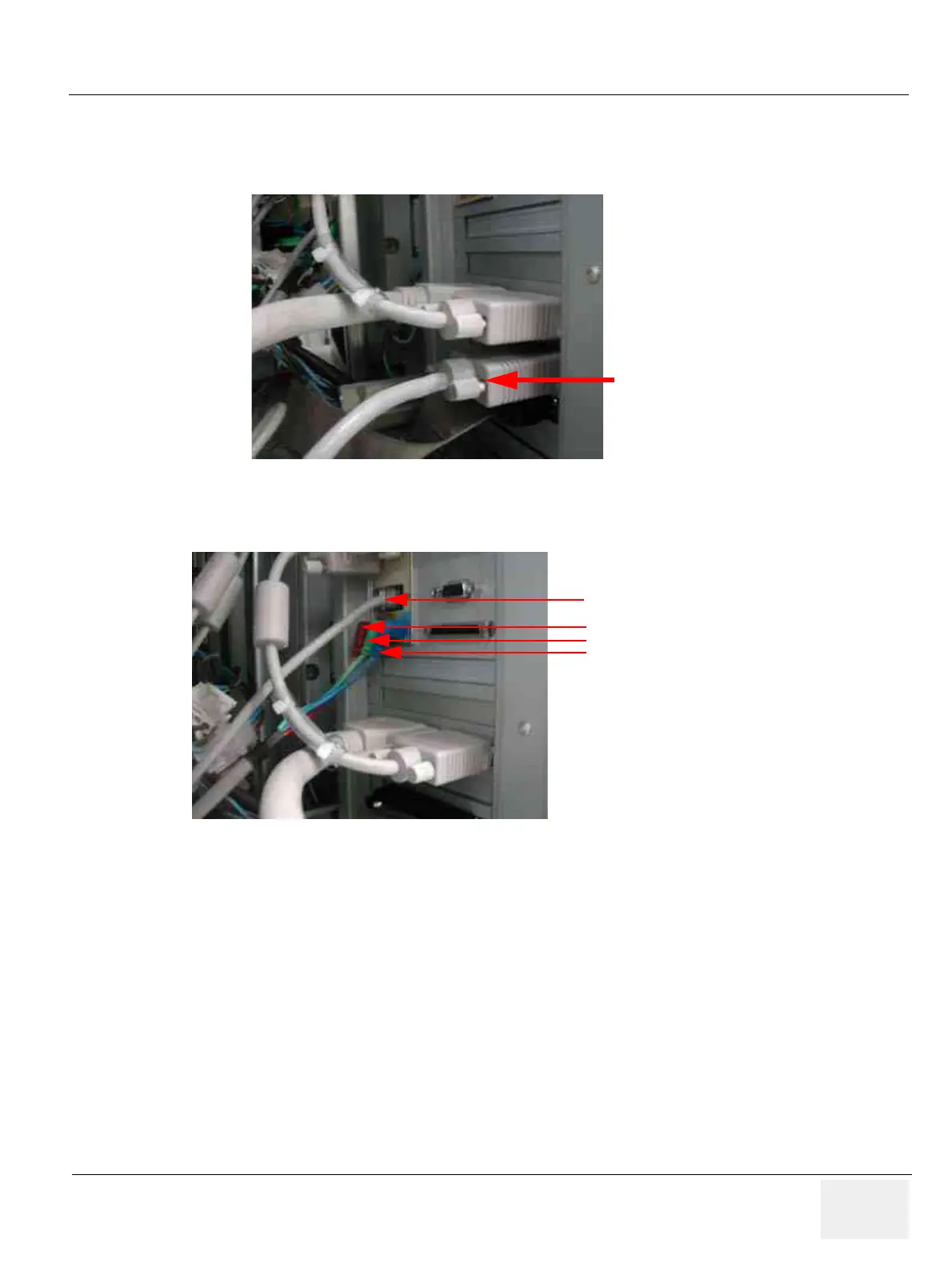

Figure 1-113 LCD cable connection
Figure 1-114 Connecting Cables
LCD connector
Ethernet Cable
MI (MIC : Red) cable
LO (Line Out : Green) Cable
LI (Line In : Blue) Cable
