8-108 Section 8-8 - PC Block
8-8-1-6 BEP Cable Connection With Console ( In case of change to BTO5 BEP3 FRU on BTO5 SYSTEM )
1.) Push the BEP Assy into The System and then Connect PCI Cable.
2.) Check the PCI cable is arranged without short before connecting PCI cable to BEP.
3.) Connect the PCI cable to the BEP assy
4.) Connect the J2 Cable connector to the BEP.

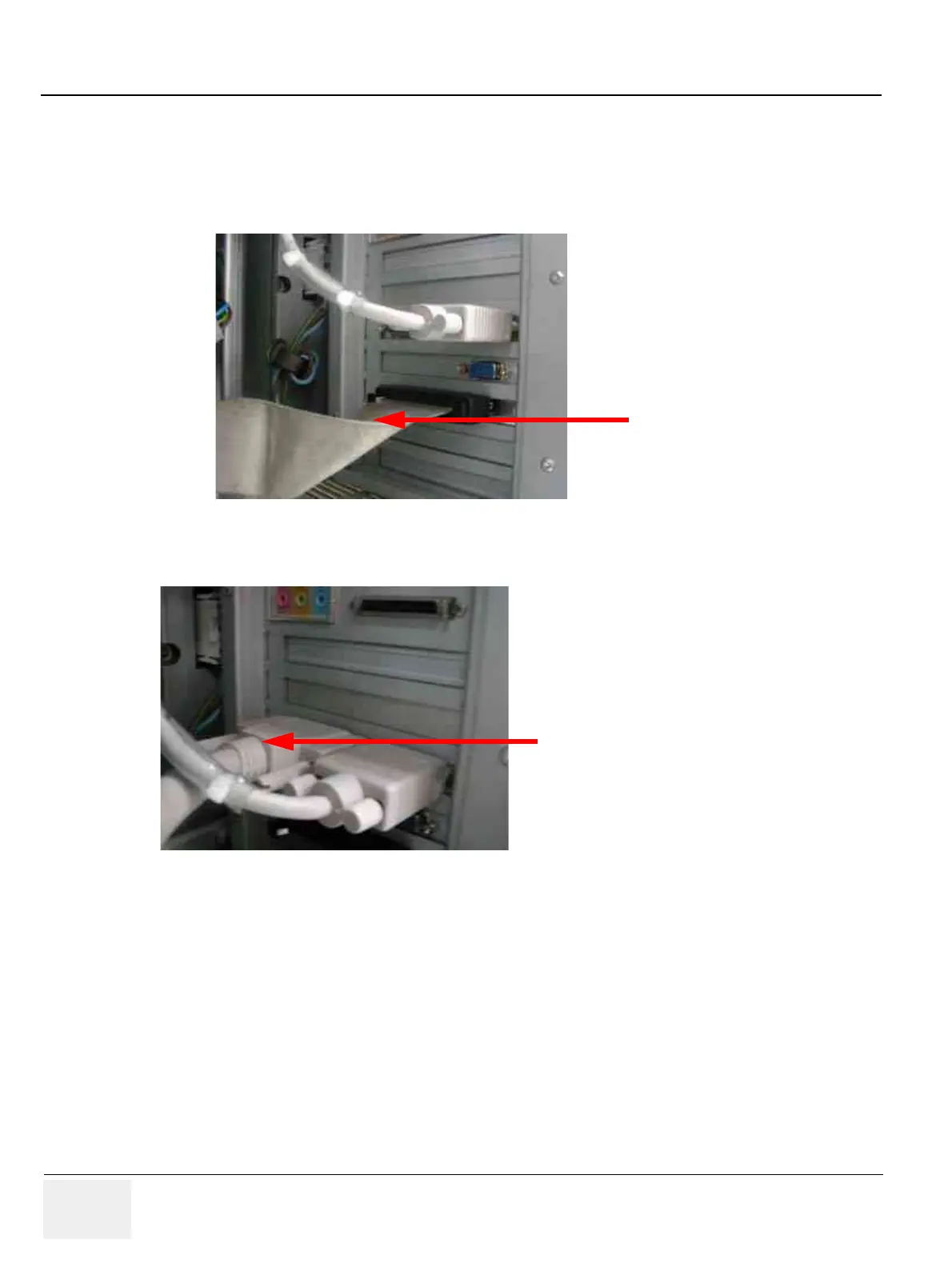

Figure 8-111 PCI cable connection
Figure 1-112 J2 cable connection
PCI Cable
J2 cable connector
