Chapter 8 Replace
ment Procedures
8-107
8-8-1-5 BEP Cable Connection with Console( In case of change BEP 1 into BEP2 or
BEP3)
(cont’d)

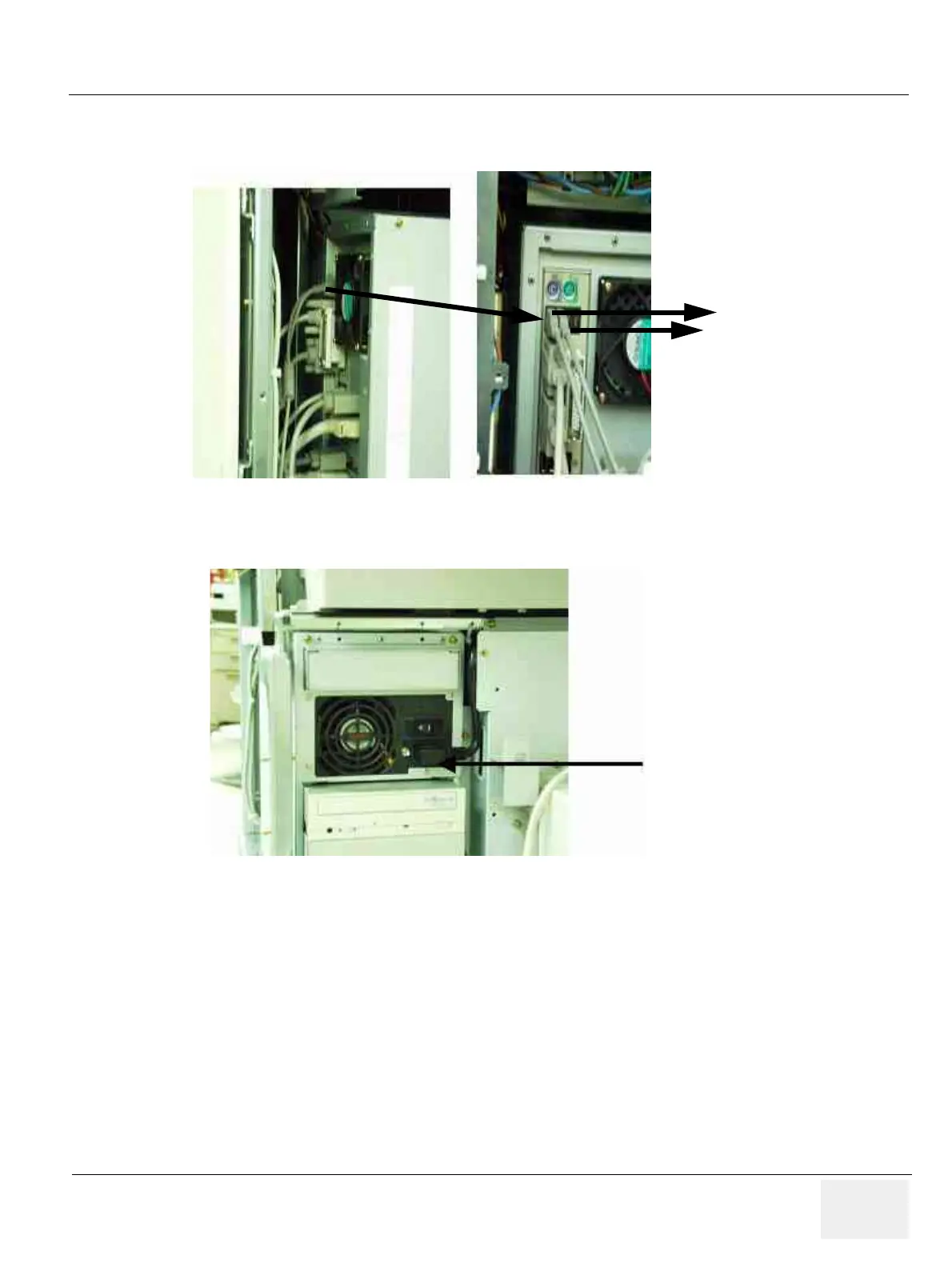

11.)
Connection Keyboard, Printer
connector to USB Port on
BEP.
12.)
Connect ATX Power to
BEP.
Figure 1-109 Keyboard, Printer conn
ector
Figure 1-1
10 A
TX Power cable connector
USB Port
Keyboard
Printer
ATX Power cable
302
304
