Chapter 8 Replacement Procedures 8-157
8-9-2-4 Removal Procedure (cont’d)
4.) Unscrew four (4) screws (12-15) and disconnect twenty (20) connectors from the front side of the
LV unit using long-nose gripper. Refer to Figure 8-186.
5.) Remove the LV unit.
6.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-9-2-5 Mounting Procedure
Install the new parts in the reverse order of removal.

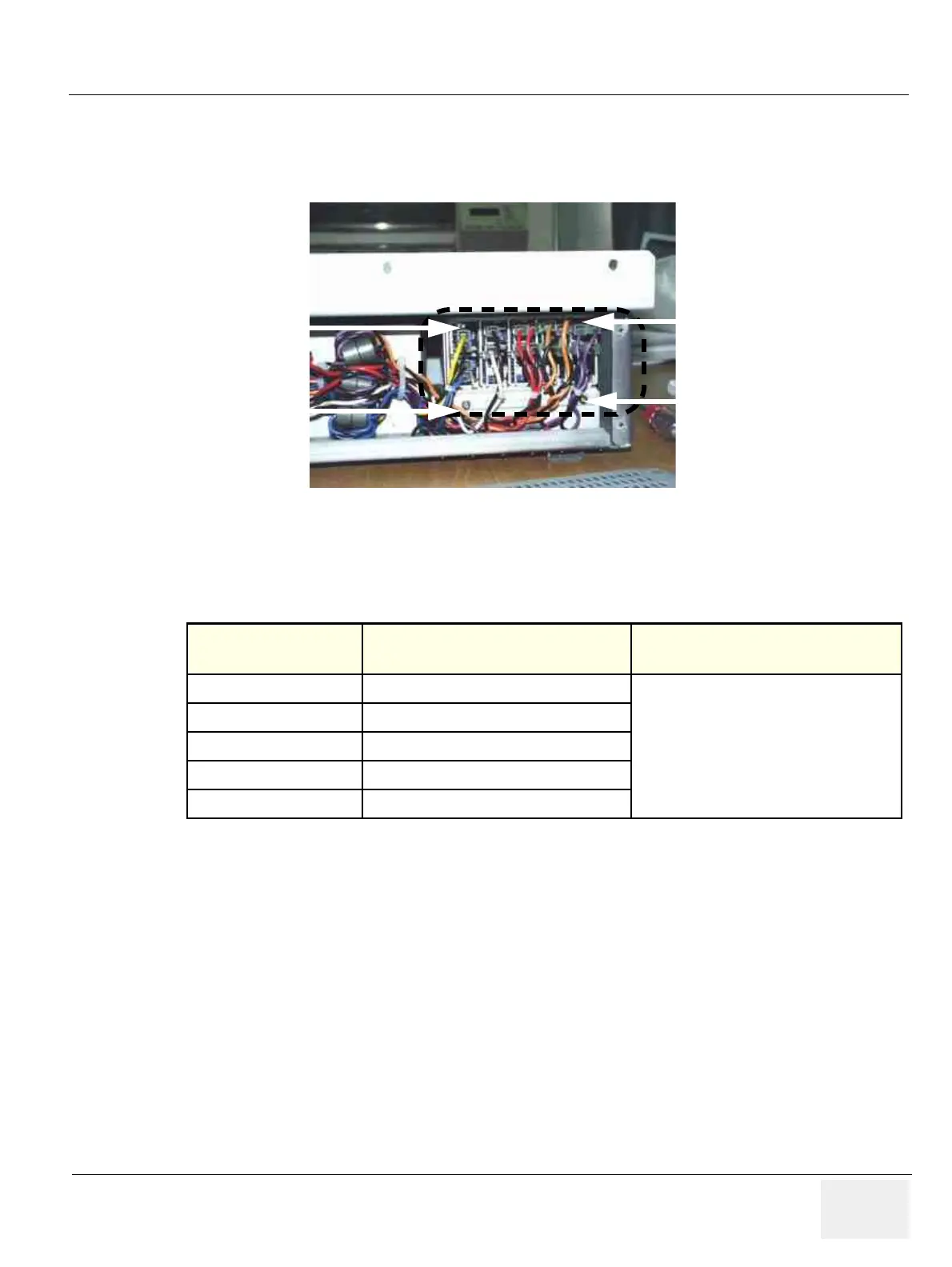

Figure 8-186 Unscrew 4 screws and disconnect 20 connectors
Table 8-51 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-9-2. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-9-16
LV Unit function check procedure
Section 4-3-4
System B/M-Mode Checks
Section 4-3-5
System CFM and PWD Checks
RIGHT SIDE VIEW
(12)
(13)
(14)
(15
