GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-158 Section 8-9 - Power Block
8-9-3 JPC Assy
Purpose: This is a description on how to remove and replace the JPC Assy.
8-9-3-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-9-3-2 Needed Manpower
• 1 person, 15 minutes + travel
8-9-3-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-9-3-4 Removal Procedure
1.) Unscrew nine (9) hexagon screws (1-9) to remove the AC Power Top cover.
2.) Unscrew five (5) screws (10-14).
CAUTION
Do not wear the ESD wrist strap when you remove a part of power supply unit. Turn OFF power
and unplug the power cord before removing a part of power supply unit. However be sure to turn
off power and wear the strap before you remove a circuit boards.

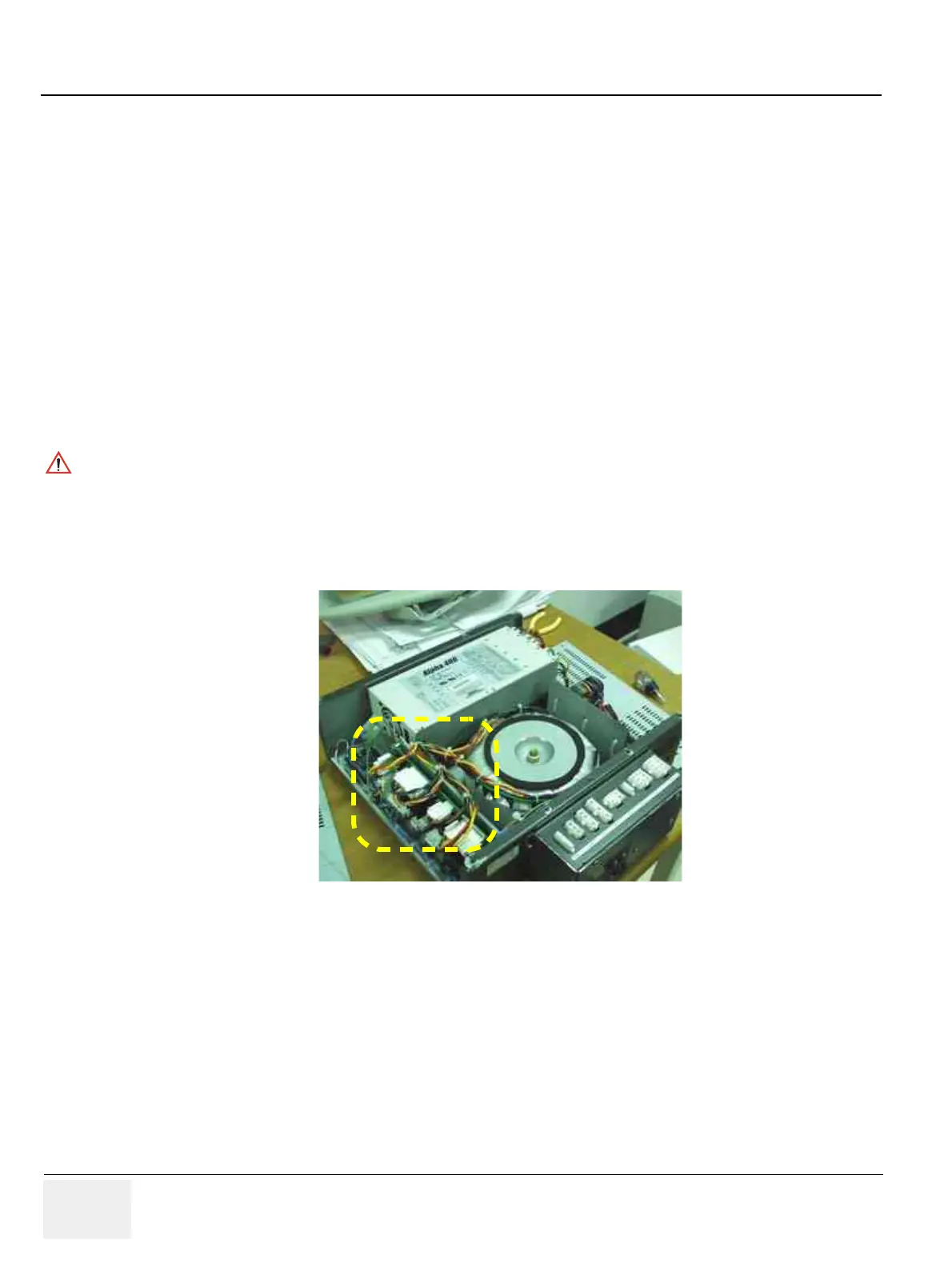

Figure 8-187 JPC Assy
JPC Assy
To Next Page
