GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-159
8-9-3-4 Removal Procedure (cont’d)
3.) Disconnect all the connectors connected in the JPC Assy. Refer to Figure 8-188.
4.) Remove the JPC Assy.
5.) Perform the following functional tests. If all are successful, include the debrief script provided below.

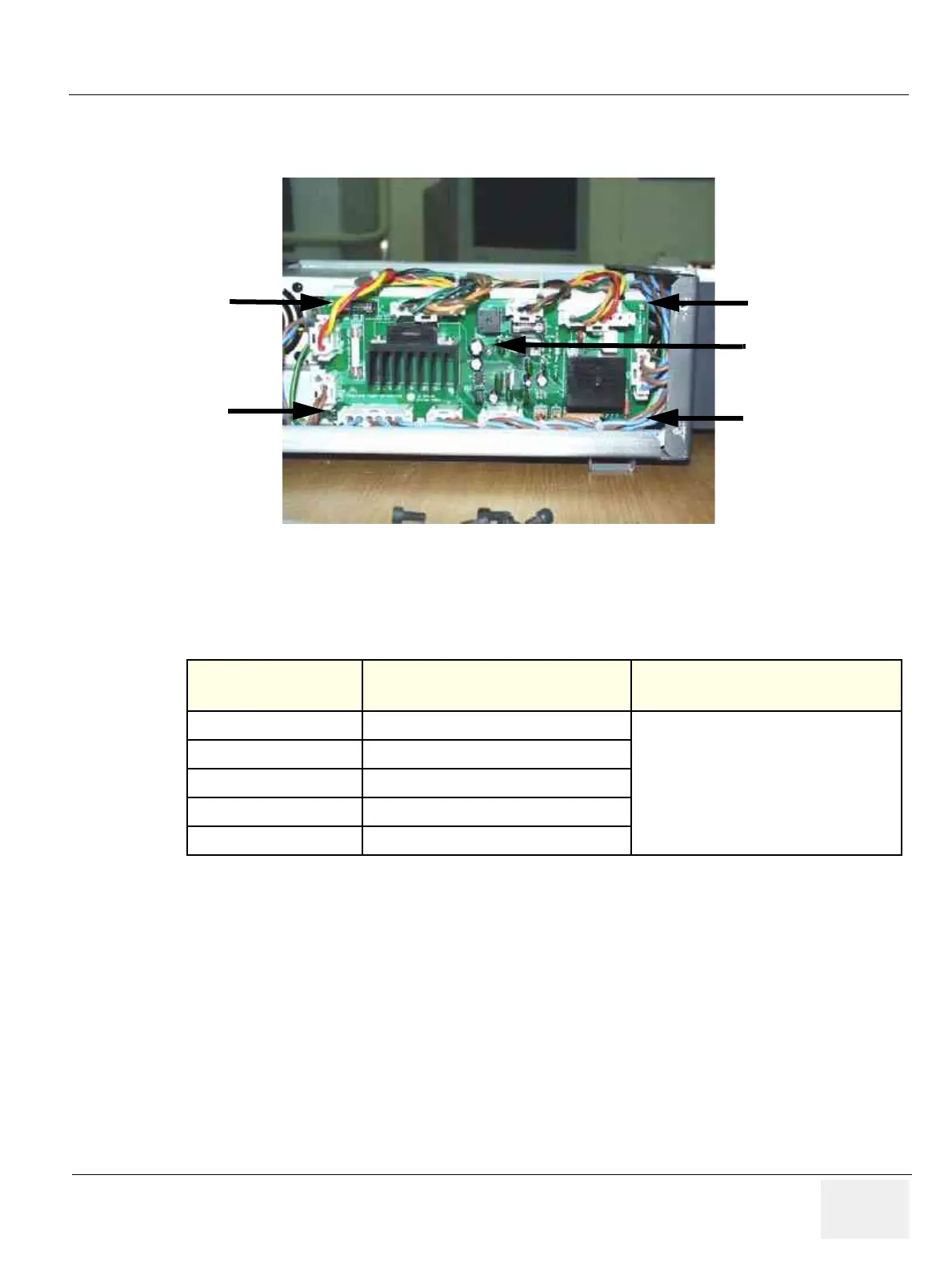

Figure 8-188 Disconnecting all connectors
Table 8-52 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-9-3. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-9-17
JPC function check procedure
Section 4-3-4
System B/M-Mode Checks
Section 4-3-5
System CFM and PWD Checks
(10)
(11)
(12)
(13)
(14)
J3
J6
To Next Page
