8-162 Section 8-9 - Power Block
8-9-4-4 Removal Procedure (cont’d)
6.) Unscrew four (4) ground screws (5-8). Refer to Figure 8-191.
7.) Unscrew one nut in the Center top of the Transformer. Refer to Figure 8-192.
8.) Remove the Transformer Assy.
9.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-9-4-5 Mounting Procedure
Install the new parts in the reverse order of removal.

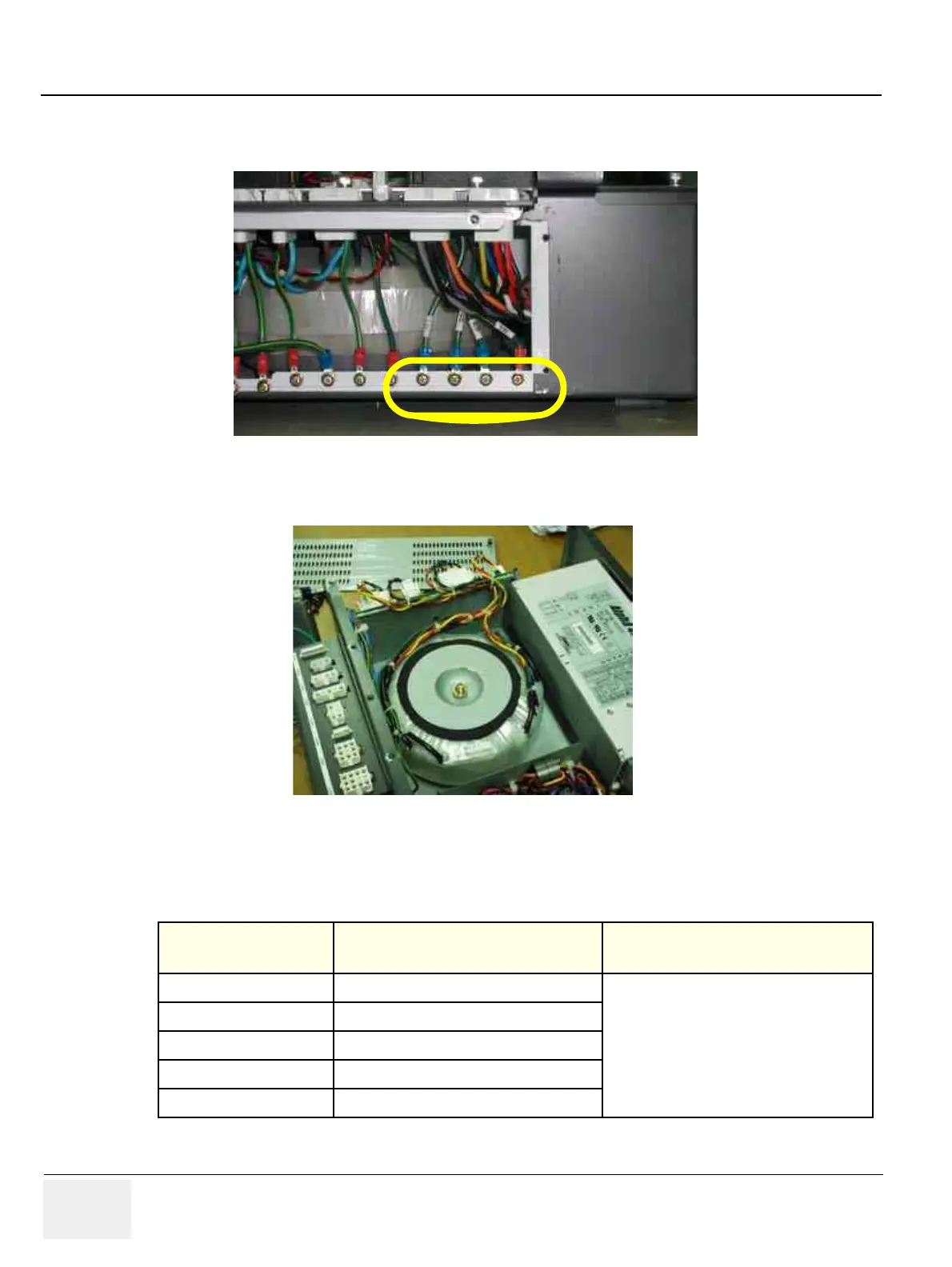

Figure 8-191 Unscrew 4 screws
Figure 8-192 Removing the Transformer
Table 8-53 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-9-4. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-9-18
Transformer function check procedure
Section 4-3-4
System B/M-Mode Checks
Section 4-3-5
System CFM and PWD Checks
(5) (6)
(7) (8)
