GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-176 Section 8-10 - Software Loading Procedure
8-10-5-5 Image Management Guide (cont’d)
6.) The progress bar appears as the copy is taking place. Once transfer completed, the exported
patient list will be shown as Figure 8-210.
7.) Press F3 to eject the media. Specify that you want to finalize the CD-ROM.
Importing Data
To import an exam(s) to another Ultrasound system:
1.) At the other Ultrasound system, insert the MOD or CD-ROM.
2.) Press Patient. Press Exam Data Transfer (located at the upper, left-hand corner of the Patient
menu)..
3.) Select Import task Button.

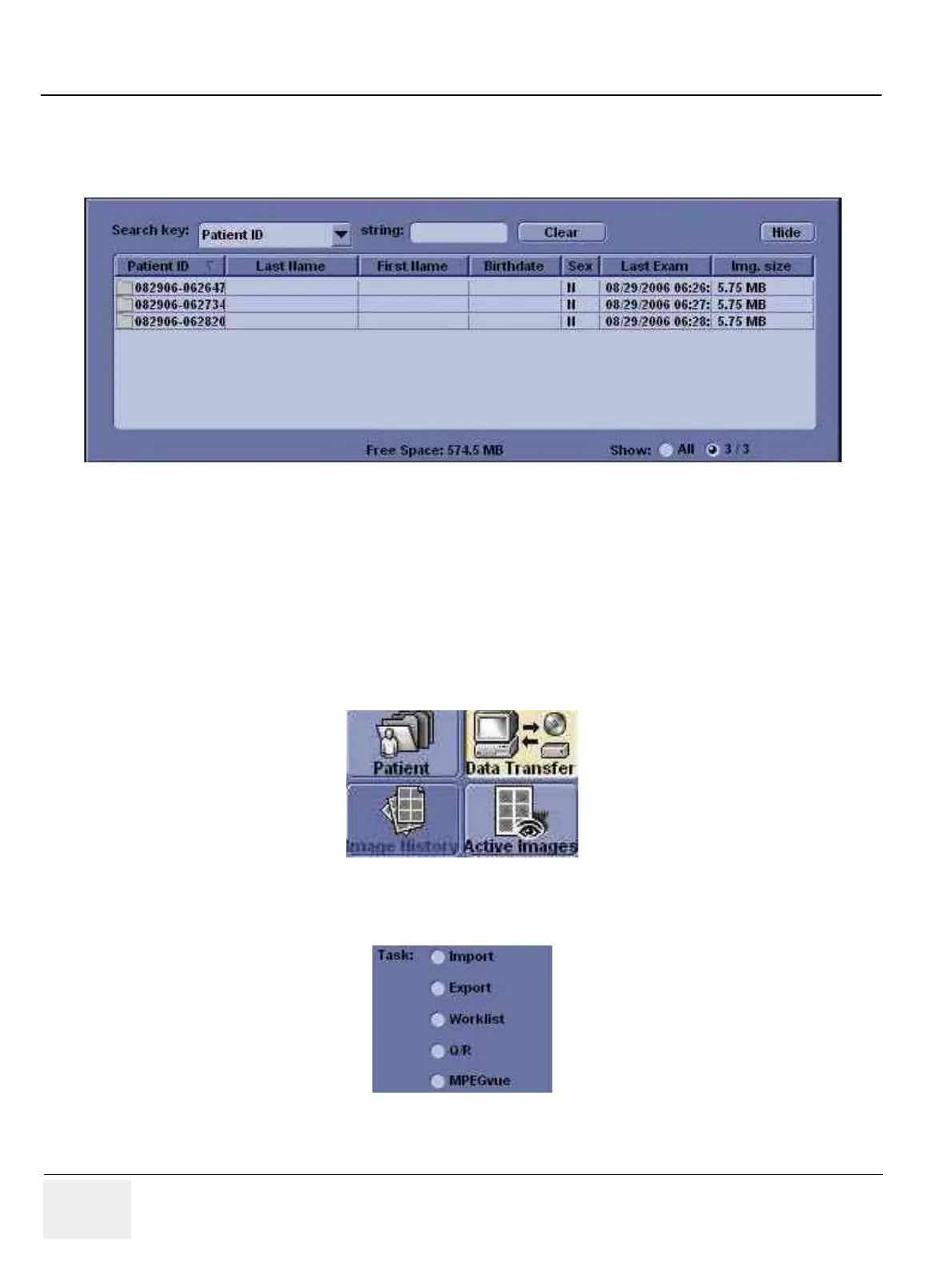

Figure 8-210 Destination Section of Patient Screen
Figure 8-211 Exam Data Trnasfer
Figure 8-212 Task button
