GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-177
8-10-5-5 Image Management Guide (cont’d)

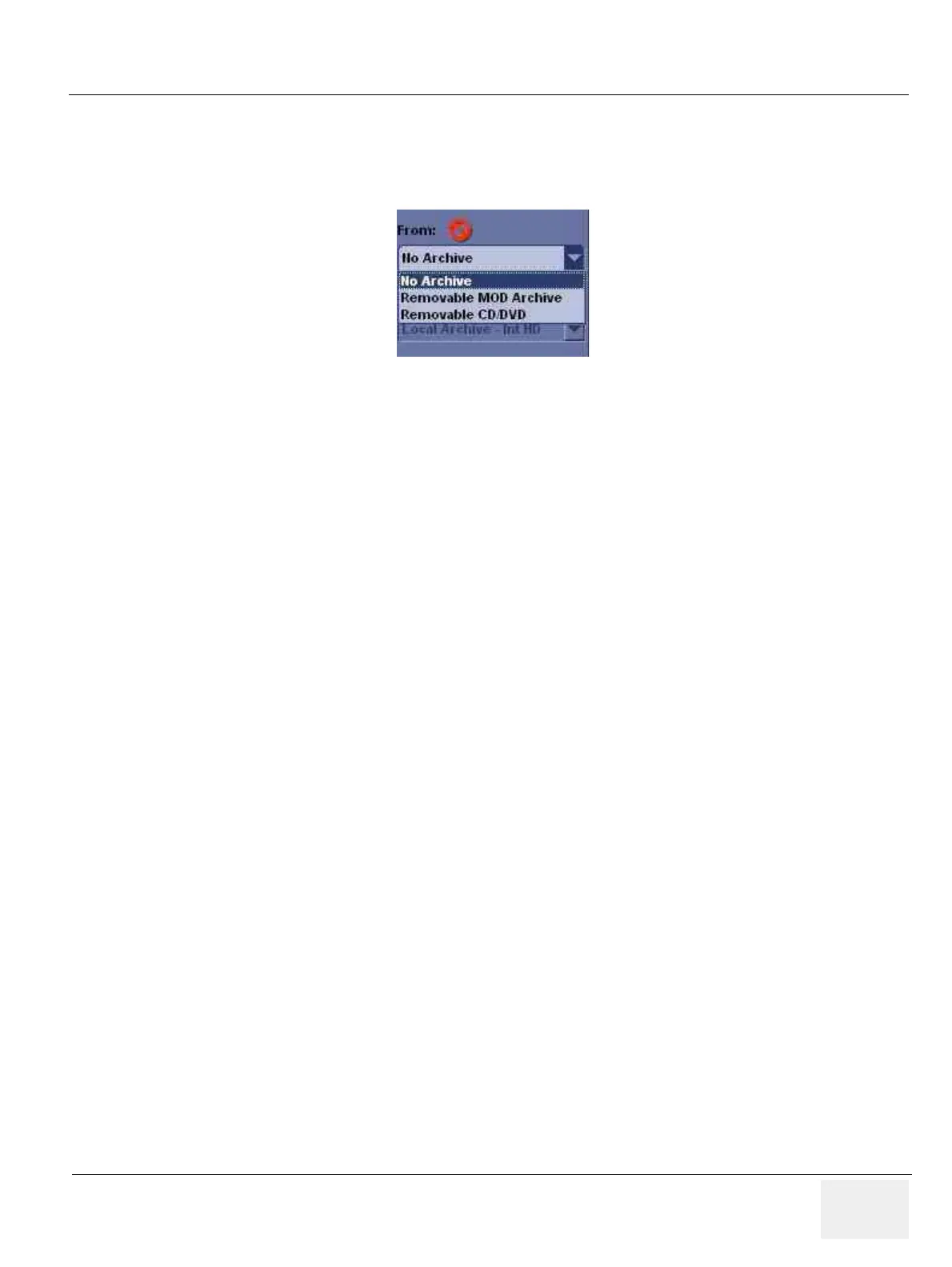

4.) The [TO] combo box is not active. It displays Local Archive. The [FROM] combo box is active.
Select the type of removable media MOD or CD Rom. Then please wait until the patient list is
visible.
5.) The Patient menu just shows the patients available for import from the removable media you
just loaded onto the system.
6.) Select the patients to be imported.
7.) Once you have selected all of the patients to import, press Transfer Button as shown in Figure
8-69 on page 8-119 from the Patient Menu.
8.) Please wait for the patient information to be copied to this Ultrasound system. Progress bar
appears while the import is taking place.
Figure 8-213
