4-26 Section 4-7 - Keyboard Function Checks
4-7-1 Main Keyboard Assy validation (cont’d)
6.) Write the 'scfpapitest.exe' on the command prompt and press 'Enter' button to pop up the
scfpapitest program.
7.) Press the keyboard button and rotate rotary button. When you press or rotary keys, Log dialog box
displays the key log. Button name and displaying log name is like the table.

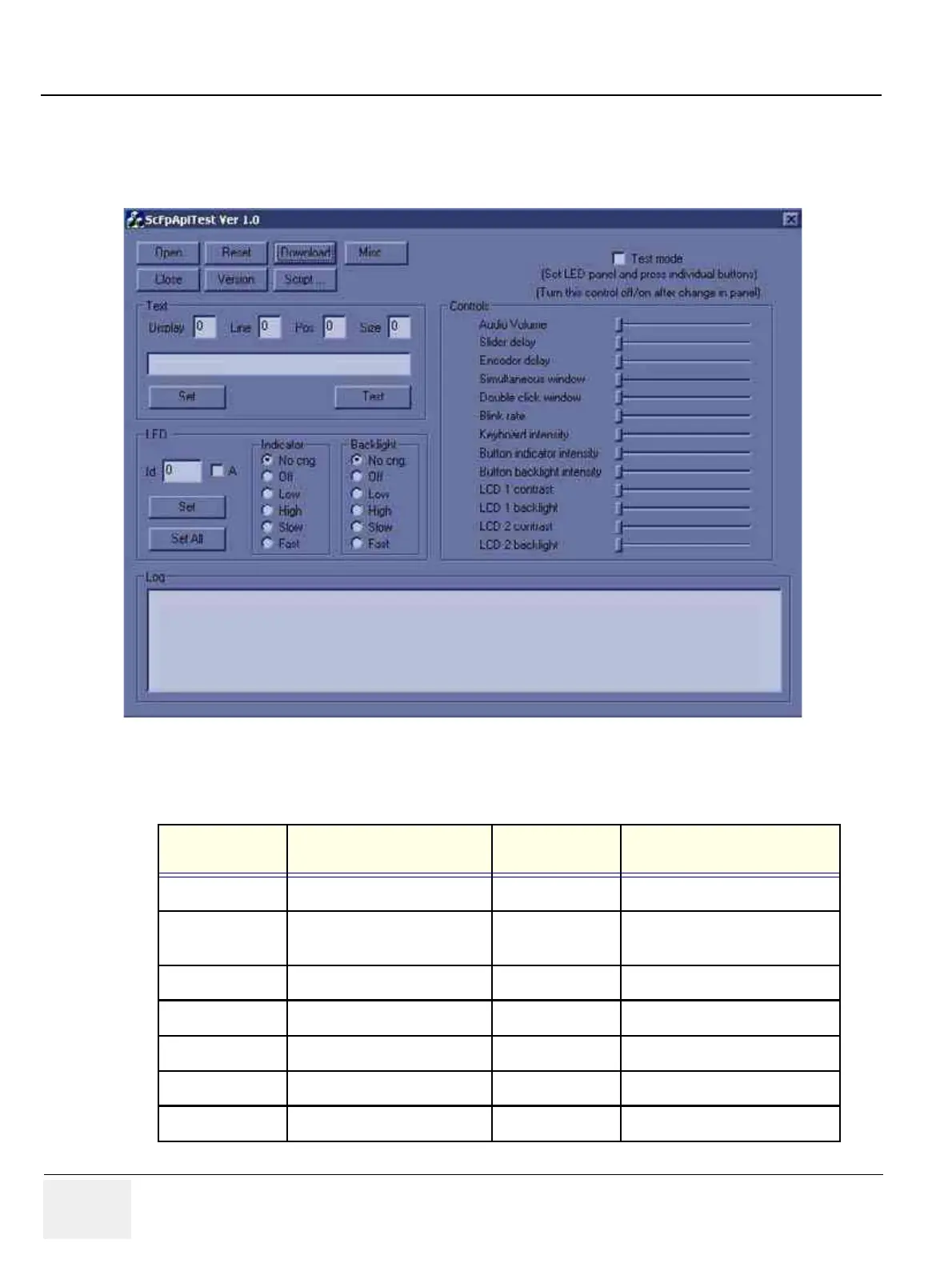

Figure 4-24 scfpapitest program
Button or
Rotary Name
The Name displayed in Log
Button or
Rotary Name
The Name displayed in Log
Patient New Patient Button B pause B Pause Button
Record
External Output or VCR
button
Depth (Button) Depth PushEncoder Button
Userdefine 1 Userdefine 1 Button Depth (Rotary) Depth PushEncoder Rotary
Userdefine 2 Userdefine 2 Button B (Button) B PushEncoder Button
Userdefine 3 Userdefine 3 Button B (Rotary) B PushEncoder Rotary
3D 3D Button CF (Button) CFM PushEncoder Button
Userdefine 4 Userdefine 4 Button CF (Rotary) CFM PushEncoder Rotary
Table 4-8 Button and Rotary table
