GE Power Quality Meter Series User Manual

2-6 PQM Power Quality Meter GE Power Management
2.2 ELECTRICAL 2 INSTALLATION
2

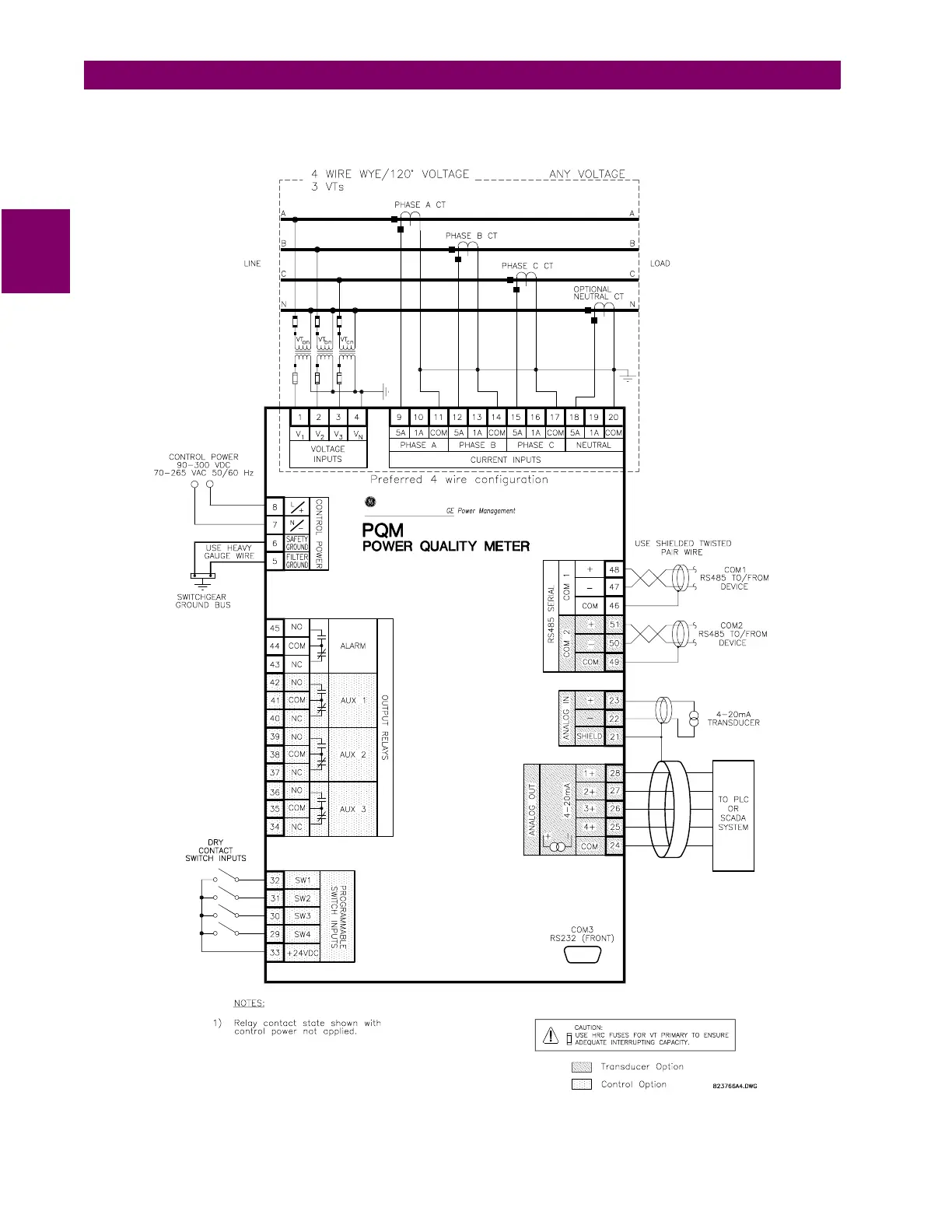

This wiring diagram shows the typical 4-wire wye connection which will cover any voltage range. Select the
S2 SYSTEM SETUP \ CURRENT/VOLTAGE CONFIGURATION \ VT WIRING: 4 WIRE WYE (3 VTs)
setpoint.
Figure 2–4: WIRING DIAGRAM 4-WIRE WYE (3 VTs)
