om 5184516-100 Rev. 5 7-30

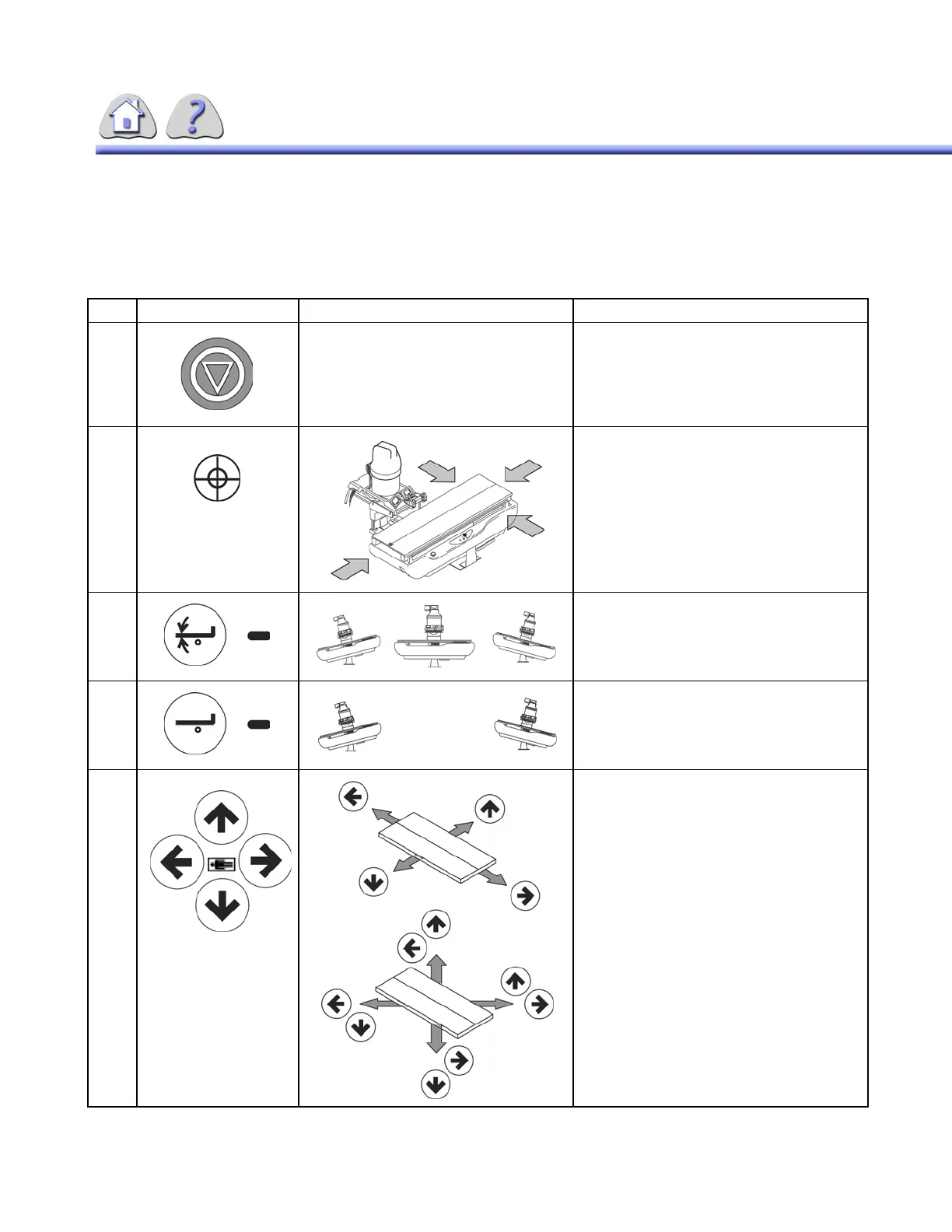

2-6Precision 500D Table Operator Controls and Displays
See ILLUSTRATION 7-17 and TABLE 7-8.
TABLE 7-8
PRECISION 500D TABLE OPERATOR CONTROLS AND DISPLAYS
Item Operator Control Motion Description
1 Emergency STOP Button.
Press to turn OFF table power.
Turn and release button to restore table
power.
2 Press to move table top to center position.
3 Press to stop table tilt motion at the horizon-
tal position.
Light indicates HORIZ STOP is active.
4 Press to allow table to tilt through the hori-
zontal position.
Light indicates HORIZ STOP OFF is active.
5 Press individual button to drive table top in
desired direction:
head-to-foot
front-to-rear
Simultaneously press two-button combina-
tions to drive table top in desired oblique
direction.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
