om 5184516-100 Rev. 5 9-5

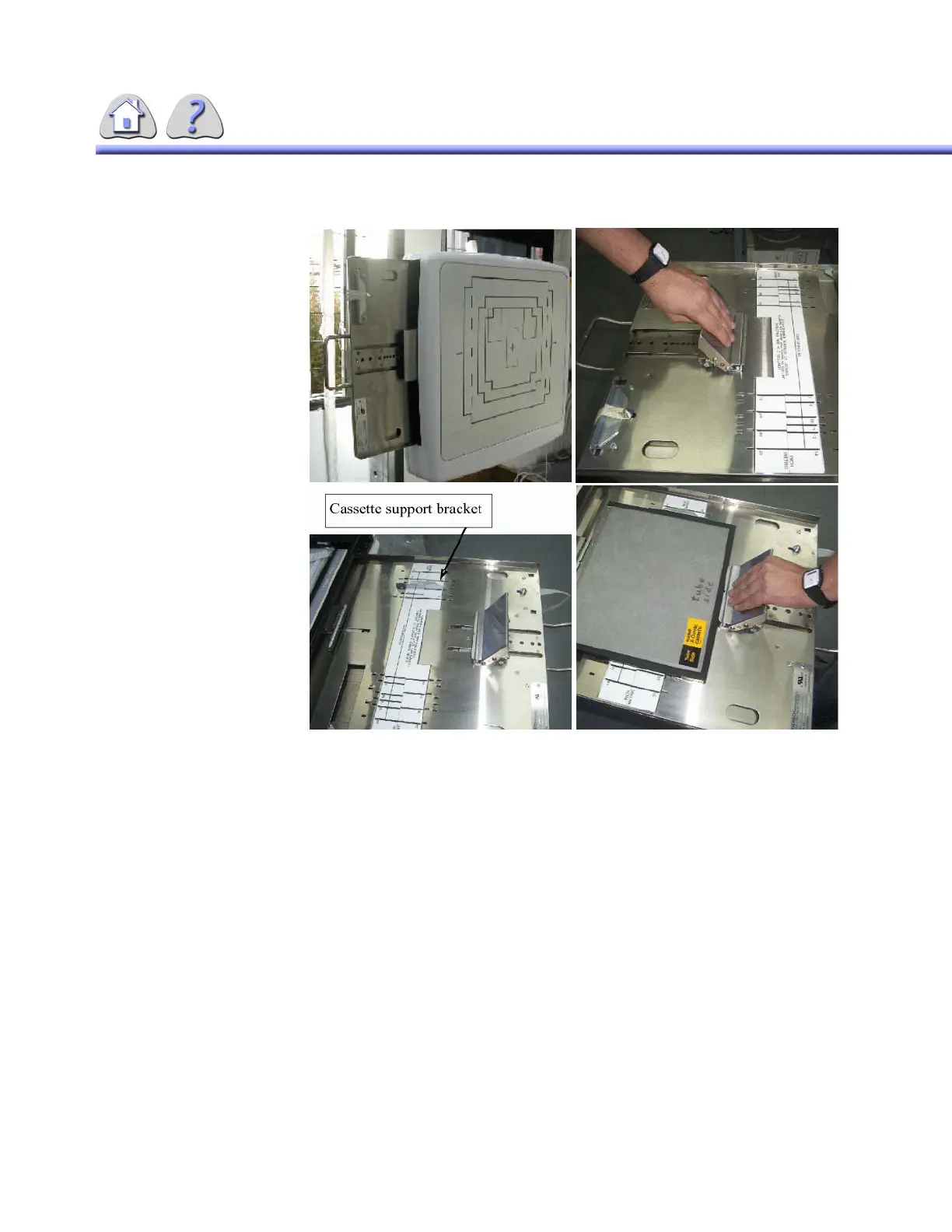

ILLUSTRATION 9-3
Cassette Loading
Procedure (See ILLUSTRATION 9-3)
1. Extract the cassette tray pulling by its handle.
2.Open cassette-clamp locking assembly. Spread out and separate the clamps.
3.Insert the cassette support bracket into the appropriate holes.
4.Insert the cassette between the cassette clamps, resting it on the cassette sup-
port bracket, Reposition the clamps against the cassette and close the cas-
sette-clamp locking assembly.
5.Insert the cassette tray into the bucky tray slot.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
