om 5184516-100 Rev. 5 B-5

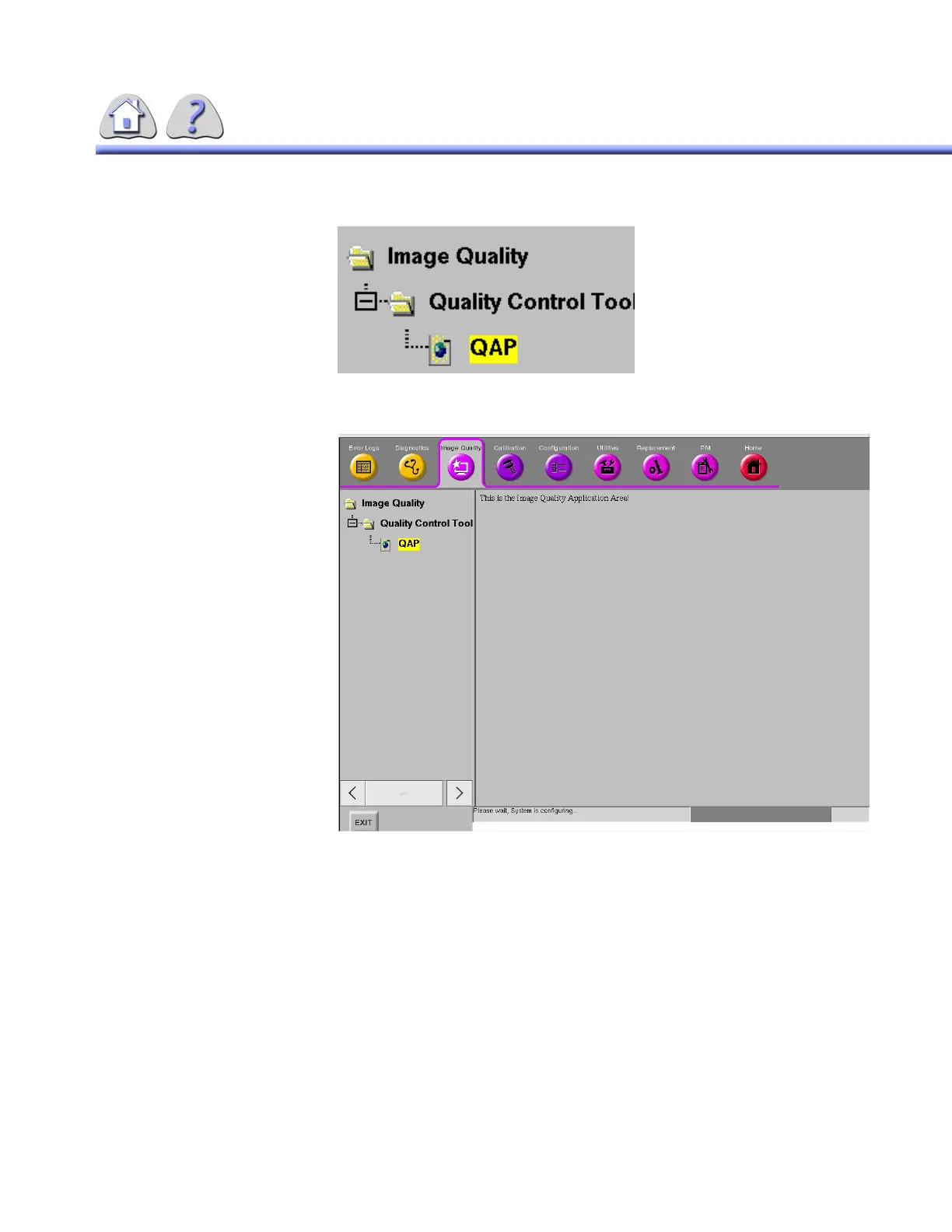

ILLUSTRATION B-3
QAP SELECTION
6. The Image Quality screen will appear.
The QAP application has 3 steps:
Step 1: Flat field, low dose (fluoroscopy) image acquisition
Step 2: Flat field, normal dose (digital record) image acquisition
Step 3: QAP Phantom, normal dose (digital record) image acquisition
NOTE: Make sure the default Horizontal and Vertical Settings are restored before starting
QAP unit.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
